Husqvarna 9177A89 (1998) Tractor

Model: 9177A89 (1998)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE-BRIGGS AND STRATTON

...
...
1
CYLINDER ASSEMBLY HUS-690156
...
2
P/N CONFLICT - CHECK WITH SUPPLIER HUS-399265
...
3
SEAL, OIL HUS-391086
...
4
BASE, ENGINE HUS-494238
...
5
HEAD, CYLINDER HUS-690188
...
6
WASHER, GOVERNOR LEVER HUS-94927
...
7
GASKET, CYLINDER HEAD HUS-273763
...
8
BREATHER ASSY HUS-495735
...
9
GASKET, VALVE COVER HUS-27803
...
10
SCREW, STEMS HUS-94621
...
11
TUBE, BREATHER HUS-281246
...
12
GASKET, CRANKCASE COVER 1/64" HUS-271916
...
12
GASKET, CRANKCASE COVER .005" HUS-271997
...
13
SCREW, CYLINDER HEAD HUS-94728
...
15
PLUG, OIL DRAIN HUS-94239
...
16
CRANKSHAFT HUS-690136
...
20
SEAL, OIL HUS-291675
...
22
SCREW HUS-95187
...
23
FLYWHEEL HUS-690222
...
24
KEY, FLYWHEEL HUS-222698
...
25
PISTON, ASSEMBLY HUS-692271
...
25
PISTON ASSEMBLY HUS-692272
...
25
PISTON ASSEMBLY HUS-692273
...
25
PISTON ASSEMBLY HUS-692274
...
26
RING SET, PISTON HUS-690162
...
26
RING SET, PISTON HUS-690164
...
26
RING SET, PISTON HUS-690166
...
26
RING SET, PISTON HUS-690168
...
27
LOCK, PISTON PIN HUS-263129
...
28
PIN, PISTON, STD SIZE HUS-498319
...
28
PIN ASSY., PISTON, .005" OVERSIZE HUS-498320
...
29
ROD ASSEMBLY, CONNECTING HUS-499468
...
29
ROD ASSEMBLY, CONNECTING HUS-499940
...
32
SCREW HUS-95190
...
33
VALVE, EXHAUST HUS-495856
...
34
VALVE, INTAKE HUS-495857
...
35
SPRING, VALVE HUS-262811
...
40
RETAINER, VALVE SPRING HUS-224641
...
43
GOV./OIL SLINGER HUS-40815
...
45
TAPPET, VALVE HUS-262411
...
46
GEAR, CAM HUS-496884
...
50
MANIFOLD, INTAKE HUS-690193
...
51
GASKET, INTAKE HUS-281735
...
51A
GASKET, INTAKE HUS-273650
...
53
STUD, CARBURETOR MOUNTING HUS-94637
...
73
SCREEN, ROTATING HUS-494439
...
75
WASHER, SPRING HUS-225136
...
78
SCREW, SEMS HUS-94821
...
87
SEAL, GOVERNOR HUS-491323
...
93
BUSHING, THROTTLE SHAFT HUS-281346
...
94
VALVE, IDLE, ADJUSTMENT HUS-498030
...
95
SCREW, THROTTLE HUS-94098
...
98
SCREW, IDLE SPEED HUS-495800
...
104
PIN, FLOAT HINGE HUS-231789
...
105
VALVE ASSY, INLET NEEDLE HUS-231855
...
106
INLET VALVE SEAT HUS-231854
...
108
VALVE, CHOKE HUS-224558
...
108A
VALVE, CHOKE HUS-224540
...
110
WASHER, FLAT HUS-225137
...
116
SEAL, OIL FILLER CAP HUS-270920
...
117
JET, MAIN (STANDARD) HUS-232118
...
117
JET, MAIN (HIGH ALTITUDE) HUS-232119
...
121
CARBURETOR OVERHAUL KIT HUS-690191
...
123
SCREW HUS-95160
...
125
CARBURETOR HUS-690194
...
130
VALVE, THROTTLE HUS-224539
...
131
THROTTLE SHAFT KIT HUS-493379
...
133
FLOAT, CARBURETOR HUS-494381
...
137
GASKET, FLOAT BOWL HUS-281165
...
141
SHAFT HUS-495097
...
141A
SHAFT & LEVER, CHOKE HUS-495931
...
142
NOZZLE, CARBURETOR HUS-232117
...
146
KEY, TIMING GEAR HUS-94196
...
163
P/N CONFLICT - CHECK WITH SUPPLIER HUS-281051
...
171
P/N CONFLICT - CHECK WITH SUPPLIER HUS-281051
...
186
ELBOW, FUEL PIPE HUS-493496
...
187
LINE, FUEL HUS-298049
...
188
SCREW, SEMS 3/4" HUS-94627
...
192
SCREW ASSY, ROCKER ARM HUS-492160
...
199
VALVE, SHUT-OFF HUS-494768
...
205
SCREW, HEX HEAD HUS-94903
...
205A
SCREW, HEX HEAD HUS-94073
...
209
SPRING, GOVERNOR HUS-260695
...
216
LINK, CHOKE HUS-262766
...
216A
LINK, CHOKE HUS-262766
...
222
PLATE, GOVERNOR CONTROL HUS-495611
...
224
SCREW HUS-95163
...
227
LEVER ASSY, GOVERNOR HUS-493935
...
232
SPRING, GOVERNOR LINK HUS-262785
...
238
CAP, VALVE HUS-262836
...
240
FILTER, FUEL HUS-394358
...
265
CLAMP HUS-221535
...
294
ADJUSTER, ROCKER ARM HUS-810104
...
304
HOUSING, BLOWER HUS-225511
...
304A
HOUSING, BLOWER, INNER, BLACK HUS-225017
...
305
SCREW HUS-94682
...
305A
SCREW, SEMS HUS-94822
...
306
SHIELD, CYLINDER HUS-225020
...
307
SCREW HUS-94930
...
309
MOTOR, STARTING, 12 VOLT HUS-497595
...
310
BOLT HUS-94003
...
311
BRUSH SET HUS-497608
...
333
ARMATURE, MAGNETO HUS-495859
...
334
SCREW, SEMS HUS-94731
...
337
PLUG, SPARK HUS-491055
...
354
LOCKNUT, AIR CLEANER MOUNTING HUS-94010
...
355
WASHER, FLOAT BOWL SCREW HUS-281164
...
356
WIRE, STOP HUS-494705
...
358
GASKET SET HUS-690189
...
363
PULLER, FLYWHEEL HUS-19203
...
381
SCREW HUS-94863
...
383
WRENCH SPARK PLUG HUS-89838
...
461
SCREW HUS-94734
...
467
KNOB, AIR CLEANER HUS-493903
...
474
STATOR, ALTERNATOR, DUAL CIRCUIT HUS-393474
...
482
SCREW, SEMS HUS-93621
...
493
BRACKET, BLOWER HOUSING, FRONT HUS-224968
...
493A
BRACKET, BLOWER HOUSING, REAR HUS-224969
...
503
STRAP, STARTER HUS-806000
...
510
DRIVE, STARTER HUS-497606
...
523
CAP AND DIPSTICK, OIL FILLER HUS-495230
...
525
TUBE, OIL FILLER HUS-496113
...
529
SEAL, FILLER TUBE HUS-281370
...
535
CARTRIDGE, AIR CLEANER HUS-496894
...
544
ARMATURE, STARTER HUS-497603
...
552
BUSHING, GOVERNOR CRANK HUS-491986
...
562
BOLT, GOVENOR LEVEL HUS-94907
...
592
NUT, HEX HUS-231978
...
592A
NUT, HEX HUS-92278
...
601
CLAMP, FUEL LINE HUS-95162
...
614
COTTER, HAIR PIN HUS-93306
...
615
RETAINER HUS-263080
...
616
CRANK, GOVERNOR, 1/4" DIAMETER HUS-495157
...
634
SEAL, SPRING ASSY. HUS-494453
...
634A
SEAL, SPRING ASSY. HUS-494455
...
635
ELBOW, SPARK PLUG HUS-280872
...
646
BRACE, AIR CLEANER HUS-224546
...
657
SCREW HUS-94905
...
663
SCREW, SELF-TAPPING HUS-94929
...
663A
SCREW, AIR CLEANER HUS-94704
...
668
SPACER, ROTATING SCREEN HUS-805402
...
689
SPRING, CHOKE HUS-262715
...
673
SCREW, SEMS HUS-94896
...
718
PIN, DOWEL HUS-230192
...
726
GEAR, RING HUS-399676
...
727
COVER, STARTER HUS-490324
...
728
SCREW, HEX HEAD HUS-94951
...
729
CLIP, WIRE HUS-281390
...
729A
RETAINER, WIRE HUS-225170
...
741
GEAR, TIMING HUS-262932
...
757
LINK, COUNTERWEIGHT HUS-213998
...
758
COUNTERWEIGHT HUS-499994
...
759
PIN, COUNTERWEIGHT HUS-230787
...
761
SCREW, COUNTERWEIGHT HUS-94593
...
783
GEAR, STARTER HUS-280104
...
789
WIRE ASSY HUS-497708
...
801
CAP, DRIVE HUS-497626
...
802
P/N CONFLICT - CHECK WITH SUPPLIER HUS-497607
...
803
HOUSING, STARTER HUS-497604
...
830
STUD, ROCKER ARM HUS-94555
...
847
P/N CONFLICT - CHECK WITH SUPPLIER HUS-496415
...
851
TERMINAL, IGNITION CABLE HUS-224110
...
868
SEAL, VALVE HUS-499236
...
871
BUSHING, GUIDE (INTAKE & EXHAUST) HUS-262835
...
875
BODY, AIR CLEANER HUS-495862
...
877
DIODE & CONNECTOR ASSY HUS-393456
...
878
HARNESS, ALTERNATOR HUS-393362
...
947
SOLENOID HUS-497672
...
967
ELEMENT, AIR CLEANER HUS-272403
...
968
COVER, AIR CLEANER HUS-281758
...
975
BOWL, FLOAT HUS-494933
...
977
GASKET SET, CARBURETOR HUS-690192
...
987
SEAL, THROTTLE SHAFT HUS-281166
...
1005
FAN, FLYWHEEL HUS-281400
...
1006
RETAINER, FAN HUS-224413
...
1019
LABEL KIT HUS-690180
...
1022
GASKET, COVER HUS-272475
...
1023
COVER, ROCKER HUS-225521
...
1026
ROD, PUSH, INTAKE HUS-494432
...
1026A
ROD, PUSH, EXHAUST HUS-495136
...
1029
ARM, ROCKER HUS-224554
...
1033
VALVE, OVERHAUL KIT HUS-690190
...
1034
GUIDE ASSEMBLY, PUSH ROD HUS-495248
...
1036
LABEL KIT, EMISSION HUS-273807
...
1044
SCREW, SHOULDER, HEX HEAD HUS-94673
...
1058
OWNER'S MANUAL HUS-273686
...
1090
P/N CONFLICT - CHECK WITH SUPPLIER HUS-497605
...
1091
CAP, LIMITER HUS-281364

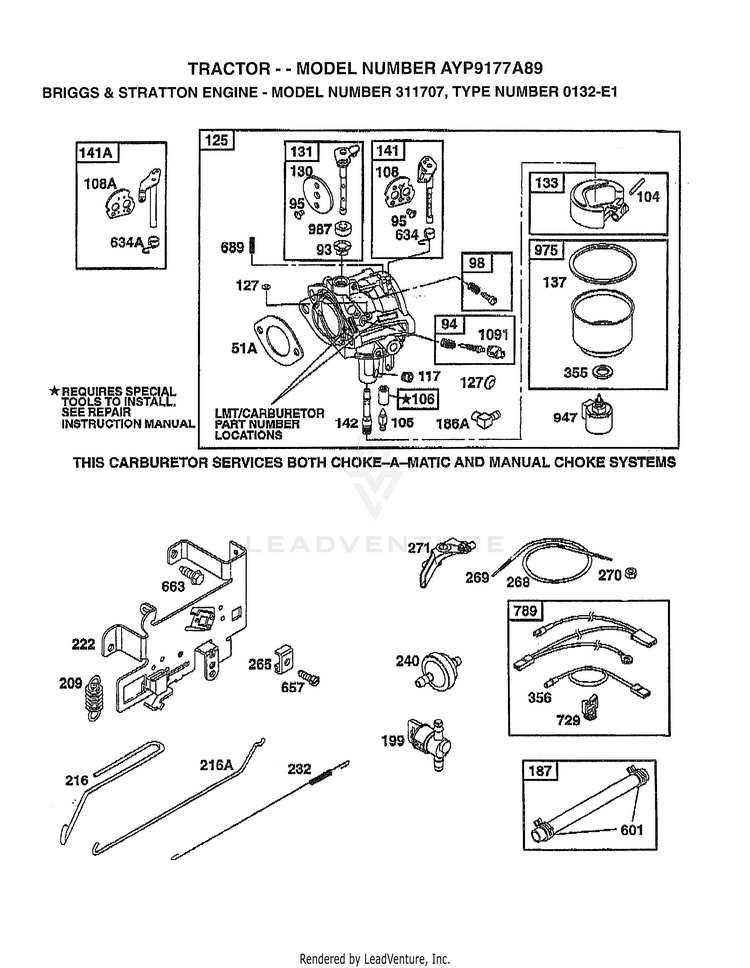

Schematic Image Zoomed
