Husqvarna 917.250510 (1999 & Before) Tractor

Model: 917.250510 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

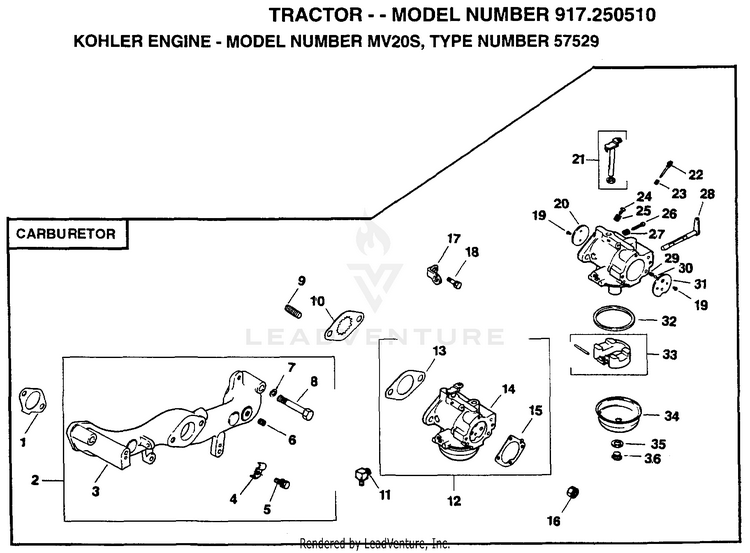

CARBURETOR

...
...
1
GASKET HUS-52-041-09
...
2
KIT HUS-52-755-91
...
3
MANIFOLD HUS-52-164-15
...
4
CLAMP HUS-235778
...
5
SCREW HUS-X-67-97
...
6
PLUG HUS-X-75-23
...
7
WASHER HUS-X-21-1
...
8
SCREW, 5/16-18X1-1/4 (4) HUS-X-6-29
...
9
STUD HUS-41-072-19
...
10
BAFFLE HUS-52-063-40
...
11
CONNECTOR HUS-25-155-02
...
12
KIT HUS-52-853-25
...
13
GASKET HUS-271030
...
14
CARB HUS-52-053-54
...
15
GASKET, AIR CLEANER ELBOW HUS-25-041-06
...
16
NUT HUS-X-77-2
...
17
STRAP HUS-232867
...
18
SCREW HUS-X-67-62
...
19
SCREW HUS-25-086-27
...
20
PLATE HUS-25-146-02
...
21
SHAFT HUS-52-144-24
...
22
NEEDLE HUS-25-368-01
...
23
SPRING HUS-25-089-02
...
24
SCREW HUS-25-086-26
...
25
SPRING HUS-25-089-04
...
26
NEEDLE HUS-25-368-03
...
27
SPRING HUS-25-089-02
...
28
LEVER HUS-52-090-13
...
29
SPRING HUS-25-089-03
...
30
BALL HUS-25-194-01
...
31
PLATE, CHOKE HUS-25-146-03
...
32
GASKET HUS-25-041-04
...
33
KIT HUS-25-757-09
...
34
BOWL, FUEL HUS-25-104-01
...
35
GASKET HUS-25-041-03
...
36
SCREW, BOWL RETAINER HUS-25-100-05
...
xx
GASKET HUS-271030
