Husqvarna 9149A89 (1998) Tractor

Model: 9149A89 (1998)

Back To Assemblies

Save Part Not Listed?
product name

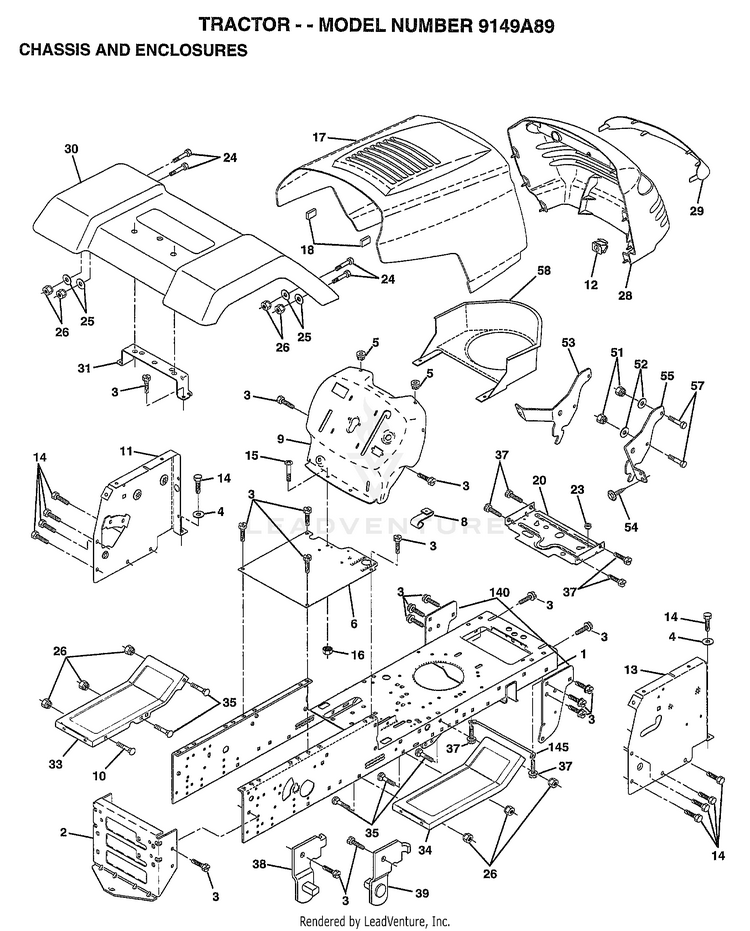

CHASSIS AND ENCLOSURES

...
...
1
CHASSIS HUS-160393
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
5
BUMPER-HOOD/DASH HUS-155272
...
6
SADDLE HUS-155923
...
8
CLIP.RETAINER HUS-155138
...
9
DASH SILKSCREEN HUS-161937X011
...
10
SUB= 72110608 HUS-72140608
...
11
"PANEL-DASH,LH" HUS-155927
...
12
CLIP.TINNERMAN HUS-145660
...
13
SUB= 169117X010 HUS-155934X010
...
14
SCREW LT HUS-17490608
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
HOOD.STEEL.ASSY HUS-159639X505
...
20
"PLATE-MTG,BATT/FU" HUS-156437
...
23
SUB= 532124028 HUS-124028X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILLE-MS428 HUS-157373
...
29
LENS GRILLE HUS-140273
...
30
FENDER.LT.W/SHIFT HUS-157583X505
...
31
BRKT FENDER HUS-136619
...
33
FOOTREST.LH.LT/GT HUS-145244X505
...
34
FOOTREST.RH.LT/GT HUS-145243X505
...
35
BOLT HUS-72110606
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
51
NUT HUS-73800400
...
52
WASHER HUS-19091416
...
53
BRACKET.GRILLE.LH HUS-144697
...
54
SCREW.HEX.WS.HD HUS-161464
...
55
BRACKET.GRILLE.RH HUS-144696
...
57
SUB= 74780414 HUS-74780412
...
58
AIR DUCT HUS-150127
...
71
SUB= 73690400 HUS-73680400
...
140
BRKT SUSPENSION HUS-158418
...
145
"ROD POVOT,CHASSIS" HUS-156524
...
xx
PLUG BUTTON T HUS-5479J
