product name

Husqvarna 9032PW (2008-02) Pressure Washer

Model: 9032PW (2008-02)

Save Part Not Listed?
product name

FRAME

...
...
26
NUT PUSH M HUS-532110452
...
186
BOLT HUS-596564005
...
40
Nuts HUS-596322601
...
21
Hardware HUS-596040501
...
- -
NEEDS DESCRIPTION NOT SHOWN HUS-532193646
...
37
PULLEYS HUS-596481402
...
194
BRAKE.ASSY.38"2005.+ HUS-532192558
...
23
BRKT.DEFLECTOR.38"2005+ HUS-532192557
...
24
CAP-SLEEVE LT HUS-532105304
...
68
V-BELT.MOWER.38"2005+ HUS-532193214
...
187
KEEPER BELT HUS-532193412
...
1
DECK SVCX1 38/94 192556X431 HUS-532192556
...
18
Bolts HUS-596136401
...
158
Screws HUS-596437001
...
108
SERVICE KIT STIFFENER STIFFENE HUS-531150801
...
188
BOLT CARRIAGE IDLER HUS-532173443
...
6
SERVICE KIT BAR BAR SWAY DECK. HUS-531149301
...
5
RETAINER-SPRNG RB HUS-532124670
...
31
WASHER.SPACER.MANDREL HUS-532187690
...
149
SPRING.RETAINER.YELLOW.ZINC HUS-532165898
...
190
BRAKE.ASSY.38"2005.+ HUS-532192558
...
13
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
185
HEAD ASM. CABLE CLUTCH HUS-532188234
...
123
LINK.BRAKE.38"RIGHT HUS-532410190
...
55
SERVICE.KIT IDLER ARM HUS-531164901
...
72
SPRING.BRAKE.RETURN.38" HUS-532193216
...
- -
BRAKE.ASSY.38"2005.+ NOT SHOWN HUS-532192558
...
- -
KIT.MANDREL.NONGREASE.TALL NOT SHOWN HUS-587819701
...
148
IDLER RETURN SPRING HUS-532169022
...
20
SERVICE KIT BAFFLE BAFFLE.VORT HUS-531170401
...
122
LINK.BRAKE.38"LEFT.2007 HUS-532410189
...
3
SERVICE.KIT BRACKET BRKT ASM S HUS-531165401
...
19
BOLT SHD 5/16-18 HUS-532132827
...
67
KNOB T (3/8 HOLE) HUS-532106932
...
36
CLG HUS-597025001
...
191
BRAKE.SPACER.38".DECK HUS-532192561
...
7
Hardware HUS-596040501
...
25
SPRING.TORSION.DEFLECT HUS-532197026
...
189
BRAKE.ASSY.38"2005.+ HUS-532192558
...
33
Nuts HUS-596134801
...
4
BRACKET DECK SWAY BAR 38"/42" HUS-532192568
...
45
RETAINER M HUS-532004497
...
193
KEEPER BELT RH MANDREL HUS-532193413
...
15
BEARING HUS-532110485
...
152
CABLE.CLUTCH.38".SERVICE HUS-532193235
...
107
SPACER.IDLER.ARM HUS-532133502
...
150
Washers HUS-596039801
...
14
KIT.MANDREL.NONGREASE.TALL HUS-587819701
...
56
SPACER.RETAINER.MOWER HUS-532165723
...
214
BOLT/WASHER ASM 5/16-18 HUS-532193782
...
144
SERVICE.KIT KEEPER BELT KEEPER HUS-531148901
...
27
SHIELD.DEFLECTOR.MWR.38-7/97CM HUS-532401472
...
32
MANDREL.PULLEY.38.BRIGHT.ZINC HUS-532173435
...
195
Washers HUS-596135501
...
89
GSPH HUS-596134901
...
29
Rods HUS-595297001
...
8
BOLT.WASHER.ASM.7/16-2 HUS-532193003
...
11
BLADE.2 IN 1.38"DECK.BLACK HUS-581116302
...
30
BOLT.HEX.WASHR.HED.313-18X1.19 HUS-584953901
...
2
GSPW Bolts HUS-595901601

HYDRAULIC PUMP - MOTOR

...
...
2
SERVICE KIT BRACKET SEAT PIVOT HUS-531152401
...
17
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
15
SPACER SPLIT 28X.96 HUS-532134300
...
24
WASHER HUS-819171912
...
8
SCREW 3/8-16X1 HUS-817000616
...
26
LOCKWASHER HUS-810040800
...
12
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
4
WASHER PM HUS-819131610
...
1
SEAT.XG090.BLK.KB/BLT.NO-LOG HUS-532401042
...
6
Nuts HUS-596322601
...
14
BOLT.ROUND.HEAD.SQUARE.NECK HUS-872050412
...
23
BOLT.HEX.BLACK HUS-871110814
...
13
BUSHING HUS-532121248
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
22
Hardware HUS-596040501
...
5
PUSH CLIP HUS-532145006
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
3
BOLT, HEX 3/8-16X1 HUS-871110616
...
25
BOLT,SHOULD HUS-532127018
...
9
Washers HUS-596140201
...
10
PAN.ASM.SEAT.1SLOT HUS-532195530
...
16
SPRING HUS-532121250

DECALS

...
...
12
DECAL.WARN.DFLCTR/CTFNGR.SRD. HUS-581579301
...
11
DECAL HUS-532159736
...
13
DECAL.DFLCTR.WARNNG.CTFNGR.SYM HUS-581579201
...
10
DECAL.READ.OWN.MAN.SYMBOL.LT HUS-581578101
...
- -
NEEDS DESCRIPTION NOT SHOWN HUS-532415514
...
9
NEEDS DESCRIPTION HUS-532408813
...
3
DECAL.BADGE.170MM.TEXTLOGO. HUS-581627301
...
8
DECAL.CUTFINGER.CE.02 HUS-581579101
...
- -
NEEDS DESCRIPTION NOT SHOWN HUS-532415516
...
- -
DECAL.DRAWBAR.LDL NOT SHOWN HUS-584449901
...
6
Decal, Fender 100 DB/CE HUS-532180432
...
- -
NEEDS DESCRIPTION NOT SHOWN HUS-532415517
...
- -
NEEDS DESCRIPTION NOT SHOWN HUS-532415515
...
1
HUS-532415558
...
14
NEEDS DESCRIPTION HUS-531229003
...
2
DECAL.PARKING.BRAKE.SADDLE.LT HUS-581578001
...
- -
DECAL.TRACTOR.6MIL.H/ADJUST NOT SHOWN HUS-581724901
...
20
DECAL BTRY SYMBOLS HUS-532145005
...
7
NEEDS DESCRIPTION HUS-532415550
...
4
NEEDS DESCRIPTION HUS-532419019
...
5
DECAL.ENGINE.WARNING HUS-581579701

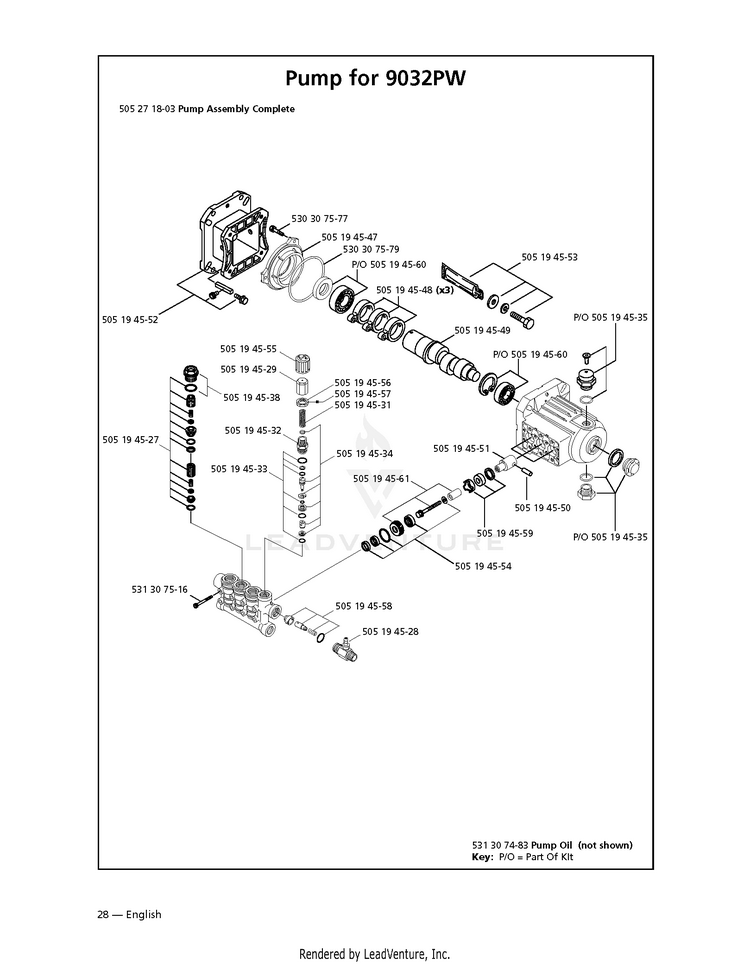

DRIVE

...
...
505 19 45-47
COVER, BEARING HUS-505194547
...
505 19 45-38
VALVE PLUG KIT HUS-505194538
...
505 27 18-03
PUMP, CAT 3SPX30 - PW9032 HUS-505271803
...
505 19 45-53
MOUNT, BOLT ASSY, ELEC/GAS HUS-505194553
...
505 19 45-50
PIN, CROSSHEAD HUS-505194550
...
505 19 45-48
ROD, CONNECTING HUS-505194548
...
531 30 74-83
PUMP OIL - SINGLE BOTTLE NOT SHOWN HUS-531307483
...
505 19 45-54
KIT, SEAL HUS-505194554
...
505 19 45-51
ROD, PLUNGER HUS-505194551
...
505 19 45-59
OIL SEAL KIT HUS-505194559
...
505 19 45-34
UNLOADER KIT, 3DNX & 3SPX HUS-505194534
...
505 19 45-28
INJECTOR, CHEMICAL FIXED HUS-505194528
...
505 19 45-27
KIT, VALVE HUS-505194527
...
505 19 45-49
CRANKSHAFT HUS-505194549
...
531 30 75-16
SCREW, HSH (M6X60) HUS-531307516
...
505 19 45-32
RETAINER, PISTON HUS-505194532
...
505 19 45-60
BEARING KIT HUS-505194560
...
505 19 45-29
CAP, ADJUSTING HUS-505194529
...
505 19 45-33
KIT, O-RING (UNLOADER) HUS-505194533
...
505 19 45-57
SCREW, SET (M4X1) HUS-505194557
...
505 19 45-31
SPRING, COIL HUS-505194531
...
505 19 45-58
CHECK VALVE KIT HUS-505194558
...
505 19 45-61
PLUNGER GUIDE KIT HUS-505194561
...
505 19 45-52
MOUNT, ADAPTER ASSY, GAS HUS-505194552
...
505 19 45-35
OIL PLUG KIT, 3DNX & 3SPX HUS-505194535
...
505 19 45-56
NUT, LOCK (M18X1) HUS-505194556
...
505 19 45-55
HANDLE, ADJUSTABLE (BLACK) HUS-505194555

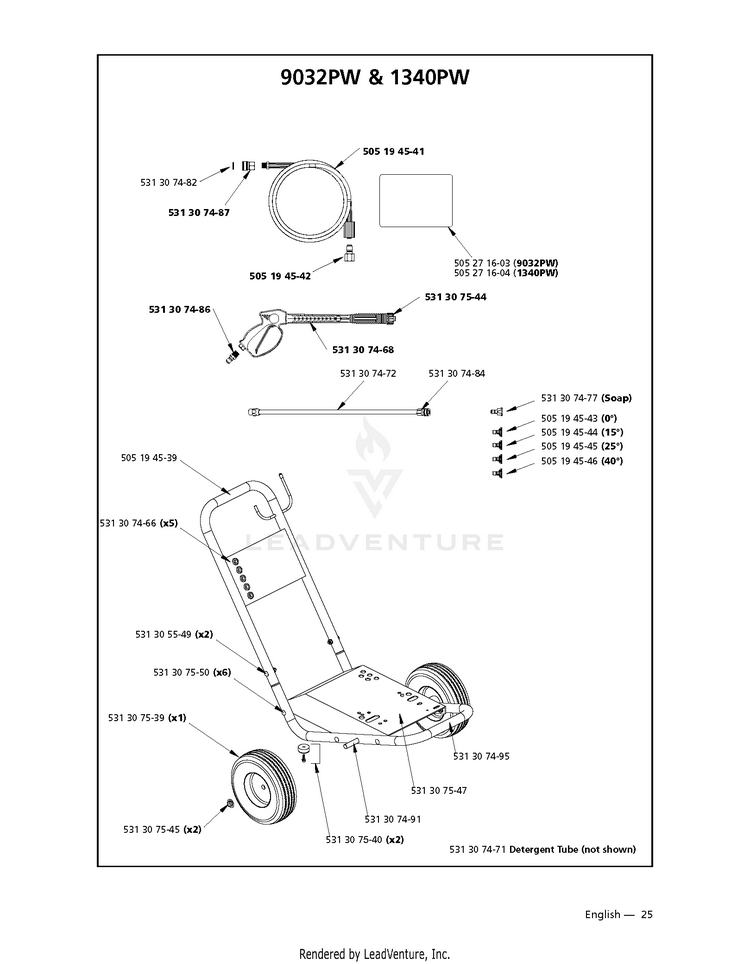

SEAT

...
...
531 30 74-77
SPRAY TIP, SOAP APPLICATOR SOAP HUS-531307477
...
531 30 74-66
SPRAY TIP HOLDER, GROMMET HUS-531307466
...
505 19 45-43
TIP, 0 DEG (PW9032 & PW1340) 0° HUS-505194543
...
531 30 75-40
RUBBER FOOT KIT HUS-531307540
...
505 19 45-41
HOSE, 50', 4000 PSI HUS-505194541
...
531 30 75-44
GUN O-RING KIT HUS-531307544
...
505 27 16-03
DECAL, PLACARD, PW9032 HUS-505271603
...
531 30 74-82
O-RING HUS-531307482
...
505 19 45-44
TIP, 15 DEG (PW9032 & PW1340) 15° HUS-505194544
...
505 19 45-45
TIP, 25 DEG (PW9032 & PW1340) 25° HUS-505194545
...
531 30 75-47
BASEPLATE W/DECAL - BLACK WSL HUS-531307547
...
531 30 74-84
O-RING HUS-531307484
...
531 30 74-72
LANCE HUS-531307472
...
531 30 74-91
AXLE TUBE HUS-531307491
...
531 30 55-49
HUS-531305549
...
531 30 74-95
LOWER FRAME TUBE HUS-531307495
...
531 30 75-50
HARDWARE PACK, LEGS / AXLE / HUS-531307550
...
531 30 74-68
GUN, AL12-3/8 PM005136AV HUS-531307469
...
531 30 74-86
QUICK CONNECT PLUG, GUN HUS-531307486
...
531 30 74-87
QUICK CONNECT SOCKET HOSE/GUN HUS-531307487
...
531 30 75-45
HARDWARE PACK, ENGINE MOUNTING HUS-531307545
...
505 19 45-42
PLUG, QUICK CONNECT HUS-505194542
...
531 30 75-39
WHEEL ASSY KIT HUS-531307539
...
531 30 74-71
DETERGENT TUBE, KIT NOT SHOWN HUS-531307471
...
505 19 45-39
HANDLE ASSY, WELDED HUS-505194539
...
505 19 45-46
TIP, 40 DEG (PW9032 & PW1340) 40° HUS-505194546
