Husqvarna 9027 STE XP (2004-07) Snow Thrower

Model: 9027 STE XP (2004-07)

Back To Assemblies

Save Part Not Listed?
product name

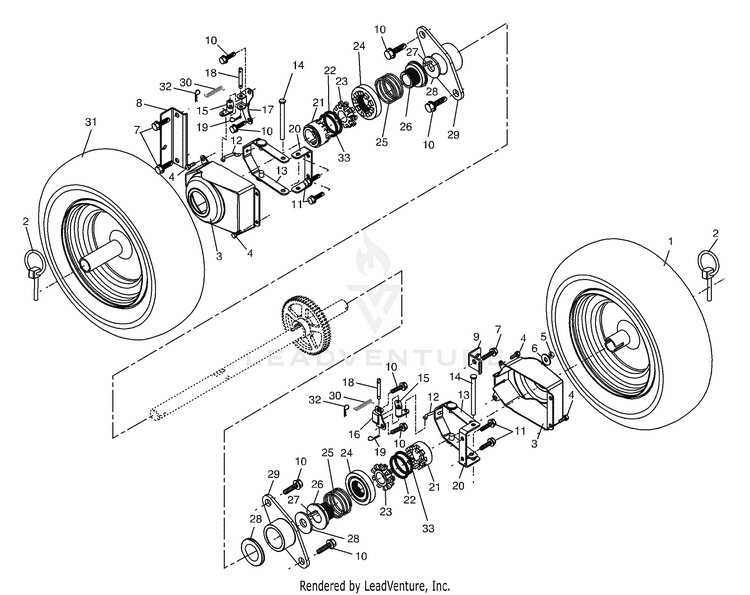

Wheels

...
...
1
KIT.WHEEL.HD.LH.16".GRAY HUS-532198266
...
2
PIN KLIK, 1/4 HUS-532155443
...
3
COVER, POWER STEERING HUS-532405161
...
4
Screws HUS-594975601
...
5
Hardware HUS-596040501
...
6
WASHER.20X8.5 HUS-532155415
...
7
Screw, Hex Head 3/8-16 x 1 HUS-871210616
...
8
BRACKET, STEERING CABLE RH HUS-532185603
...
9
BRACKET.STEER.CABLE.LH.BZP HUS-532415263
...
10
SCREW HUS-532146315
...
11
Screws HUS-596030701
...
12
LINK.STEER.YOKE HUS-532405077
...
13
YOKE.WELDMENT.STEER.BLACK HUS-532445266
...
14
PIN, STEERING LEVER HUS-532182015
...
15
BELLCRANK.WELDMENT.STEER.YZP. HUS-584375101
...
16
BRACKET ASS. LH STEERING HUS-532181982
...
17
BRACKET ASSM RH STEERING HUS-532182063
...
18
PIN, STEERING BELLCRANK HUS-532181847
...
19
RETAINER CLIP PM HUS-532085179
...
20
BRACKET.STEER.PNT.BLACK HUS-532184197
...
21
DRIVER, WHEEL HUS-532179141
...
22
RING, WIRE RETAINER HUS-532182466
...
23
LOBE WHEEL HUS-532187622
...
24
SLIDE CLUTCH HUS-532187623
...
25
SPRING, CLUTCH SLIDE HUS-532179139
...
26
LOBE.AXLE.SPLINED HUS-532179137
...
27
KEY, SQUARE 1/4 X .875 HUS-532189282
...
28
WASHER RACE BEARING THRUST HUS-532007396
...
29
BEARING, AXLE HUS-532179830
...
30
SPRING LATCH HUS-532193885
...
31
KIT.WHEEL.HD.RH.16".GREY.SNOW HUS-532198267
...
32
RETAINER CLIP HUS-532700279
...
33
RING HUS-812000045
