Husqvarna 8929 (1999 & Before) Tiller

Model: 8929 (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
1
CYLINDER ASSEMBLY HUS-494549
...
2
BUSHING, CYLINDER HUS-293708
...
3
SEAL, OIL HUS-299819
...
5
HEAD, CYLINDER HUS-213942
...
7
GASKET, CYLINDER HEAD HUS-272536
...
8
BREATHER, VALVE CHAMBER HUS-294178
...
9
GASKET, VALVE COVER HUS-27549
...
10
SCREW, SEMS, BREATHER, MOUNTING HUS-93394
...
11
GROMMET, BREATHER TUBE HUS-66578
...
12
GASKET, CRANKCASE, STANDARD .015" HUS-270833
...
xx
GASKET, CRANKCASE .005" HUS-270895
...
xx
GASKET, CRANKCASE .009" HUS-270896
...
13
SCREW, CYLINDER HEAD HUS-93111
...
15
PLUG OIL DRAIN HUS-94387
...
xx
PLUG, PIPE, HEX SOCKET HUS-93448
...
16
CRANKSHAFT HUS-492880
...
18
CRANKSHAFT GEAR PIN HUS-230978
...
19
BUSHING, CRANKCASE COVER HUS-394820
...
20
BUSHING, CYLINDER HUS-293708
...
21
SEAL, OIL HUS-299819
...
23
PLUG, OIL FILLER HUS-66768
...
24
KEY, FLYWHEEL HUS-296884
...
25
KEY, FLYWHEEL HUS-222698
...
xx
PISTON ASSEMBLY, STANDARD HUS-298904
...
xx
PISTON ASSEMBLY .010" OVERSIZE HUS-298905
...
xx
PISTON ASSEMBLY .020" OVERSIZE HUS-298906
...
xx
PISTON ASSEMBLY .030" OVERSIZE HUS-298907
...
26
RING SET, PISTON, STANDARD HUS-298982
...
xx
RING SET, PISTON .010" OVERSIZE HUS-298983
...
xx
RING SET, PISTON .020" OVERSIZE HUS-298984
...
xx
RING SET, PISTON .030" OVERSIZE HUS-298985
...
27
LOCK, PISTON PIN HUS-26026
...
28
PIN ASSY, PISTON, STD HUS-298909
...
xx
PIN ASSEMBLY, PISTON .005" OVERSIZE HUS-298908
...
29
ROD ASSEMBLY, CONNECTING HUS-294367
...
xx
ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN HUS-296079
...
30
DIPPER, CONNECTING ROD HUS-220670
...
32
SCREW, CONNECTING ROD HUS-94404
...
33
VALVE, EXHAUST HUS-296676
...
34
VALVE, INTAKE HUS-296677
...
35
SPRING, INTAKE VALVE HUS-260552
...
37
GUARD, FLYWHEEL HUS-224557
...
40
RETAINER, VALVE SPRING HUS-93312
...
45
TAPPET, VALVE HUS-230173
...
46
GEAR, CAM HUS-493747
...
52
GASKET, INTAKE ELBOW MOUNTING HUS-271936
...
53
SCREW, EXHAUST HUS-94523
...
56
PULLEY, STARTER HUS-280439
...
57
SPRING, REWIND STARTER HUS-490179
...
58
ROPE, REWIND STARTER HUS-280406
...
60
HANDLE, REWIND STARTER HUS-393152
...
66
CLUTCH ASSEMBLY, REWIND STARTER HUS-399671
...
67
HOUSING, STARTER CLUTCH HUS-394897
...
68
BALL, CLUTCH HUS-63770
...
70
RATCHET, REWIND STARTER HUS-298799
...
71
WASHER, CLUTCH RETAINER HUS-394506
...
73
SCREEN, REWIND STARTER HUS-221661
...
74
SCREW, SEMS HUS-93758
...
75
WASHER, SPRING HUS-223047
...
90
CARBURETOR ASSEMBLY HUS-492645
...
95
SCREW HUS-93499
...
96
THROTTLE, CARBURETOR HUS-223793
...
97
SHAFT AND LEVER, THROTTLE HUS-490371
...
108
VALVE GROUP, CHOKE HUS-490495
...
118
VALVE, NEEDLE HUS-231533
...
124
SCREW, ELBOW MOUNTING HUS-94616
...
127
PLUG, WELCH HUS-220352
...
127A
PLUG, WELCH HUS-223789
...
149
SPRING, NEEDLE VALVE HUS-26336
...
152
SPRING, THROTTLE ADJUSTMENT HUS-260575
...
153
SCREW, CARBURETOR CAM AND LEVER HUS-490501
...
154
SCREW, MACHINE, ROUND HEAD HUS-93527
...
156
LEVER, SPEED ADJUSTER, FIXED SPEED HUS-492905
...
163
GASKET, AIR CLEANER MOUNTING HUS-271935
...
180
TANK ASSEMBLY, FUEL HUS-495377
...
181
CAP, FUEL TANK HUS-494559
...
190
SCREW, FUEL TANK HUS-94712
...
191
GASKET, FUEL TANK TO CARBURETOR HUS-272489
...
200
BLADE, GOVERNOR HUS-495213
...
201
LINK, AIR VANE GOVERNOR HUS-262325
...
209
SPRING, AIR VANE GOVERNOR HUS-262317
...
216
LINK, CHOKE HUS-262359
...
222
PANEL, CONTROL HUS-490649
...
298
LOCKNUT, MUFFLER HUS-220859
...
299
MUFFLER, EXHAUST HUS-493288
...
305
SCREW, SEMS HUS-94608
...
305A
SCREW, HEX HEAD BACK PLATE TO CYLINDER HUS-93777
...
306
SHIELD, CYLINDER HUS-224555
...
307
SCREW, SEMS HUS-93758
...
308
COVER, CYLINDER HEAD HUS-224556
...
333
ARMATURE, MAGNETO HUS-398593
...
334
SCREW, SEM, ARMATURE MOUNTING HUS-93381
...
337
PLUG, SPARK HUS-802592
...
346
SUB= 69485 HUS-93705
...
356
WIRE, GROUND HUS-398808
...
358
GASKET SET HUS-494550
...
363
PULLEY, FLYWHEEL HUS-19069
...
383
WRENCH SPARK PLUG HUS-89838
...
392
SPRING, FUEL PUMP DIAPHRAGM HUS-262328
...
394
DIAPHRAGM HUS-270026
...
634
WASHER, THROTTLE SHAFT, FOAM HUS-271853
...
433
PIN, DIAPHRAGM COVER HUS-93265
...
434
COVER, DIAPHRAGM HUS-210959
...
435
SCREW, DIAPHRAGM HUS-93141
...
467
KNOB, CONTROL HUS-280715
...
526
KNOB, CONTROL HUS-280715
...
527
SCREW SEMS TANK BRKT MOUNT HUS-94408
...
528
TUBE, BREATHER HUS-231527
...
529
GROMMET, BREATHER TUBE HUS-67838
...
536
AIR CLEANER KIT HUS-494279
...
541
WASHER, SPEED ADJUSTER LEVEL HUS-22398
...
542
SCREW, AIR CLEANER HUS-94269
...
608
STARTER ASSEMBLY, REWIND HUS-491046
...
611
FUEL PIPE AND CLIP ASSEMBLY HUS-391813
...
621
SWITCH, STOP HUS-396847
...
635
ELBOW, SPARK PLUG HUS-66538
...
676
DEFLECTOR, MUFFLER HUS-393756
...
679
WASHER, FOAM HUS-270382
...
680
WASHER, BRASS HUS-221839
...
741
GEAR, TIMING HUS-261533
...
779
LINK, CONTROL HUS-262276
...
851
TERMINAL, IGNITION CABLE HUS-221798
...
864
ADAPTER ASSEMBLY, MUFFLER HUS-492232
...
869
SEAT, INTAKE VALVE, STANDARD HUS-211172
...
870
SEAT, EXHAUST VALVE, STANDARD HUS-211291
...
871
GUIDE, EXHAUST VALVE HUS-262001
...
xx
GUIDE, INTAKE VALVE HUS-63709
...
883
GASKET, MUFFLER HUS-272203
...
966
BASE, AIR CLEANER HUS-492797
...
967
SUB= 3364 HUS-491588
...
968
COVER, AIR CLEANER HUS-223765
...
969
SCREW, COVER MOUNTING HUS-490073
...
971
SCREW, AIR CLEANER HUS-94018
...
987
SEAL, THROTTLE SHAFT HUS-398970
...
995
BRACKET, CONTROL LINK HUS-223887
...
1016
SPACER HUS-490817

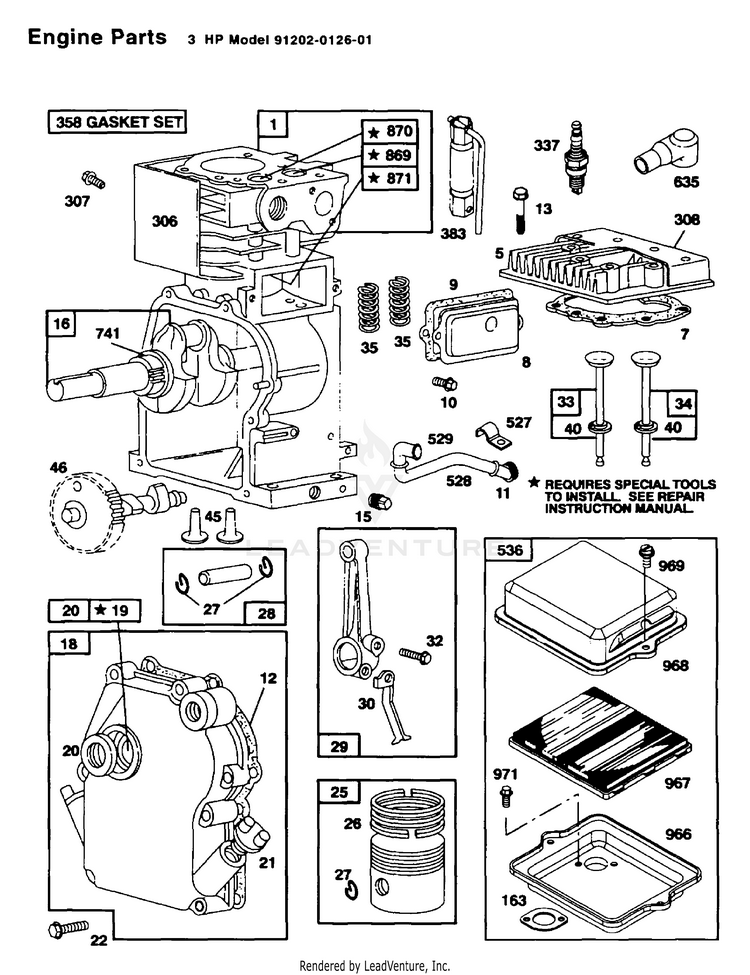

Schematic Image Zoomed
