product name

Husqvarna 8927B (1999 & Before) Tractor

Model: 8927B (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

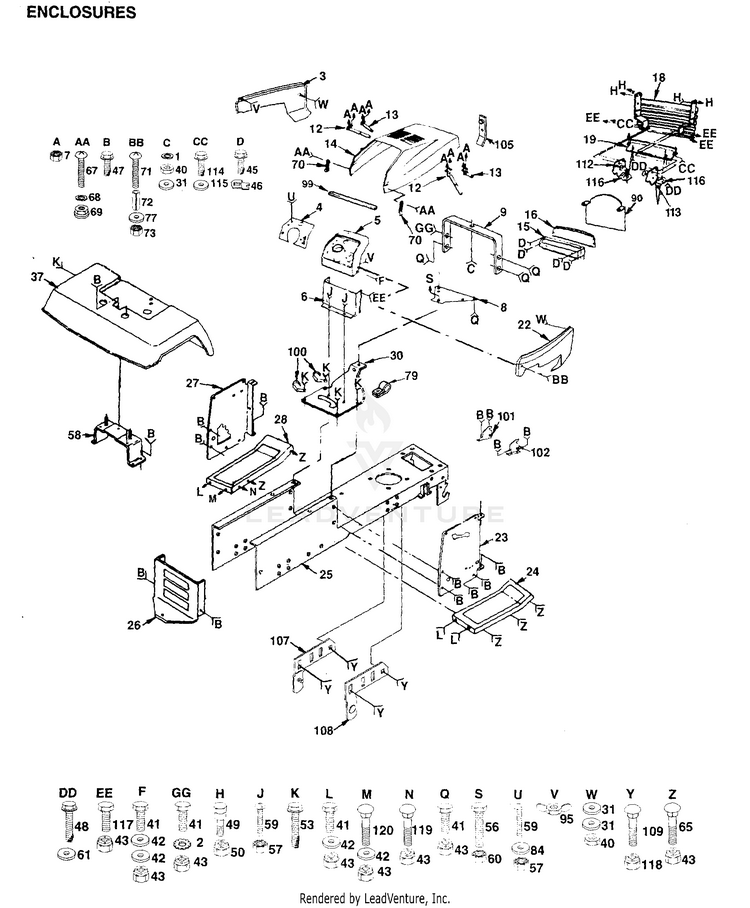

ENCLOSURES

...
...
1
LOCKWASHER HUS-10040400
...
2
LOCKWASHER HUS-11050600
...
3
"PANEL,SIDE LH " HUS-132638X473
...
4
PLATE.DASH HUS-135138X016
...
5
SUB= 140398 HUS-124252X
...
6
LOWER DASH HUS-132177
...
7
NUT HUS-73510400
...
8
SUB= 140181 HUS-137654
...
9
SUPPORT ASS'Y HUS-124130X
...
12
SUB= 155013 HUS-106784X
...
13
SUB= 155013 HUS-104618X
...
14
HOOD HUS-132635X473
...
15
SUB= 147717 HUS-124392X417
...
16
LENS LT HUS-106395X
...
18
GRILL ASSY HUS-122100X
...
19
"STRAP,GRILL" HUS-105419X473
...
22
"PANEL,SIDE RH" HUS-136337X473
...
23
SUB= 532132069 HUS-132069
...
24
FOOTREST RH HUS-105475X473
...
25
SUB= 145501 HUS-135034
...
26
SUB= 145009 HUS-137275
...
27
DASH PANEL LH HUS-132178
...
28
FOOTREST LH HUS-105476X473
...
30
SADDLE. 6SP HUS-131343X037
...
31
WASHER PM HUS-19091216
...
37
FENDER HUS-109872X473
...
40
SUB= 50675 HUS-73220400
...
41
SUB= 74780612 HUS-74760612
...
42
WASHER HUS-19131312
...
43
SUB= 73690600 HUS-73680600
...
45
SCREW LT HUS-17211010
...
46
"""J"" FASTENER LT" HUS-104755X
...
47
SCREW HUS-17490612
...
48
SCREW HUS-17490512
...
49
SUB= 7605J HUS-123481X
...
50
SUB= 73690400 HUS-73680400
...
53
SCREW LT HUS-17490608
...
56
BOLT HUS-74780512
...
57
NUT HUS-73510500
...
58
BRKT FENDER HUS-136619
...
59
SCREW HUS-74180512
...
60
SUB= 73690500 HUS-73680500
...
61
WASHER HUS-19131210
...
65
BOLT HUS-72110606
...
67
SCREW HUS-74191008
...
68
LOCKWASHER HUS-10071000
...
69
WELDNUT HUS-2029J
...
70
HOOD LATCH T HUS-109808X
...
71
SCREW HUS-74981020
...
72
SPACER LT HUS-7206J
...
73
NUT HUS-73731000
...
77
WASHER HUS-19070818
...
79
CLIP T HUS-2751R
...
84
WASHER HUS-19111116
...
90
"BAFFLE,VERTICLE" HUS-136462
...
95
SUB= 146525 HUS-123198X
...
99
FOAM STRIP T HUS-109458X
...
100
"CLIP,INSULATOR" HUS-126471X
...
101
SUPPORT LH YTH HUS-110852X
...
102
SUPPORT RH YTH HUS-110853X
...
105
SUB= 532132644 HUS-132644
...
107
PIVOT BRKT LH HUS-134774
...
108
PIVOT BRKT RH HUS-134775
...
109
SUB= 72110608 HUS-72140608
...
112
SUPPORT LH YTH HUS-110855X
...
113
SUPPORT RH YTH HUS-110854X
...
114
SCREW HEX CRT HUS-17490412
...
115
WASHER HUS-19091016
...
116
WASHER HUS-19111212
...
117
BOLT HUS-74760616
...
118
NUT HUS-73800600
...
119
SUB= 72110608 HUS-72140608
...
120
SUB= 74760616 HUS-74760614
