Husqvarna 8522 RLS - 96143006500 (2010-01) Walk Behind Mower

Model: 8522 RLS - 96143006500 (2010-01)

Back To Assemblies

Save Part Not Listed?
product name

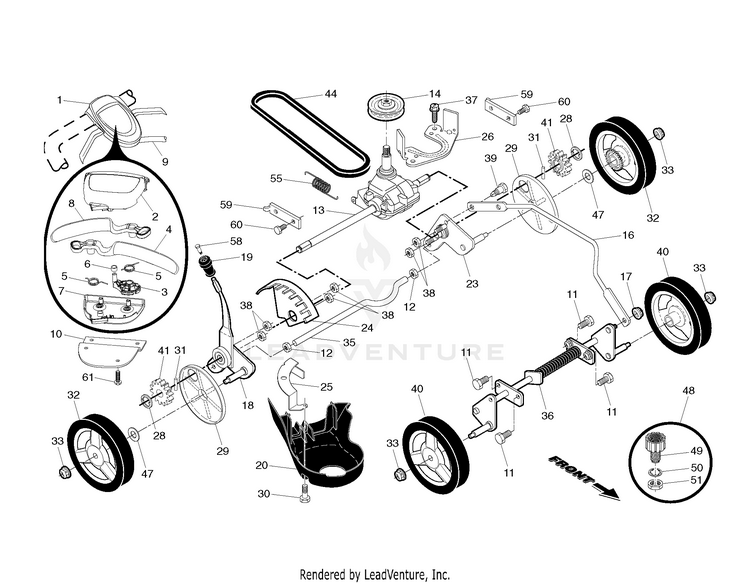

DRIVE

...
...
58
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
18
KIT.SELECTOR.ASM.432431 HUS-583509001
...
26
BRACKET.TRANS.BELTKEEP.21 RWD HUS-589318302
...
4
LEVER.CONTROL.LH.22+.CURVE.BLA LH HUS-532433087
...
36
KIT.AXLE.FT.ASM.22+RGD. HUS-532441541
...
44
BELT.DRIVE.RGD.PLUS HUS-532421527
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
6
BUSHING.CONTROL.CAM HUS-532432273
...
38
NUT.HEX.FLANGE.1/4 HUS-532191730
...
61
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
23
Wheel Axle Assembly, LH LH HUS-532432432
...
25
BRACKET.DRIVE.COVER.RGD.BZP HUS-532426065
...
12
Nut, Hex HUS-532426103
...
19
KNOB.SEL.SPRING.22+.SP.RIB.BLK HUS-532433996
...
50
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
48
KIT.WASH-OUT.PORT HUS-532421114
...
31
PAWL, DRIVE HUS-532404845
...
3
CAM.GEN2.DUAL.TRIGGER HUS-532432286
...
5
SPRING, DRIVE CONTROL HUS-532420381
...
51
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
13
TRANSMISSION.22+.RGD.AW2/EZ2 HUS-532430787
...
14
PULLEY HUS-532194128
...
17
NUT.LOCK.5/16-18 HUS-532751153
...
16
ROD.CONNECTING.RGD.22+.HW.BLAC HUS-532430030
...
24
BRACKET.WHL.ADJ.9.POS.W/PAD HUS-532433511
...
49
KIT.WASH-OUT.PORT HUS-532421114
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
8
LEVER.CONTROL.RH.22+.CURV.BLAC RH HUS-532432977
...
60
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
1
CONTROL.DR.AW2.22+.BLK.GEN HUS-589818808
...
32
WHEEL.8X1.75.3SPK.RAD3.GREY HUS-581685101
...
11
SCREW HUS-817060408
...
10
BRACKET.DRIVE.CONTR.GEN2.BLACK HUS-532432790
...
47
WASHER FLUT HUS-532067725
...
41
PINIION.14.TOOTH.RGD HUS-532404835
...
2
RP CASE.CONT.ROL.TOP.HUSQV. HUS-532431638
...
20
COVER.REAR.DRIVE.22+2013 HUS-580806901
...
59
BRACKET.SUPPORT.22+.RWGD.BZP HUS-532434460
...
55
SPRING HUS-532406558
...
28
E-RING 7/16 RE HUS-812000058
...
30
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
7
COVER.DR.CONTROL.LOWER.GRAY HUS-532433057
...
9
CABLE.CONTROL.22RGD.GEN2 HUS-532431650
...
35
AXLE.REAR.RGD HUS-532430598
...
40
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
37
SCREW HUS-532163409
