Husqvarna 8522 RLS - 96143006500 (2010-01) Walk Behind Mower

Model: 8522 RLS - 96143006500 (2010-01)

Back To Assemblies

Save Part Not Listed?
product name

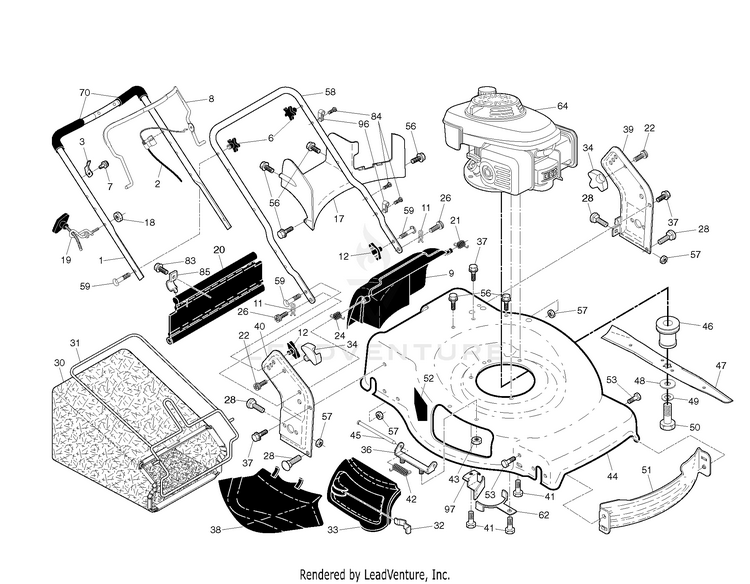

FRAME & ENGINE

...
...
24
SPRING.RH.GRAY RH HUS-532419948
...
53
BOLT.5/16HEX.WHS.HD HUS-817000510
...
44
KIT.HSG.22+RGD.MC.WO.ORG.CESYM HUS-532432263
...
17
BAFFLE.REAR.22+RGD.AWD.PLASTIC HUS-581782101
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
96
CLIP.CABLE.BLK HUS-532197991
...
38
DEFLECTOR.CLIPPING.22.BLACK HUS-532426129
...
1
HANDLE.ASM.UPPER.W/GRIP HUS-532186296
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
22
SCREW.PAN.HEAD.#10 HUS-532141841
...
57
GSPW Hardware HUS-596039201
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
45
ROD.HINGE.21 HUS-532175650
...
56
SCREW.HX.13X.750 HUS-817411312
...
85
BRACKET.SKIRT.22+.BZP HUS-532434530
...
43
NUT.HEX.FLANGE.1/4 HUS-532191730
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
42
SPRING.TORSION HUS-532193000
...
3
BRACKET.UPSTOP.RT HUS-532430034
...
2
CABLE.MZR.RGD.22.B&S/HON.ERGO HUS-532440386
...
31
FRAME.GBAG.22+.BLK HUS-585054702
...
9
DOOR ASSY REAR;22+.HUSQVARNA N HUS-593304501
...
46
ADAPTOR BLADE 25MM STAR HUS-581473301
...
58
KIT.HANDLE LOW.22+ BT.2PC.BLK HUS-501263201
...
11
COTTER.HAIRPIN.DOOR/HANDLE.PIV HUS-532425575
...
28
Bolts HUS-596136401
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
83
SCREW HUS-817021008
...
7
SCREW HUS-532750634
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
47
BLADE.22PLUS HUS-532420463
...
30
Grassbag HUS-532429017
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
20
SKIRT.REAR.22PLUS.RGD/FGD.NEW HUS-532429157
...
70
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
51
BAFFLE.FRONT.22.PLUS HUS-532430599
...
8
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
48
WASHER,HARDEN HUS-532851074
...
34
BRACKET.GRASSBAG.ATTAC HUS-532426064
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
21
SPRING.LH.BLACK LH HUS-532419949
...
64
HONDA GCV160-LAS3A HUS-000000000
...
32
Latch, Mulcher Door HUS-532419944
...
33
DOOR.MULCH.22+.BLK HUS-594942002
...
49
Washers HUS-596238701
...
62
BRACKET.KEEPER.BELT HUS-532425711
...
39
BRACKET.ASM.HANDLE.LT.22+.FG LH HUS-581353703
...
40
BRACKET.ASM.HANDLE.RT.22+.FG RH HUS-581353603
...
97
BRACKET.BELT.GUIDE.22+.004 BZP HUS-580606902
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
