Husqvarna 8248A99 (1999) Tractor

Model: 8248A99 (1999)

Back To Assemblies

Save Part Not Listed?
product name

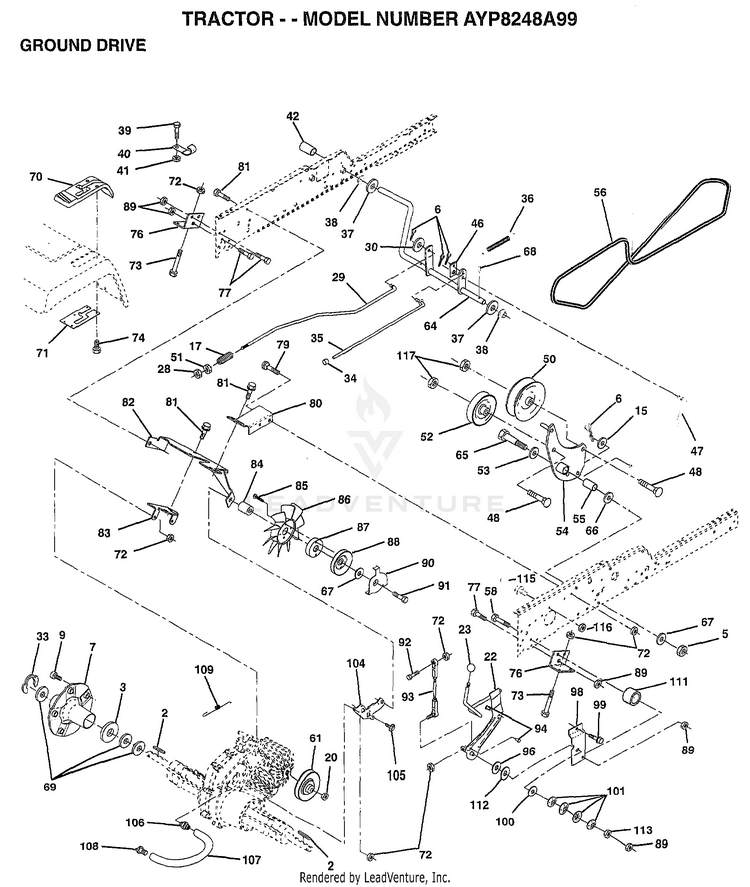

GROUND DRIVE

...
...
2
KEY 1/4 X 2.5 HUS-7070E
...
3
WASHER T HUS-7563R
...
5
SUB= 73690600 HUS-73680600
...
6
COTTER PIN HUS-76020412
...
7
HUB WHEEL ASM HUS-140507
...
9
BOLT.HUB.WHL.REAR HUS-140080
...
15
WASHER HUS-19131316
...
17
SPRING ROD BRAKE HUS-140921
...
20
SUB= 73360800 HUS-73940800
...
22
ARM ASM SHIFT HUS-156103
...
23
KNOB.DUCKHEAD.1/2 HUS-121274X
...
28
NUT HUS-73350600
...
29
ROD BRAKE HUS-140494
...
30
WASHER HYT HUS-19131616
...
33
E RING HYT HUS-12000053
...
34
CAP HUS-124236X
...
35
ROD BRAKE PART GT HUS-137648
...
36
SPRING.GRND.DRIVE HUS-149412
...
37
WASHER HUS-121749X
...
38
BUSHING.NYLINER HUS-150035
...
39
SCREW HUS-74321016
...
40
ACT-SWITCH T HUS-5304J
...
41
NUT.FLANGE HUS-73661000
...
42
PEDAL COVER T HUS-8883R
...
46
RETAINER.SPRING HUS-145170
...
47
ROD.CLUTCH HUS-138228
...
48
BOLT.3/8-16X1.50 HUS-72110612
...
50
FLAT IDLER PULLEY HUS-131494
...
51
NUT HUS-73800600
...
52
PULLEY.IDLER.V.GR HUS-139123
...
53
WASHER T HUS-207J
...
54
CLUTCH.ARM.ASM HUS-161590
...
55
"LY, BEARING" HUS-105706X
...
56
BELT-V 84.5 HUS-140218
...
58
BOLT HUS-74760724
...
61
PULLEY TRANSAXLE HUS-140488
...
64
SHAFT-BRAKE/CLUTC HUS-154752
...
65
AXLE BOLT HUS-67609
...
66
WASHER.HARD.BLADE HUS-140296
...
67
WASHER HUS-19131312
...
68
ROLL PIN STD HUS-5142H
...
69
WASHER HUS-123800X
...
70
CONSOLE.SHIFT.AUTO.YT/GT.BLACK HUS-164892X428
...
71
"PLATE CONSOLE,SFT" HUS-151179
...
72
SUB= 73690500 HUS-73680500
...
73
BOLT.HEX.FLGHD. HUS-74490548
...
74
SCREW HEXWSH H-L HUS-142432
...
76
BRACKET TRAN VGTH HUS-140481
...
77
BOLT HUS-74760716
...
79
BOLT HUS-72110505
...
80
BRACKET TORQUE RH HUS-140484
...
81
SCREW HUS-17490612
...
82
BRACKET.MTG.FAN HUS-150586
...
83
STRAP TORQUE MID HUS-140479
...
84
SPACER HUS-140490
...
85
SCREW YTV HUS-17541020
...
86
"FAN 7"" HYDRO" HUS-140462
...
87
ADAPTER FAN HUS-140491
...
88
PULLEY FAN HUS-161592
...
89
NUT GTV HUS-73680700
...
90
KEEPER BELT HUS-140489
...
91
SCREW.HXWSH.3/8 HUS-17490644
...
92
BOLT HUS-74760520
...
93
LINK ASM SHIFT HUS-140502
...
94
XMAS TREE FASTNER HUS-133835
...
96
WASHER NICKEL PLT HUS-141103
...
98
BRACKET SHIFT HUS-141004
...
99
SCREW LT HUS-17490624
...
100
WASHER COMPRESSIN HUS-126881X
...
101
WASHER-BELLVILLE HUS-156106
...
104
BRACKET IDLER HUS-140480
...
105
SCREW CRT HUS-17580408
...
106
O-RING.ASM.70110 HUS-142918
...
107
"LINE FUEL,HYD 15""" HUS-154739
...
108
CAP.VENT.70109 HUS-142917
...
109
SPRING BRAKE HUS-140929
...
111
"SPACER-LEVER,SHIF" HUS-156240
...
112
"WASHER-NYLON,HIGH" HUS-156104
...
113
NUT HUS-73220700
...
115
"KEEPER,DRIVE BELT" HUS-123405X
...
116
"NUT HEX,LOCK,FLAN" HUS-73900500
...
117
SUB= 83923 HUS-73900600
...
xx
REFER TO PARTS IMAGE HUS-PARTS IMAGE
