product name

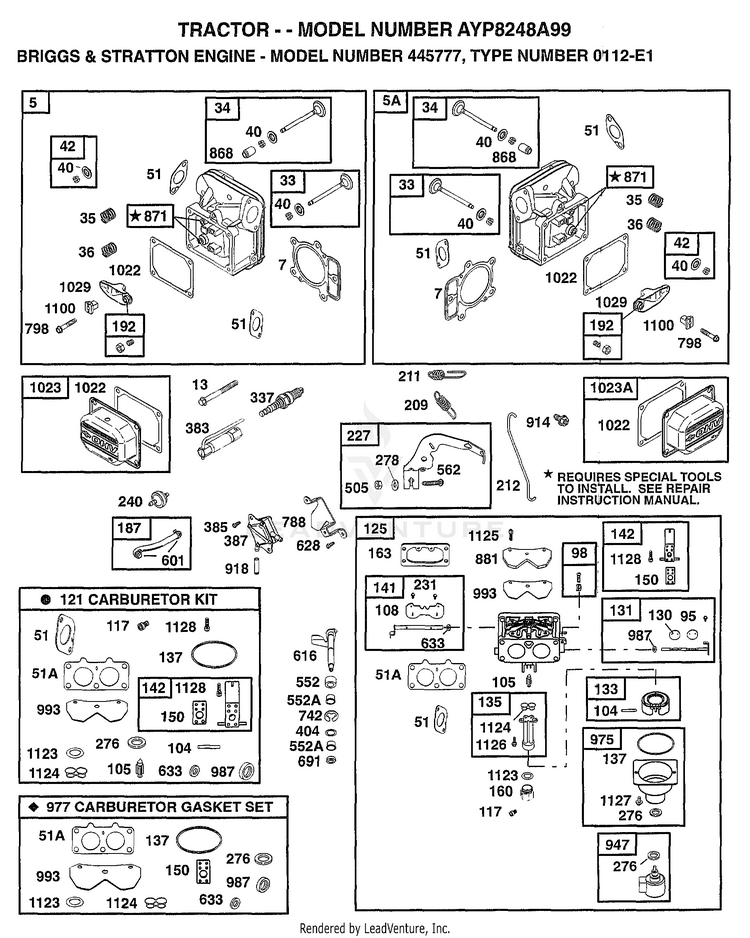

Husqvarna 8248A99 (1999) Tractor

Model: 8248A99 (1999)

Back To Assemblies

Save Part Not Listed?
product name

BRIGGS AND STRATTON ENGINE

...
...
1
CYLINDER ASSEMBLY HUS-694001
...
2
BUSHING CYLINDER HUS-499585
...
3
SEAL, OIL HUS-391086
...
4
SUMP ENGINE HUS-690069
...
5
HEAD CYLINDER NO. 1 HUS-499587
...
5A
HEAD CYLINDER NO. 2 HUS-499595
...
7
GASKET-CYLINDER HEAD HUS-693997
...
8
BREATHER ASSY HUS-499601
...
9
GASKET BREATHER HUS-273370
...
10
SCREW, HEX HUS-690960
...
11
TUBE, BREATHER HUS-690942
...
12
GASKET CRANKCASE HUS-273488
...
13
SCREW, CYLINDER HEAD HUS-94728
...
15
PLUG, OIL DRAIN HUS-94239
...
15A
PLUG, OIL DRAIN, FLUSH HUS-94880
...
16
CRANKSHAFT HUS-691047
...
20
SEAL OIL HUS-690947
...
22
SCREW-HEX HUS-93764
...
23
FLYWHEEL HUS-691053
...
24
KEY, FLYWHEEL HUS-222698
...
25
PISTON ASSEMBLY HUS-694003
...
25
PISTON ASSY HUS-694005
...
25
PISTON ASSY HUS-694007
...
25
PISTON ASSY HUS-694009
...
26
RING SET HUS-694004
...
26
RING SET HUS-694006
...
26
RING SET HUS-694008
...
26
RING SET HUS-494010
...
27
LOCK, PISTON PIN HUS-263181
...
28
PIN ASSY, PISTON HUS-499582
...
29
ROD ASSY, CONNECTING HUS-499583
...
32
SCREW-CONNECTING ROD HUS-95075
...
33
VALVE, EXHAUST HUS-499596
...
34
VALVE, INTAKE HUS-499597
...
35
SPRING-VALVE HUS-263163
...
36
SPRING-VALVE HUS-263163
...
40
RETAINER-VALVE HUS-263215
...
42
KEEPER VALVE HUS-499586
...
45
TAPPET, VALVE HUS-262679
...
46
GEAR, CAM HUS-690978
...
48
SHORT BLOCK HUS-693292
...
50
MANIFOLD, INTAKE HUS-690948
...
51
GASKET-INTAKE HUS-273487
...
51A
GASKET, CARB MOUNTING HUS-805903
...
53
STUD, CARB. MOUNTING HUS-690951
...
54
SCREW, TORX HEX HUS-94913
...
73
SCREEN, ROTATING HUS-691055
...
74
SCREW, TORX HUS-691057
...
75
WASHER HUS-225307
...
89
PLUG, PIPE HUS-91488
...
95
SCREW, VALVE MOUNTING HUS-805538
...
98
SCREW, IDLE SPEED HUS-499802
...
104
PIN, FLOAT HINGE HUS-690984
...
105
VALVE, NEEDLE HUS-690985
...
108
VALVE, CHOKE HUS-690986
...
117
JET, MAIN (STANDARD) HUS-690232
...
117
JET-MAIN HUS-690989
...
121
CARBURETOR OVERHAUL KIT HUS-499811
...
122
SPACER, CARBURETOR HUS-690952
...
125
CARBURETOR HUS-499804
...
130
VALVE, THROTTLE HUS-690993
...
131
SHAFT, THROTTLE HUS-499805
...
133
FLOAT, CARBURETOR HUS-499806
...
135
TUBE, FUEL TRANSFER HUS-499803
...
137
GASKET, FLOAT BOWL HUS-690994
...
141
SHAFT CHOKE HUS-499807
...
142
NOZZLE, CARBURETOR HUS-499808
...
146
TIMING GEAR KEY HUS-94388
...
150
GASKET-NOZZLE HUS-690995
...
160
RETAINER, SOLENOID HUS-690996
...
163
GASKET-AIR CLEANER HUS-273640
...
177
SEAL, FILLER TUBE HUS-280393
...
187
LINE-FUEL HUS-693180
...
188
SCREW, HEX HUS-690960
...
192
ADJUSTER, ROCKER ARM HUS-690083
...
209
SPRING-GOVERNOR HUS-691018
...
211
SPRING-GOVERNED IDLE HUS-691019
...
212
LINK, THROTTLE HUS-691020
...
213
BRACKET, CHOKE CONTROL HUS-691021
...
216
LINK, CHOKE HUS-691022
...
219
GEAR, GOVERNOR HUS-394348
...
220
WASHER, THRUST HUS-222773
...
222
PLATE, GOVERNOR CONTROL HUS-691023
...
227
LEVER ASSY, GOVERNOR HUS-691048
...
231
SCREW, VALVE MOUNTING HUS-805538
...
240
FILTER, FUEL HUS-691035
...
252
ELEMENT, BREATHER HUS-690956
...
256
RETAINER, ELEMENT HUS-690957
...
265
CLAMP HUS-221535
...
267
SCREW, HEX HUS-691044
...
276
WASHER, SEAL HUS-690997
...
278
WASHER HUS-691017
...
304
HOUSING, BLOWER HUS-691004
...
305
SCREW HUS-95118
...
309
MOTOR, STARTER HUS-691262
...
310
BOLT HUS-95035
...
311
BRUSH SET HUS-497608
...
703
CLIP-HOSE HUS-691010
...
718
PIN, DOWEL HUS-230192
...
741
GEAR, TIMING HUS-690980
...
742
RETAINER, E-RING HUS-94296
...
750
SCREW, T-30 HUS-691033
...
332
NUT, HEX HUS-230674
...
333
ARMATURE, MAGNETO HUS-691060
...
334
SCREW, SEMS HUS-94731
...
337
SPARK PLUG HUS-691043
...
358
GASKET SET HUS-694012
...
363
FLYWHEEL, PULLER HUS-691062
...
383
WRENCH, SPARK PLUG HUS-690966
...
385
SCREW, HEX HUS-690960
...
387
PUMP-FUEL HUS-808281
...
404
WASHER, GOVERNOR CRANK, INSIDE HUS-223882
...
405
SCREW HUS-94930
...
429
SCREW, HEX HUS-691003
...
445
FILTER-A/C CARTRIDGE HUS-499486
...
447
SCREW HUS-94930
...
447A
SCREW, HEX HUS-690960
...
467
NUT, AIR CLEANER HUS-691008
...
474
STATOR, ALTERNATOR HUS-393295
...
501
REGULATOR, ALTERNATOR HUS-394890
...
505
NUT, HEX HUS-92278
...
510
DRIVE, STARTER HUS-497606
...
513
CLUTCH ASSEMBLY HUS-398003
...
523
DIPSTICK, OIL HUS-691036
...
525
TUBE, OIL FILL HUS-691037
...
526
SCREW, HEX HUS-690960
...
544
REFER TO PARTS IMAGE HUS-PARTS IMAGE
...
552
UPPER BUSHING GOVERNOR HUS-262331
...
552A
LOWER BUSHING, GOVERNOR HUS-262332
...
562
BOLT, GOVERNOR LEVER HUS-93853
...
573
PLATE, BLACK HUS-691009
...
578
WIRE ASSEMBLY HUS-691208
...
579
NUT, HEX HUS-92278
...
601
CLAMP, FUEL LINE HUS-95162
...
615
RETAINER-GOVERNOR SHAFT HUS-93898
...
616
CRANK, GOVERNOR HUS-691045
...
628
SCREW, HEX HUS-690960
...
633
SEAL, CHOKE SHAFT HUS-690998
...
635
ELBOW, SPARK PLUG HUS-66538
...
654
LOCKNUT, AIR CLEANER MOUNTING HUS-94010
...
668
SPACER HUS-94401
...
691
SEAL, GOVERNOR SHAFT HUS-690657
...
697
SCREW, HEX HEAD HUS-94951
...
783
GEAR, PINION HUS-693058
...
788
BRACKET, PUMP HUS-691039
...
789
HARNESS-WIRING HUS-499235
...
797
NUT (BRUSH RETAINER) HUS-693167
...
798
SCREW, HEX HUS-690967
...
801
CAP-DRIVE HUS-499787
...
802
P/N CONFLICT - CHECK WITH SUPPLIER HUS-497607
...
803
REFER TO PARTS IMAGE HUS-PARTS IMAGE
...
823
SCREW, HEX HUS-690960
...
847
DIPSTICK/TUBE ASSY HUS-499602
...
851
TERMINAL, IGNITION CABLE HUS-493880
...
855
ADAPTER, AIR HUS-691011
...
865
COVER, AIR GUIDE HUS-691012
...
865A
COVER-AIR GUIDE (CYLINDER #2) HUS-691014
...
865B
COVER, AIR GUIDE HUS-691015
...
868
SEAL, VALVE HUS-690968
...
871
BUSHING, GUIDE (INTAKE & EXHAUST) HUS-262835
...
877
CONNECTOR-ALT. OUTPUT HUS-399916
...
878
HARNESS, ALTERNATOR HUS-393362
...
881
PLATE, COVER HUS-690999
...
910
SCREW, SEMS HUS-93621
...
914
SCREW, HEX HUS-690960
...
918
HOSE-VACUUM HUS-281730
...
934
SCREW, SEMS 3/4" HUS-94627
...
943
SEAL O-RING HUS-280801
...
947
SOLENOID, FUEL HUS-499809
...
965
COVER, OIL PUMP HUS-499613
...
967
FILTER-PRE-CLEANER HUS-273638
...
968
COVER, AIR CLEANER HUS-499788
...
975
BOWL, FLOAT HUS-499810
...
977
GASKET SET, CARBURETOR HUS-499812
...
987
SEAL, THROTTLE SHAFT HUS-691000
...
993
GASKET, PLATE HUS-690234
...
1005
FAN, FLYWHEEL HUS-691243
...
1006
RETAINER, FAN HUS-224901
...
1013
NIPPLE-OIL FILTER HUS-231573
...
1017
OIL PUMP SCREEN HUS-491722
...
1019
LABEL KIT HUS-693995
...
1022
GASKET-ROCKER COVER HUS-273486
...
1023
COVER, ROCKER (CYL. NO.1) HUS-499599
...
1023A
COVER, ROCKER (CYL. NO.2) HUS-499600
...
1024
PUMP, OIL HUS-499054
...
1026
ROD-PUSH (STEEL) HUS-498745
...
1026
ROD-PUSH (ALUMINUM) HUS-498746
...
1027
FILTER, OIL HUS-492932
...
1029
ARM, ROCKER HUS-690972
...
1033
VALVE OVERHAUL KIT HUS-694013
...
1035
SHAFT-PUMP HUS-232159
...
1036
LABEL KIT, EMISSION HUS-499783
...
1051
RETAINER HUS-263080
...
1058
OWNER'S MANUAL HUS-273694
...
1081
SEAL, O-RING (OIL FILTER TUBE) HUS-691032
...
1090
RETAINER, BRUSH HUS-691293
...
1100
PIVOT-ROCKER ARM HUS-806038
...
1123
O-RING, SOLENOID RETAINER HUS-690987
...
1124
O-RING, FUEL TRANSFER TUBE HUS-690988
...
1125
SCREW, VALVE MOUNTING HUS-805538
...
1126
SCREW, PHILLIPS HUS-690991
...
1127
SCREW, PHILLIPS HUS-690992
...
1128
SCREW, PHILLIPS HUS-690990
