Husqvarna 8209A89 (1998) Tractor

Model: 8209A89 (1998)

Back To Assemblies

Save Part Not Listed?
product name

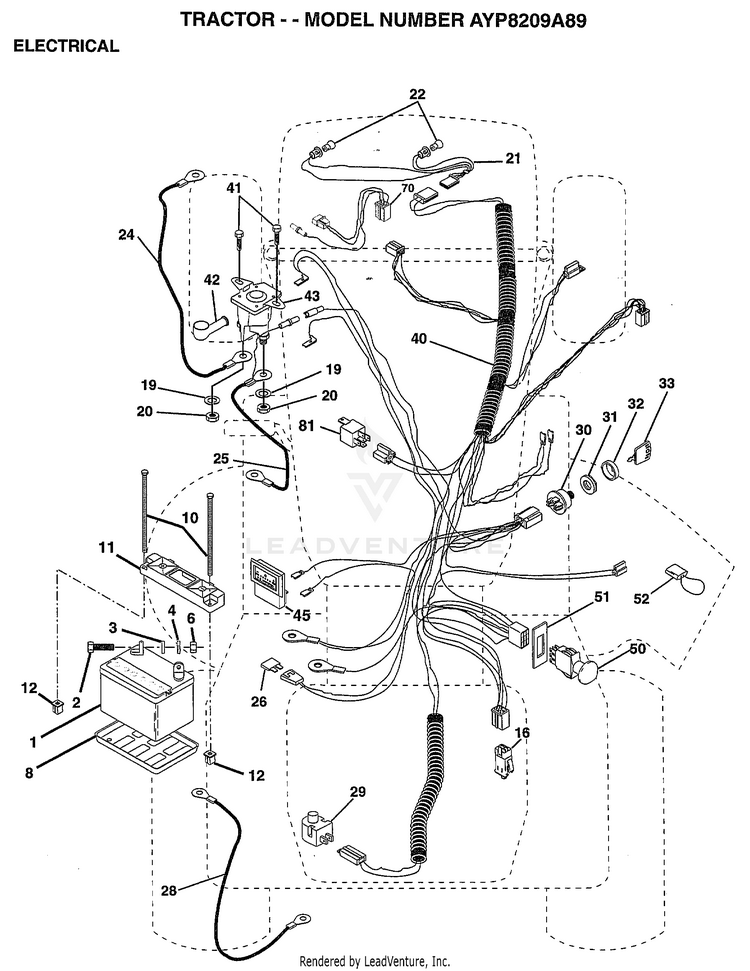

ELECTRICAL

...
...
1
SUB= 123899X HUS-144926
...
3
WASHER HUS-19091016
...
4
LOCKWASHER HUS-10040400
...
6
SUB= 50675 HUS-73220400
...
8
"TRAY T, BATTERY" HUS-7603J
...
10
SUB= 150177 HUS-145211
...
11
HOLDDOWN BATTERY HUS-150109
...
12
SUB= 150177 HUS-145769
...
16
SWITCH INTERLOCK HUS-153664
...
19
SUB= 10040400 HUS-10090400
...
20
NUT HUS-73350400
...
21
"HARNESS,LIGHT SOC" HUS-136850
...
22
HEADLAMP BULB HUS-4152J
...
24
CABLE-BATTERY T HUS-4206J
...
25
CABLE.6GA.12.5. HUS-146149
...
26
FUSE HYT HUS-108824X
...
28
CABLE T HUS-4207J
...
29
SWITCH.PLUNGER HUS-160784
...
30
SWITCH IGN 4POS HUS-140301
...
31
NUT IGNITION HUS-124211X
...
32
COVER KEY SWITCH HUS-141226
...
33
KEY HUS-122147X
...
40
HARNESS.IGNITON HUS-160725
...
41
SCREW HUS-17720408
...
42
SUB= 154336 HUS-131563
...
43
SUB= 146154 HUS-145673
...
45
AMMETER HUS-122822X
...
50
PTO SWITCH.BLK HUS-154959
...
51
RING RETAIN PTO HUS-140405
...
52
PROTECTION LOOP HUS-141940
...
70
HARNESS.ENGINE HUS-164767
...
81
RELAY ASSY T HUS-109748X
