Husqvarna 820-016A (1999 & Before) Tractor

Model: 820-016A (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

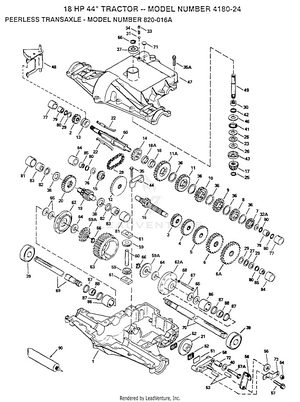

PEERLESS TRANSAXLE

...
...
1
CASE TRANSAXLE PLN-770088
...
2
GEAR, SPUR, 15T PLN-778253
...
3
GEAR, SPUR, 12 TEETH PLN-778211
...
4
GEAR, SPUR, 18 TEETH PLN-778240
...
5
GEAR, SPUR, 25T PLN-778201
...
6
GEAR, SPUR, 28T PLN-778202
...
6A
GEAR, SPUR, 31T PLN-778208
...
7
GEAR, SPUR, 19T PLN-778273
...
8
GEAR, SPUR, 22T PLN-778203A
...
9
GEAR, SPUR, 25T PLN-778204A
...
10
GEAR, SPUR, 32 TEETH PLN-778239A
...
11
GEAR, SPUR, 37 TEETH PLN-778207A
...
11A
GEAR, SPUR, 41T PLN-778216A
...
12
GEAR BEVEL, 33T PLN-778246
...
13
COLLAR SHIFT PLN-784216
...
14
SPROCKET 18T (REV) PLN-786123
...
15
SPROCKET 9T PLN-786082
...
16
SHAFT COUNTER PLN-776291
...
17
BEVEL PINION, 13T PLN-778245
...
18
SPACER, .350/.340 THICK PLN-786121
...
18A
SPACER, .276/.268 THICK PLN-786122
...
19
SHAFT, OUTPUT, 9T PLN-776275
...
20
GEAR, OUTPUT, 35T PLN-778247
...
21
DISK BRAKE PLN-790043
...
22
KEY PLN-792138
...
23
BEARING THRUST PLN-780084
...
25
RETAINING RING PLN-788040
...
26
WASHER THRUST PLN-780051
...
27
THRUST BEARING PLN-780071
...
28
CHAIN, ROLLER PLN-786081
...
29
WASHER THRUST PLN-780072
...
30
BEARING NEEDLE PLN-780155
...
31
BALL STEEL, 5/16" DIA. PLN-792077
...
32A
WASHER PLN-780139
...
33
SCREW, 3/8-16 X 3/8" PLN-792078
...
34
SPRING PLN-792079
...
35
SCREW, 1/4-20 X 1-1/4 PLN-792073
...
35A
SCREW HEX HD 5/16-18 X 1-1/4 PLN-792129
...
36
WASHER THRUST PLN-780108
...
37
BEARING BALL PLN-780119
...
38
WASHER THRUST PLN-780128
...
39
BEARING BALL PLN-780050
...
40
WASHER FLAT PLN-792128
...
41
"O" RING PLN-788077
...
42
OIL SEAL 3/4 PLN-788042
...
43
WASHER CUPPED PLN-780166
...
44
BEARING CAP PLN-786131
...
45
WASHER PLN-780165
...
47
COVER TRANSAXLE PLN-772098A
...
48
ROD AND FORK ASSY SHIFT PLN-784342
...
49
SHAFT INPUT PLN-776274
...
50
SHAFT BRAKE PLN-776313
...
51
PLATE BRAKE PAD PLN-790007
...
52
PAD BRAKE PLN-790006
...
53
PIN DOWEL PLN-786026
...
54
LOCKNUT 5/16-24 PLN-792075
...
55
WASHER, FLAT PLN-792076
...
56
LEVER BRAKE PLN-790047
...
57
SCREW, 1/4-20 X 1-1/4 PLN-792073
...
57A
SCREW FLNG HEX 1/4-20 X 2-1/4 PLN-792085
...
58
HOLDER BRAKE PAD PLN-790025
...
59
PINION, 10T PLN-778197
...
59A
GEAR BEVEL PLN-778198
...
60
PIN DRIVE PLN-786019
...
61
BLOCK DRIVE PLN-786027
...
62
CARRIER DIFF THREADED HOLES PLN-774833
...
62A
CARRIER DIFF PLN-774834
...
63
GEAR, RING, 31T PLN-778248
...
64
WASHER PLN-780107
...
65
WASHER THRUST PLN-780042
...
66
RING STRAP PLN-792018
...
67
SCREW, 1/4-20 X 2-1/4 PLN-792020
...
68
WASHER LOCK 1/4 PLN-792006
...
69
AXLE, 12-5/16" LONG PLN-774832
...
70
AXLE, 16-3/16" LONG PLN-774831
...
71
PLUG, THRDED, 9/16-18 PLN-792074
...
72
SPACER PLN-786067
...
73
BRKT BRAKE LEVER PLN-786086
...
76
WASHER PLN-780153
...
77
SLEEVE PLN-786144
...
78
BEARING NEEDLE PLN-780150
...
79
BEARING NEEDLE PLN-780152
...
80
"O" RING PLN-792001
...
81
SLEEVE STEPPED PLN-786142
...
82
RING SQ CUT PLN-788071
...
83
BEARING NEEDLE CAPPED PLN-780168
...
84
SLEEVE STEPPED PLN-786143
...
85
BEARING NEEDLE CAPPED PLN-780151
...
86
SLEEVE STEPPED PLN-786145
...
87
RING SQ CUT PLN-788070
...
88
BEARING NEEDLE PLN-780031
...
90
GREASE BENTONITE, 32 OZ. PLN-788067B
...
...
...
