Husqvarna 8196A99 (1999) Tractor

Model: 8196A99 (1999)

Back To Assemblies

Save Part Not Listed?
product name

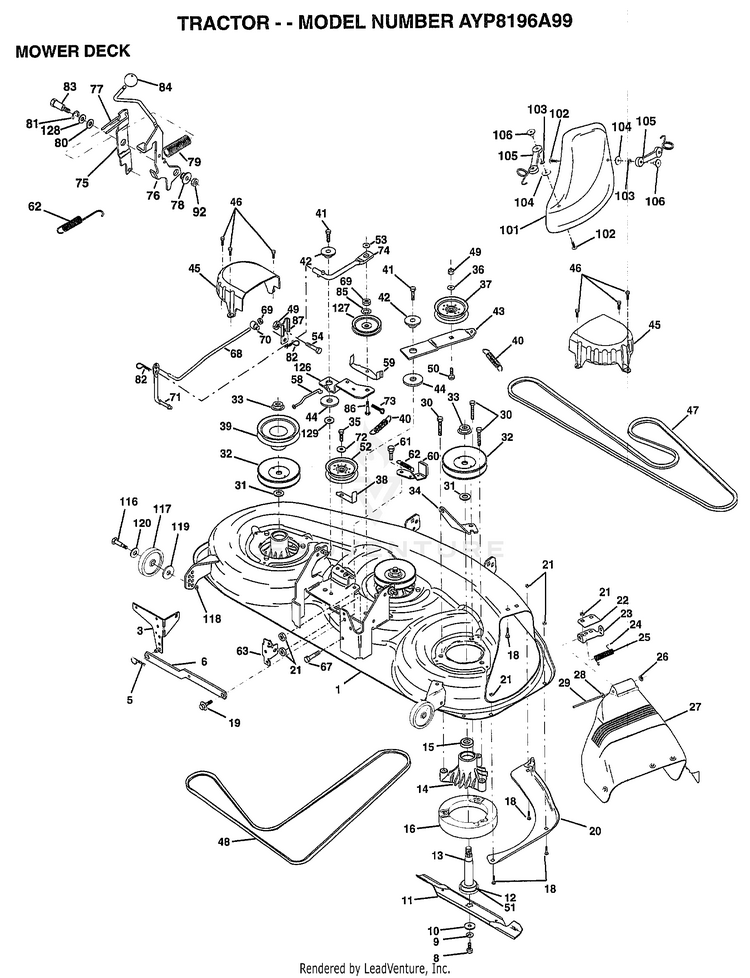

MOWER DECK

...
...
1
"DECK.ASM.MOWER46""" HUS-164210
...
3
BRKT.ASM.SW.44/50 HUS-138457
...
5
SUB= 85902 HUS-4939M
...
6
SUB= 130833 HUS-130832
...
8
BLADE BOLT HUS-850857
...
9
SUB= 10040600 HUS-10030600
...
10
WASHER.HARD.BLADE HUS-140296
...
11
"BLADE MULCH 46""" HUS-163819
...
12
BEARING.BALL HUS-129895
...
13
SHAFT.ASM.W/BRNG HUS-137553
...
14
HOUSING.MAND.44.V HUS-137152
...
15
BEARING HUS-110485X
...
16
STRIPPER RND MWR HUS-140329
...
18
BOLT HUS-72140505
...
19
BOLT SHD 5/16-18 HUS-132827
...
20
BAFFFLE.VORTEX.46 HUS-145055
...
21
SUB= 73690500 HUS-73680500
...
22
STIFFENER BRKT HUS-134753
...
23
DEFLECTOR BRKT HUS-131267
...
24
CAP-SLEEVE LT HUS-105304X
...
25
SUB= 123713X HUS-149287
...
26
NUT PUSH M HUS-110452X
...
27
SHIELD DEFLECTOR HUS-157788
...
28
WASHER HUS-19111016
...
29
HINGE ROD HUS-131491
...
30
"SCREW-THD ROLL,WA" HUS-157722
...
31
WASHER HUS-129963
...
32
PULLEY.MAND.36/46 HUS-153531
...
33
SUB= 139729 HUS-137266
...
34
ANCHOR.SPRING.46 HUS-144945
...
35
SCREW LT HUS-17490628
...
36
WASHER HUS-19131316
...
37
FLAT IDLER PULLEY HUS-131494
...
38
"KEEPER BELT,IDLER" HUS-156086
...
39
PULLEY.DRV.DCK.46 HUS-144917
...
40
"SPRING.SEC.44""VEN" HUS-137273
...
41
SCREW HUS-17490620
...
42
SPACER RETAINER HUS-122052X
...
43
ARM.IDLER.DECK.46 HUS-144949
...
44
HARDENED WASHER HUS-133943
...
45
COVER.MANDREL.46 HUS-145059
...
46
SCREW.1/4-20X5/8 HUS-137729
...
47
BELT-V.SEC.46.KEL HUS-144959
...
48
V BELT MOWER HUS-158818
...
49
SUB= 73690600 HUS-73680600
...
50
BOLT.3/8-16X1.50 HUS-72110612
...
51
WASHER.FELT. HUS-153390
...
52
"PULLEY IDLER,FLAT" HUS-156493
...
53
WASHER HUS-19131312
...
58
"LINK BRAKE, 43""" HUS-156488
...
59
"GUIDE BELT,46""MOW" HUS-157034
...
60
ARM ASM BRAKE HUS-156722
...
61
BOLT.SHOULDER.5/16-18 HUS-161315
...
62
RETURN SPRING HUS-131870
...
63
"BRKT ROD,CLUTCH" HUS-156473
...
67
BOLT HUS-74760512
...
68
SUB= 157060 HUS-156487
...
69
NUT HUS-73350600
...
70
TRUNION ADJ HUS-142028
...
71
PIVOT ROD HUS-133551
...
72
WASHER HUS-19131316
...
73
COTTER PIN HUS-76020412
...
74
LINK CLUTCH HUS-156474
...
75
ARM EXTENSION HUS-159145
...
76
LEVER.ASM.CLUTCH HUS-160570
...
77
SPRING KEEPER HUS-127845
...
78
BUSHING HUS-127498
...
79
SPRING.CLUTCH.MWR HUS-153701
...
80
WASHER HUS-121748X
...
81
RING HUS-12000029
...
82
RETAINER M HUS-4497H
...
83
SHOULDER BOLT HUS-128903
...
84
KNOB.RD.7/16-14 HUS-162132
...
85
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
86
"BOLT CARR, SH" HUS-158565
...
87
BRACKET.EXTENSION HUS-158373
...
88
BOLT HUS-74780616
...
92
NUT HUS-73800600
...
101
COVER.MULCHING. HUS-145579
...
102
SCREW HUS-71161010
...
103
LOCKWASHER HUS-10071000
...
104
WASHER #10 HUS-19061216
...
105
LATCH ASSY.BAGGER HUS-160793
...
106
WELDNUT HUS-2029J
...
116
BOLT M HUS-4898H
...
117
WHEEL.GAGE.BLK.PL HUS-105455X
...
118
LOCKNUT HUS-73930600
...
119
WASHER HUS-19121414
...
120
WASHER HUS-19171512
...
126
ARM IDLER HUS-156472
...
127
PULLEY.IDLER.4.25 HUS-146763
...
128
WASHER .T HUS-6266H
...
129
WASHER T HUS-19133808
...
xx
MANDREL SERV ASM HUS-143651
...
xx
DECK COMPLETE HUS-164846
