Husqvarna 8196A99 (1999) Tractor

Model: 8196A99 (1999)

Back To Assemblies

Save Part Not Listed?
product name

LIFT

...
...
1
LEVER ROD LT HUS-121006X
...
2
LEVER ASSY LIFT.RH. HUS-159188
...
6
"BOLT,HEX" HUS-74780624
...
7
GRIP HUS-109413X
...
8
SUB= 125925X HUS-122365X
...
9
SUB= 125925X HUS-122364X
...
10
SPRING T HUS-2876H
...
11
LINK.LIFT.LH.GTV HUS-145537
...
12
LINK.LIFT.RH.GTV. HUS-145536
...
13
SUB= 85902 HUS-4939M
...
14
LEVER.ASM.LIFT.RH HUS-159189
...
15
LINK.FRONT HUS-127218
...
16
NUT HUS-73350800
...
17
TRUNION HUS-130171
...
18
NUT LTV HUS-73680800
...
19
ARM SUSP REAR HUS-139868
...
20
RETAINER SPRING HUS-163552
...
23
NUT T HUS-110807X
...
24
WASHER HUS-19131016
...
25
SPRING T HUS-2876H
...
26
SUB= 3145 HUS-76020308
...
27
SUB= 532126971 HUS-126971X
...
28
NUT HUS-73350600
...
29
KNOB INF 3/8-16 HUS-138057
...
30
TRUNNION HUS-150233
...
31
BEARING PVT LH HUS-140302
...
32
NUT.CROWNLOCK.3/8 HUS-73540600
...
36
POINTER-INDICAT HUS-155097
...
37
"PLUG,HOLE" HUS-123935X
...
38
SCREW HUS-17490512
...
39
STOP.OVER.CENTER HUS-142992
...
40
WASHER HUS-19112410
...
41
HEIGHT INDICATOR HUS-123934X
...
42
SUB= 73690600 HUS-73680600
...
43
WASHER GT HUS-19131612
...
44
BOLT HUS-72240608
...
46
E-RING HUS-12000022
...
47
WASHER HUS-19292016
...
49
NUT.HXFLG.LOCK. HUS-145212
...
50
NUT PUSH M HUS-110452X

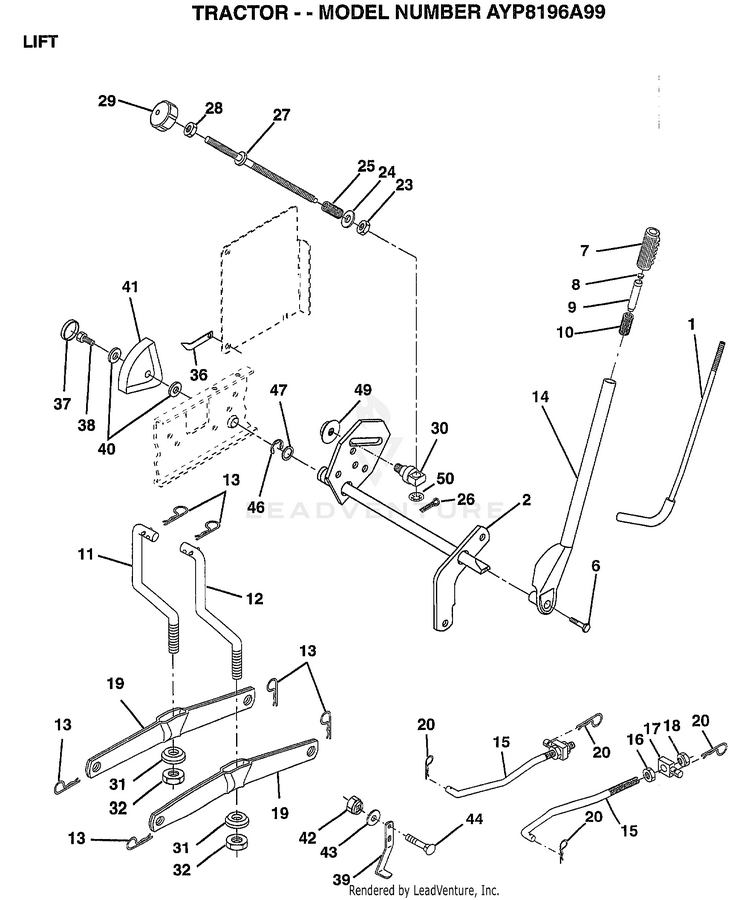

Schematic Image Zoomed
