Husqvarna 8024 ST - HU8024STA (2002-09) Snow Blower

Model: 8024 ST - HU8024STA (2002-09)

Back To Assemblies

Save Part Not Listed?
product name

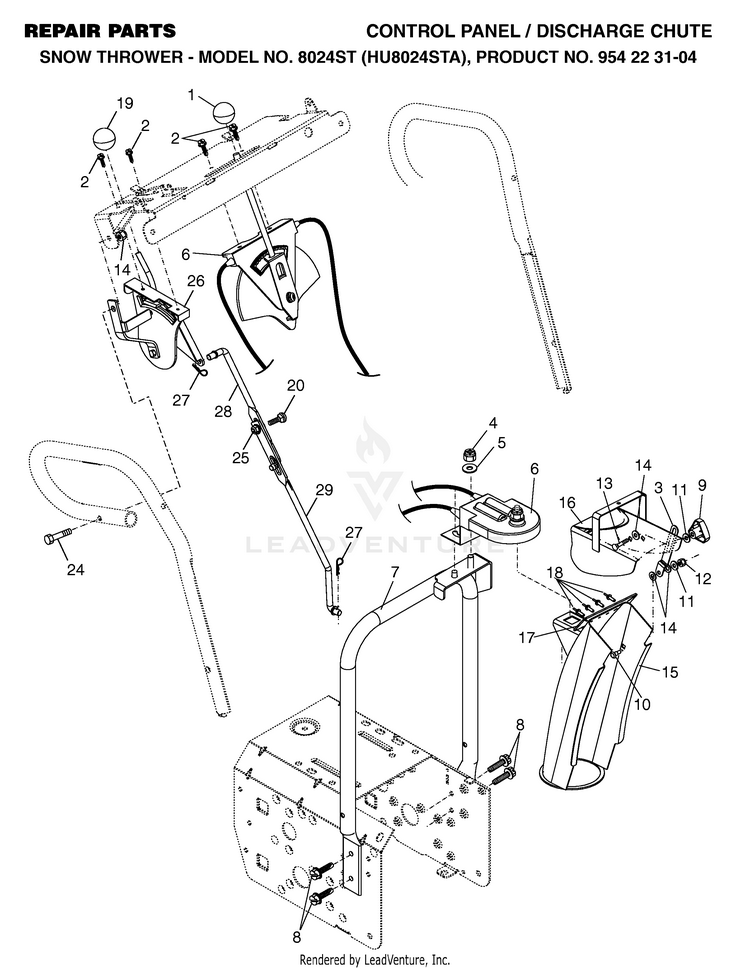

CONTROL PANEL & DISCHARGE CHUTE

...
...
17
SEAL.DEFLECTOR HUS-532420325
...
27
SPRING RETAINER HUS-532169675
...
25
GSPW Hardware HUS-596039201
...
14
WASHER, NYLON FRICTION HUS-532179246
...
26
KIT.CONTROL.SPEED.SELECTOR.SNO HUS-532429667
...
5
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
7
SUPPORT.WELDMENT.ROTATOR.BLACK HUS-532443617
...
28
ROD, UPPER SPEED CONTROL HUS-532180445
...
12
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
3
STRAP.SLOTTED.SERVICE HUS-532435798
...
16
DEFLECTOR ASSEMBLY RIVETED HUS-590518207
...
19
RP KNOB, SPEED CONTROL LEVER HUS-532183333
...
13
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
8
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
24
SCREW HUS-874780528
...
2
SCREW #10-24 X 5/8 HUS-817501010
...
1
KNOB LEVER, BLACK HUS-532414280
...
10
BOLT, SHOULDER HUS-532179829
...
15
DEFLECTOR ASSEMBLY RIVETED HUS-590518207
...
29
ROD, LOWER SPEED CONTROL HUS-532180446
...
20
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
11
WASHER.20X8.5 HUS-532155415
...
4
Nuts HUS-596322601
...
9
HANDLE.KNOB.BLACK HUS-532185577
...
18
RIVET BLIND HUS-532128415
...
6
CONTROL ASSY, CHUTE ROTATER HUS-532178659
