Husqvarna 8024 ST - HU8024STA (2002-09) Snow Blower

Model: 8024 ST - HU8024STA (2002-09)

Back To Assemblies

Save Part Not Listed?
product name

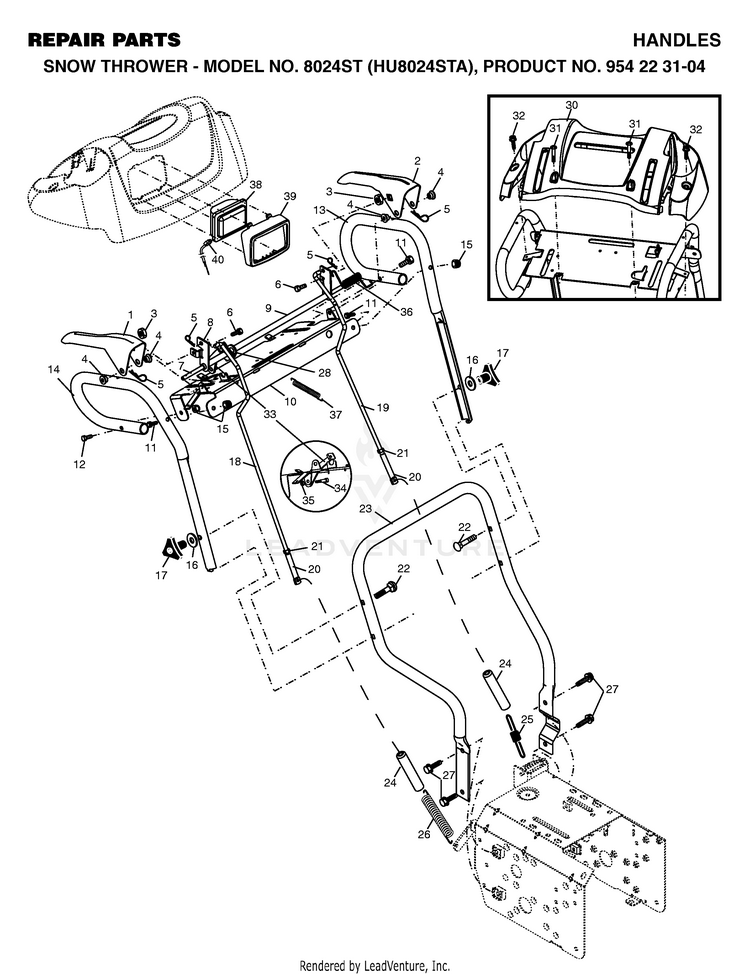

HANDLE & CONTROLS

...
...
27
Capscrew, Hex Head, Flanged 3/8-16 x 1 HUS-871210616
...
17
KNOB.HANDLE.3/8.TRI-POINT.BLAC HUS-532178899
...
26
SPRING, AUGER CONTROL HUS-532178669
...
13
TUBE.HANDLE.LOOP.LH.BLACK HUS-532436114
...
30
PANEL.CONSOLE.HEADLIGHTS HUS-532183346
...
25
SPRING, TRACTION DRIVE HUS-532180926
...
37
SPRING, INTERLOCK HUS-532178658
...
9
TUBE.WELDMENT.INTERLOCK.LH HUS-532178651
...
8
TUBE ASSM, INTERLOCK HUS-532184003
...
36
SPRING.TORSION.LEVER HUS-532443215
...
18
ROD.IMPELLER.CONTROL.SNOW HUS-580797701
...
10
PANEL, CONTROL HUS-532178645
...
16
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
39
BEZEL.HEADLIGHT.BLACK HUS-532178668
...
32
SCREW HUS-532750634
...
14
TUBE.HANDLE.LOOP.RH.BLACK HUS-532407857
...
22
BOLT 3/8-16 X 2-1/4 HUS-872120618
...
20
ROD, END CONTROL HUS-532180428
...
3
NUT, CAGE 1/4-20 HUS-532179439
...
12
SCREW HUS-874780528
...
4
BUSHING, FLANGE HUS-532178888
...
28
PANEL CLIP HUS-532180494
...
40
HARNESS.WIRE.HALOGEN HUS-532180964
...
34
BOLT, SHOULDER HUS-532183518
...
5
SPRING RETAINER HUS-532169675
...
38
HEADLIGHT.HALOGEN.SNOW HUS-532178666
...
19
ROD.TRACTION.CONTROL HUS-532179098
...
35
HUS-873850400
...
23
TUBE.LOWER.HANDLE.24.BLACK HUS-532184087
...
33
ARM.LATCH.INTERLOCK.YELLOW HUS-532184111
...
7
ROD.INTERLOCK HUS-532178652
...
2
LEVER, TRACTION DRIVE CONTROL HUS-532184109
...
6
SCREW HEX HUS-532199640
...
24
SLEEVE, SPRING HUS-532180447
...
11
Bolts HUS-596582201
...
31
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
21
Nuts HUS-596436301
...
1
KIT.LEVER.CONTROL.RH.AUGER HUS-532411423
...
15
Hardware HUS-596040501
