Husqvarna 8024 ST - HU8024STA (2002-09) Snow Blower

Model: 8024 ST - HU8024STA (2002-09)

Back To Assemblies

Save Part Not Listed?
product name

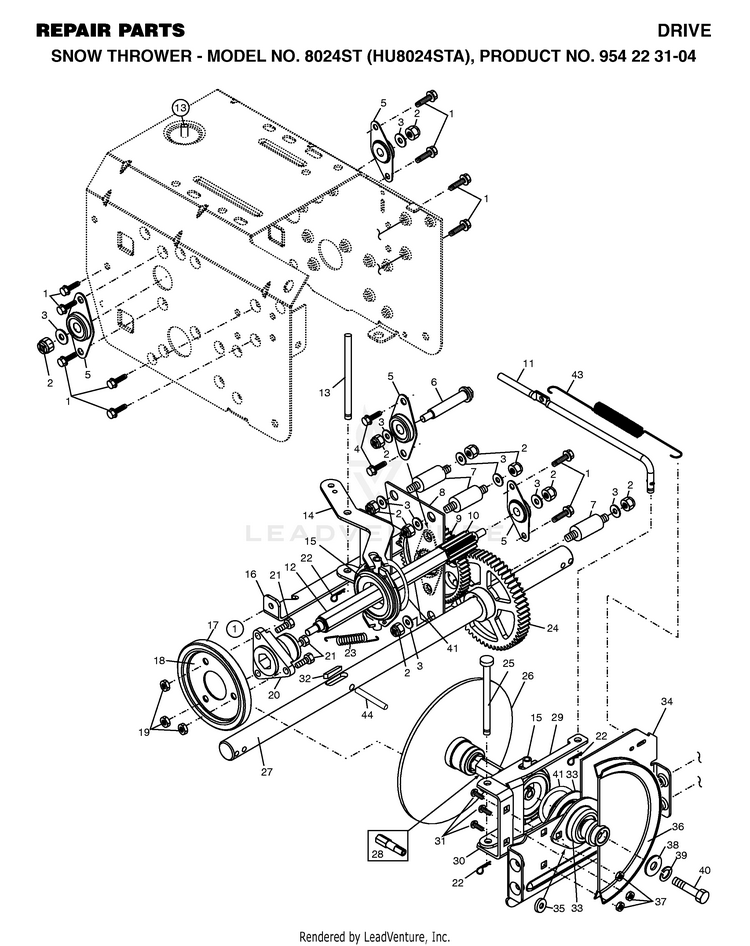

DRIVE

...
...
22
RETAINER CLIP PM HUS-532085179
...
16
BRACKET.SHIFT.PIVOT.BLACK HUS-532435793
...
25
PIN, PIVOT LEVER HUS-532178695
...
3
WASHER.20X8.5 HUS-532155415
...
14
LEVER, SPEED CONTROL HUS-532184080
...
13
PIN, PIVOT HUS-532178807
...
9
KIT.GEAR.DRIVE.SNOW HUS-532441417
...
29
LEVER.SHIFTER.PLATE.BLACK HUS-532184077
...
17
RING.RUBBER.4.5".SNOW.DR(2 2MC HUS-585021001
...
44
PIN.ROLL.3/16 HUS-532184206
...
4
Screws HUS-596030701
...
34
PLATE.DRIVE.MOUNTING.BLACK HUS-532184075
...
36
PULLEY, TRACTION DRIVE HUS-532175348
...
1
SCREW HUS-532146315
...
35
SPACER, BEARING HUS-532182504
...
18
PLATE.RUBBER.WHEEL.BLACK HUS-532435789
...
33
BEARING FLANGE HUS-532188909
...
31
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
32
KEY, SQUARE 1/4 X .875 HUS-532189282
...
11
ROD, CLUTCH HUS-532178812
...
23
SPRING, BIAS HUS-532180135
...
28
SHAFT.HEX.SHORT HUS-532197764
...
27
SHAFT.AXLE.16".POWER.STEER.SNO HUS-532178621
...
40
Screw, Hex Head 5/16-18 x 3/4 HUS-874950512
...
37
GSPW Hardware HUS-596039201
...
43
SPRING.RETURN HUS-532179095
...
30
BRACKET, SHIFTER SUPPORT HUS-532175349
...
7
SPACER, PLATE HUS-532179270
...
8
PLATE AUXILIARY HUS-532184079
...
38
STEEL WASHER HUS-532059289
...
21
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
10
GEAR, PINION HUS-532180065
...
19
NUT.CENTERLOCK.5/16- HUS-873930500
...
39
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
15
BEARING HOUSING ASSY TRUNNION HUS-597412801
...
24
KIT.GEAR.DRIVE.SNOW HUS-532441417
...
6
SHAFT, AUXILIARY HUS-532180134
...
2
Hardware HUS-596040501
...
5
BEARING, FLANGE HUS-532180017
...
12
SHAFT.HEX.LONG HUS-532180066
...
41
RING.RETAINING. HUS-583607301
...
26
DRIVE PLATE WELDMENT HUS-532197763
...
20
HUB, RUBBER WHEEL HUS-532178613
