Husqvarna 7187A89 (1998) Tractor

Model: 7187A89 (1998)

Back To Assemblies

Save Part Not Listed?
product name

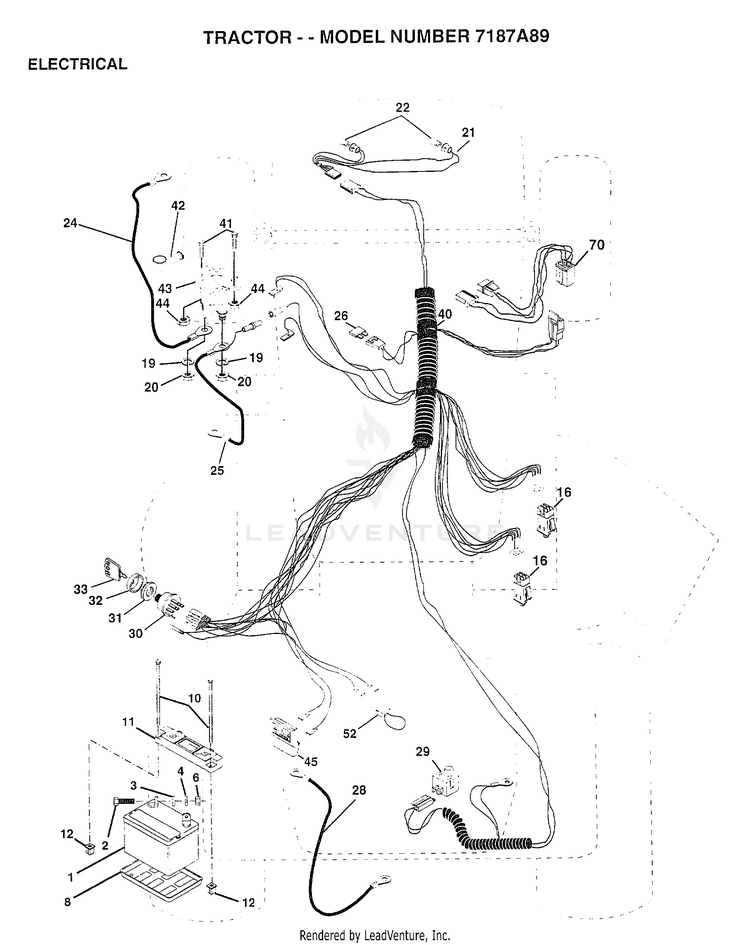

ELECTRICAL

...
...
1
SUB= 123899X HUS-163465
...
3
WASHER HUS-19091016
...
4
LOCKWASHER HUS-10040400
...
6
SUB= 50675 HUS-73220400
...
8
TRAY BATTERY HUS-17603J
...
10
SUB= 150177 HUS-145211
...
11
HOLDDOWN BATTERY HUS-150109
...
12
SUB= 150177 HUS-145769
...
16
SWITCH INTERLOCK HUS-153664
...
19
SUB= 10040400 HUS-10090400
...
20
NUT HUS-73350400
...
21
"HARNESS,LIGHT SOC" HUS-136850
...
22
HEADLAMP BULB HUS-4152J
...
24
"CABLE T, BATTERY" HUS-4799J
...
25
CABLE.6GA.22W/16W HUS-146148
...
26
FUSE HYT HUS-108824X
...
28
CABLE.GRND.6GA.21 HUS-145491
...
29
SWITCH SEAT HUS-121305X
...
30
SWITCH IGN 4POS HUS-140301
...
31
NUT IGNITION HUS-124211X
...
32
COVER KEY SWITCH HUS-141226
...
33
KEY HUS-122147X
...
40
HARNESS-IGNITION HUS-156442
...
41
BOLT HXHD FIN HUS-71110408
...
42
SUB= 154336 HUS-131563
...
43
SUB= 146154 HUS-145673
...
44
NUT HXKEP 1/4X20 HUS-73640400
...
45
SUB= 122822X HUS-121433X
...
52
PROTECTION LOOP HUS-141940
...
55
SCREW LT HUS-17490508
...
70
HARNESS.ENG.DUAL HUS-140422
