product name

Husqvarna 7022R Walk Behind Mower

Model: 7022R

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
64
HONDA GCV160-LAOS3B FOR SERVICE & PARTS 1-800-426-7701 HUS-000000000
...
83
SCREW HUS-817021008
...
44
HOUSING.22+.RWD.HUSQ.ORANGE For 96143010601 HUS-532446261
...
56
SCREW.HX.13X.750 HUS-817411312
...
1
HANDLE.UPPER.3.POS.BS.AW2.GREY HUS-580638706
...
97
BRACKET.DRIVE.COVER.RGD. HUS-581313802
...
96
CLIP.CABLE.BLK HUS-532197991
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
28
BOLT.CARRIAGE.LN.5/16-18X.5/8 For 96143010601 HUS-586212501
...
3
BRACKET.UPSTOP.RT HUS-532430034
...
22
SCREW.PAN.HEAD.#10 HUS-532141841
...
53
BOLT.5/16HEX.WHS.HD HUS-817000510
...
32
LATCH.DOOR.ZINC HUS-532441192
...
19
GUIDE.ROPE.BLK.ZINC.CHROM HUS-581902101
...
47
BLADE.22PLUS HUS-532420463
...
40
BRACKET.ASM.HANDLE.RT.22+.GREY RIGHT HUS-585900803
...
57
GSPW Hardware HUS-596039201
...
31
FRAME.GBAG.22+.BLK HUS-585054702
...
38
DEFLECTOR.CLIPPING.22.BLACK HUS-532426129
...
24
SPRING.RH.GRAY HUS-532419948
...
44
KIT.HSG.22+RGD.MC.WO.ORG.CESYM For 96143010600 HUS-532432263
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
7
SCREW HUS-532178848
...
85
BRACKET.SKIRT.22+.BZP HUS-532434530
...
9
DOOR ASSY REAR;22+.HUSQVARNA N HUS-593304501
...
18
T-KNOB.NEW ROPE GUIDE HUS-581912601
...
49
Washers HUS-596238701
...
21
SPRING.LH.BLACK HUS-532419949
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
30
GBAG.A3610010.BLK.GENERIC HUS-580947302
...
28
Bolts For 96143010600 HUS-596136401
...
2
CABLE.MZR.50.SNAP-IN HUS-532427497
...
17
BAFFLE.REAR.22+RGD.AWD.PLASTIC HUS-581782101
...
115
SCREW.HI-LO. 5/16 X 1.00 HUS-584299401
...
48
WASHER,HARDEN HUS-532851074
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
33
DOOR.MULCH.22+.BLK HUS-594942002
...
34
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
58
HANDLE.LOWER.22+BT.2PC.GRY HUS-532441197
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
8
BAIL.OVER.MOLD.ERGO.MZR.ORANGE HUS-580849102
...
13
PLUG.PLASTIC.7/8".14-20.GAUGE HUS-532437516
...
39
BRACKET.ASM.HANDLE.LT.22+.GREY LEFT HUS-585900703
...
99
COVER.ASM.FRONT.HUSQ.22+RGD HUS-585668702
...
43
NUT.HEX.FLANGE.1/4 HUS-532191730
...
45
ROD.HINGE.21 HUS-532175650
...
51
BAFFLE.FRONT.22.PLUS HUS-532430599
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
20
SKIRT.REAR.22PLUS.RGD.LW(2 2MC HUS-532444501
...
11
COTTER.HAIRPIN.DOOR/HANDLE.PIV HUS-532425575
...
42
SPRING.TORSION HUS-532193000
...
46
ADAPTER.BLADE.25MM.3MPH HUS-581851501

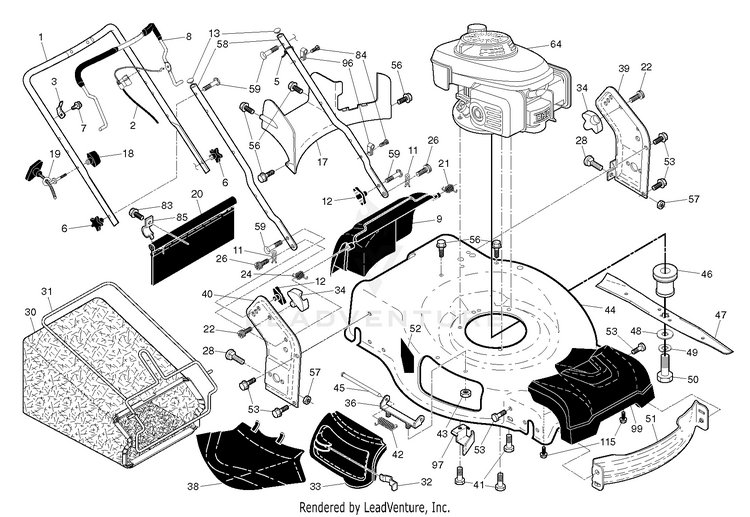

Schematic Image Zoomed
