Husqvarna 7022R Walk Behind Mower

Model: 7022R

Back To Assemblies

Save Part Not Listed?
product name

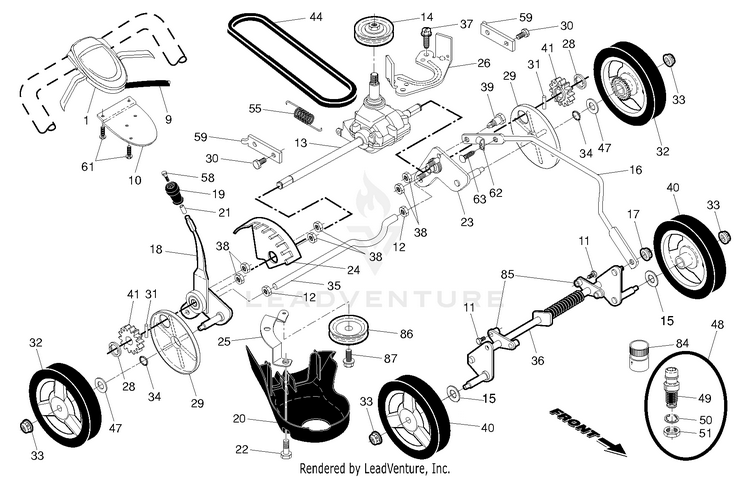

DRIVE

...
...
62
CLIP.CABLE.BLK HUS-532197991
...
47
WASHER FLUT HUS-532067725
...
21
SCREW.PLASTIC.ANCHOR.5/16 HUS-532435242
...
35
AXLE.REAR.RGD HUS-532430598
...
15
WASHER.FLAT.1/2 For 96143010600 HUS-532088348
...
86
PULLEY.RWD.IDLER.DBL SEAL HUS-587969201
...
13
TRANMISSION.ASM.22+RGD.W/IDLER HUS-581975507
...
38
NUT.HEX.FLANGE.1/4 HUS-532191730
...
19
KNOB.SEL.SPRING.22+.SP.RIB.BLK HUS-532433996
...
36
AXLE.ASM.FRT.RGD.BLACK.ZINC HUS-583762601
...
31
PAWL, DRIVE HUS-532404845
...
55
SPRING.RETURN.AUTO. HUS-581351301
...
59
BRACKET.SUPPORT.22+RWGD.BZP HUS-532442113
...
51
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
18
HUS-532436445
...
16
ROD.CONNECTING.RGD.22+.HW.BLAC HUS-532430030
...
11
SCREW.HX.13X.750 HUS-817411312
...
49
KIT.WASH-OUT.PORT HUS-532421114
...
10
BRACKET.DRIVE.CONTR.GEN2.BLACK HUS-532432790
...
23
Wheel Axle Assembly, LH HUS-532432432
...
30
BOLT.5/16HEX.WHS.HD HUS-817000510
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
48
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
9
CABLE.DRIVE.RWD.WALK. HUS-581952101
...
84
COUPLING.QUICK CONNECT HUS-532416405
...
22
BOLT.5/16HEX.WHS.HD HUS-817000510
...
32
WHEEL.8X1.75.3SPK.RAD3.GREY HUS-581685101
...
44
BELT V3L 35.42, CLUTCHING COVE HUS-580364611
...
20
COVER.REAR.DRIVE.22+2013 HUS-580806901
...
58
SCREW.12-14X1.500 HUS-532435241
...
14
PULLEY HUS-532194128
...
41
PINIION.14.TOOTH.RGD HUS-532404835
...
34
O-RING..070X.487.NEOPRENE HUS-532197480
...
50
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
37
SCREW HUS-532163409
...
28
E-RING 7/16 RE HUS-812000058
...
26
BRACKET.TRANS.BELTKEEP.21 RWD HUS-589318302
...
63
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
87
SCREW HUS-581127601
...
61
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
40
WHEEL.8.1.75,H3SPK.RAD3.GY.TB1 HUS-532401272
...
25
BRACKET.DRIVE.COVER.RGD. HUS-581313802
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
12
NUT.HEX.1/2-20 HUS-873940800
...
1
CONTROL.DR.AW2.22+.BLK.GEN Includes Cable HUS-589818808
...
24
BRACKET.WHL.ADJ.9.POS.W/PAD HUS-532433511
...
17
NUT.LOCK.5/16-18 HUS-532751153
...
85
BRACKET.FRT.AXLE.SUPPORT HUS-532439077
