Husqvarna 7022F Walk Behind Mower

Model: 7022F

Save Part Not Listed?
product name

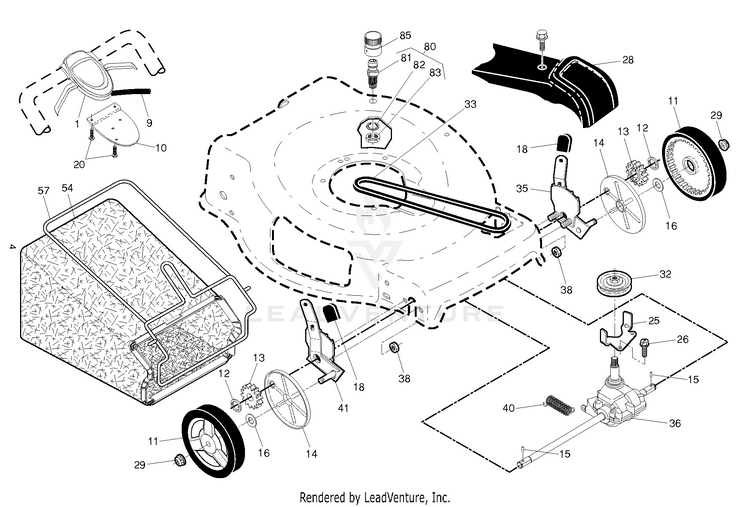

DRIVE

...
...
28
COVER.DRIVE.22.LABEL.HUSQVARNA For 96143010500 HUS-532421097
...
15
PAWL, DRIVE HUS-532404845
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
57
FRAME.GBAG.22+.BLK HUS-585054702
...
13
PINION.14.TEETH.FGD HUS-532403849
...
20
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
38
NUT.HEX.FLANGE.1/4 HUS-532191730
...
41
ADJUSTER.ASM.22+FGD.RF /AWD RT HUS-581497908
...
1
CNTROL.AW22+FGD.ST.GEN.BLK/B HUS-579708910
...
10
BRACKET.DRIVE.CONTR.GEN2.BLACK HUS-532432790
...
80
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
83
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
16
WASHER FLUT HUS-532067725
...
29
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
12
E-RING 7/16 RE HUS-812000058
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
28
COVER.DR.22.MB LABEL HUSQ E/F For 96143010501 HUS-586691801
...
18
SELECTOR KNOB HUS-532701037
...
40
SPRING HUS-532406558
...
54
GBAG.A3610010.BLK.GENERIC HUS-580947302
...
36
TRANSMISSION.22+.FWGD.SS/VS HUS-589600601
...
9
CABLE.CONTROL.22FGD.GEN2 HUS-532431649
...
82
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
81
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
25
BRACKET.BELT.GUIDE.22+FGD.BZP HUS-532431711
...
35
ADJUSTER.ASM.22+FGD.LF /AWD LT HUS-581497907
...
33
BELT.DRIVE.FGD. HUS-532196853
...
26
SCREW HUS-532163409
...
11
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 HUS-532401274
...
85
COUPLING.QUICK CONNECT HUS-532416405

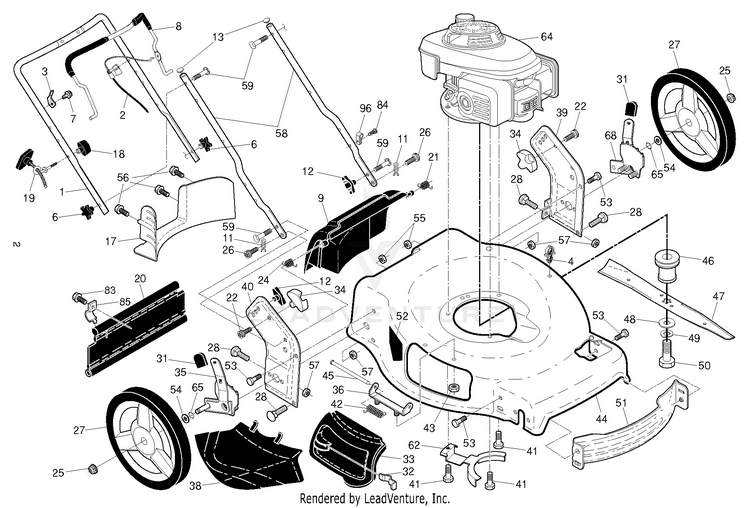

FRAME

...
...
38
DEFLECTOR.CLIPPING.22.BLACK HUS-532426129
...
49
Washers HUS-596238701
...
39
BRACKET.ASM.HANDLE.LT.22+.GREY LH HUS-585900703
...
85
BRACKET.SKIRT.22+.BZP HUS-532434530
...
96
CLIP.CABLE.BLK HUS-532197991
...
33

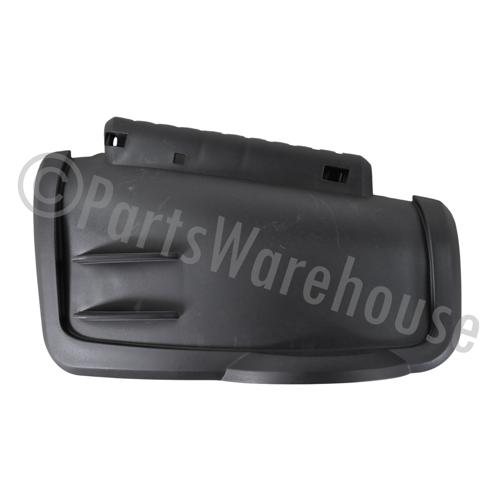

DOOR.MULCH.22+.BLK HUS-594942002
...
27
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
13
PLUG.PLASTIC.7/8".14-20.GAUGE HUS-532437516
...
64
GCV160-LAOS3B HUS-000000000
...
25
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
62
BRACKET.KEEPER.BELT HUS-532425711
...
54
WASHER.FLAT.1/2 HUS-532088348
...
28
BOLT.CARRIAGE.LN.5/16-18X.5/8 For 96143010501 HUS-586212501
...
35
ADJUSTER.ASM.9POS.HW.R/R RH HUS-532431140
...
24
SPRING.RH.GRAY HUS-532419948
...
32
LATCH.DOOR.ZINC HUS-532441192
...
4
PUSH CLIP HUS-532145006
...
7
SCREW HUS-532178848
...
44
HOUSING.22+.FWD.MC.ZWO.ORANGE. HUS-581690801
...
40
BRACKET.ASM.HANDLE.RT.22+.GREY RH HUS-585900803
...
11
COTTER.HAIRPIN.DOOR/HANDLE.PIV HUS-532425575
...
57
GSPW Hardware HUS-596039201
...
19
GUIDE.ROPE.BLK.ZINC.CHROM HUS-581902101
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
46
ADAPTOR BLADE 25MM STAR HUS-581473301
...
34
BRACKET.GRASSBAG.ATTACHING.BLK HUS-532438134
...
9
DOOR ASSY REAR;22+.HUSQVARNA N HUS-593304501
...
55
NUT.HEX.FLANGE.1/4 HUS-532191730
...
47
BLADE.22+.PREMIUM/PREC.FGD/RGD HUS-532421825
...
2
CABLE.ASM.ZONE.CONTROL HUS-532415350
...
1
HANDLE.UP.3POS.BS.AW2.GREY HUS-585854806
...
21
SPRING.LH.BLACK HUS-532419949
...
48
WASHER,HARDEN HUS-532851074
...
22
SCREW.PAN.HEAD.#10 HUS-532141841
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
43
NUT.HEX.FLANGE.1/4 HUS-532191730
...
56
SCREW.HX.13X.750 HUS-817411312
...
53
BOLT.5/16HEX.WHS.HD HUS-817000510
...
31
SELECTOR KNOB HUS-532701037
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
17
BAFFLE.22PLUS.FGD.REAR. HUS-532427307
...
45
ROD.HINGE.21 HUS-532175650
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
8
BAIL.OVER.MOLD.ERGO.MZR.ORANGE HUS-580849102
...
58
HANDLE.LOWER.ASM.W/PLUG.22+.49 HUS-593270403
...
68
ADJUSTER.ASM.9POS.HW.R/L LH HUS-532431141
...
3
BRACKET.UPSTOP.RT HUS-532430034
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
28
Bolts For 96143010500 HUS-596136401
...
42
SPRING.TORSION HUS-532193000
...
18
T-KNOB.NEW ROPE GUIDE HUS-581912601
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
51
BAFFLE.FRONT.22.PLUS HUS-532430599
...
83
SCREW HUS-817021008
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
20
SKIRT.REAR.22PLUS.RGD/FGD.NEW HUS-532429157
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
