Husqvarna 7022 RLS - 96143007800 (2010-12) Walk Behind Mower

Model: 7022 RLS - 96143007800 (2010-12)

Back To Assemblies

Save Part Not Listed?
product name

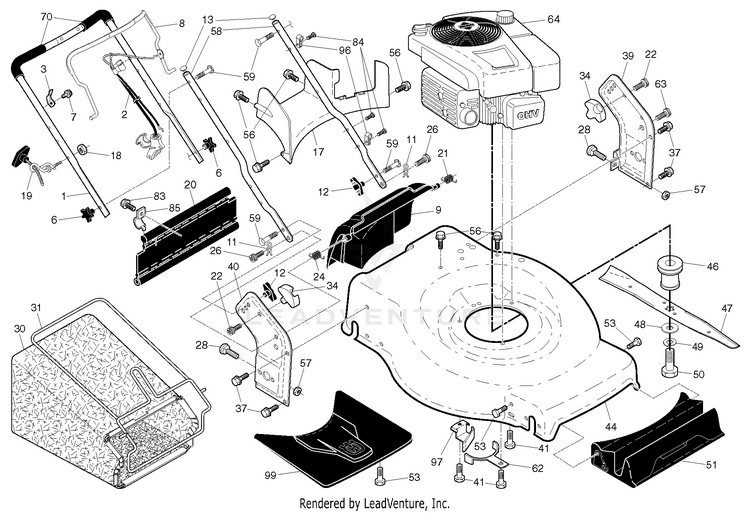

FRAME

...
...
17
BAFFLE.REAR.22+RGD.AWD.PLASTIC HUS-581782101
...
39
BRACKET.ASM.HNDL.LT.22+.GREY HUS-581353702
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
20
SKIRT.REAR.22PLUS.RGD/FGD.NEW HUS-532429157
...
99
COVER.ASM.FRONT.SHROUD.HUSQ. HUS-532437389
...
30
RB GBAG.B55110010.GENERIC.SERV HUS-580943401
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
56
SCREW.HX.13X.750 HUS-817411312
...
53
SCREW.HI-LO.5/16 X.75 HUS-532437345
...
24
SPRING.RH.GRAY HUS-532419948
...
8
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
96
CLIP.CABLE.BLK HUS-532197991
...
62
BRACKET.KEEPER.BELT HUS-532425711
...
44
HOUSING.22+.RWD.WO/PORT.ORANGE HUS-532438484
...
28
Bolts HUS-596136401
...
70
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
63
SCREW HUS-532178848
...
47
BLADE.22+FUSION.PREM/PREC HUS-532437601
...
51
BAFFLE.FRONT.22PLUS.PLASTIC RP HUS-532437131
...
97
BRACKET.BELT.GUIDE.22+.004 BZP HUS-580606902
...
58
HANDLE.LOWER.22+BT.2PC.GRY HUS-532441197
...
31
FRAME.GBAG.22+.BLK HUS-585054702
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
40
BRACKET.ASM.HNDL.RT.22+.GREY HUS-581353602
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
48
WASHER,HARDEN HUS-532851074
...
64
B&S 11P902-1556-B1 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
21
SPRING.LH.BLACK HUS-532419949
...
37
BOLT.5/16HEX.WHS.HD HUS-817000510
...
1
HANDLE.ASM.UPPER.W/GRIP Includes Foam Grip HUS-532186296
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
49
Washers HUS-596238701
...
34
BRACKET.GRASSBAG.ATTACHING.BLK HUS-532438134
...
3
BRACKET.UPSTOP.RT HUS-532430034
...
7
SCREW HUS-532750634
...
11
COTTER.HAIRPIN.DOOR/HANDLE.PIV HUS-532425575
...
57
GSPW Hardware HUS-596039201
...
46
ADAPTOR BLADE 25MM STAR HUS-581473301
...
9
DOOR ASSY REAR;22+.HUSQVARNA N HUS-593304501
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
22
SCREW.PAN.HEAD.#10 HUS-532141841
...
85
BRACKET.SKIRT.22+.BZP HUS-532434530
...
83
SCREW HUS-817021008
...
2
CABLE.ASM.MZR/DP.B&SPRO.RD.ERG HUS-583494101
...
13
PLUG.PLASTIC.7/8".14-20.GAUGE HUS-532437516
