Husqvarna 7022 RLS - 96143006400 (2010-02) Walk Behind Mower

Model: 7022 RLS - 96143006400 (2010-02)

Save Part Not Listed?
product name

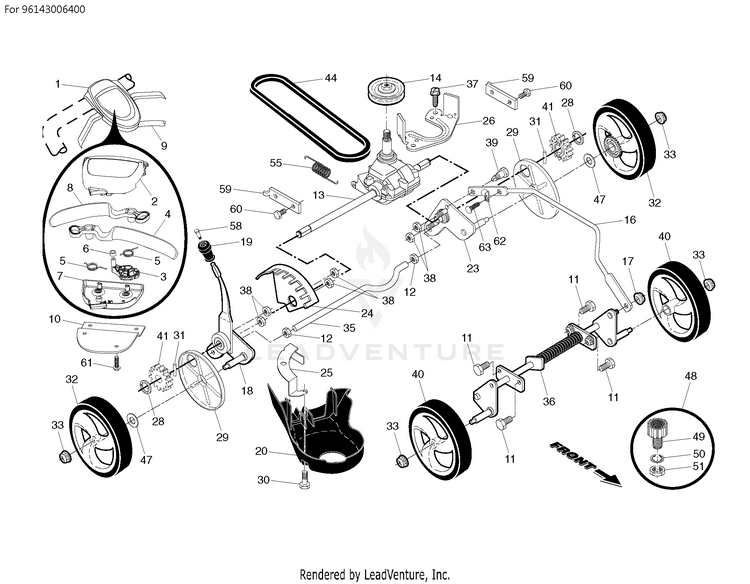

DRIVE

...
...
23
Wheel Axle Assembly, LH HUS-532432432
...
12
Nut, Hex HUS-532426103
...
20
COVER.REAR.DRIVE.22+2013 HUS-580806901
...
55
SPRING HUS-532406558
...
49
KIT.WASH-OUT.PORT HUS-532421114
...
63
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
18
KIT.SELECTOR.ASM.432431 HUS-583509001
...
13
TRANSMISSION.22+.RGD.AW2/EZ2 HUS-532430787
...
35
AXLE.REAR.RGD HUS-532430598
...
6
BUSHING.CONTROL.CAM HUS-532432273
...
50
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
4
LEVER.CONTROL.LH.22+.CURVE.BLA HUS-532433087
...
62
CLIP.CABLE.BLK HUS-532197991
...
60
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
10
BRACKET.DRIVE.CONTR.GEN2.BLACK HUS-532432790
...
28
E-RING 7/16 RE HUS-812000058
...
31
PAWL, DRIVE HUS-532404845
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
5
SPRING, DRIVE CONTROL HUS-532420381
...
30
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
2
RP CASE.CONT.ROL.TOP.HUSQV. HUS-532431638
...
25
BRACKET.DRIVE.COVER.RGD.BZP HUS-532426065
...
24
BRACKET.WHL.ADJ.9.POS.W/PAD HUS-532433511
...
51
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
7
COVER.DR.CONTROL.LOWER.GRAY HUS-532433057
...
3
CAM.GEN2.DUAL.TRIGGER HUS-532432286
...
44
BELT.DRIVE.RGD.PLUS HUS-532421527
...
11
SCREW HUS-817060408
...
61
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
38
NUT.HEX.FLANGE.1/4 HUS-532191730
...
8
LEVER.CONTROL.RH.22+.CURV.BLAC HUS-532432977
...
36
KIT.AXLE.FT.ASM.22+RGD. HUS-532441541
...
17
NUT.LOCK.5/16-18 HUS-532751153
...
32
WHEEL.8X1.75.3SPK.RAD3.GREY HUS-581685101
...
48
KIT.WASH-OUT.PORT HUS-532421114
...
41
PINIION.14.TOOTH.RGD HUS-532404835
...
59
BRACKET.SUPPORT.22+.RWGD.BZP HUS-532434460
...
14
PULLEY HUS-532194128
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
26
BRACKET.TRANS.BELTKEEP.21 RWD HUS-589318302
...
9
CABLE.CONTROL.22RGD.GEN2 HUS-532431650
...
58
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
37
SCREW HUS-532163409
...
16
KNOB.SEL.SPRING.22+.SP.RIB.BLK HUS-532433996
...
40
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
47
WASHER FLUT HUS-532067725
...
1
CONTROL.DR.AW2.22+.BLK.GEN Includes Cable HUS-589818808
...
19
KNOB.SEL.SPRING.22+.SP.RIB.BLK HUS-532433996

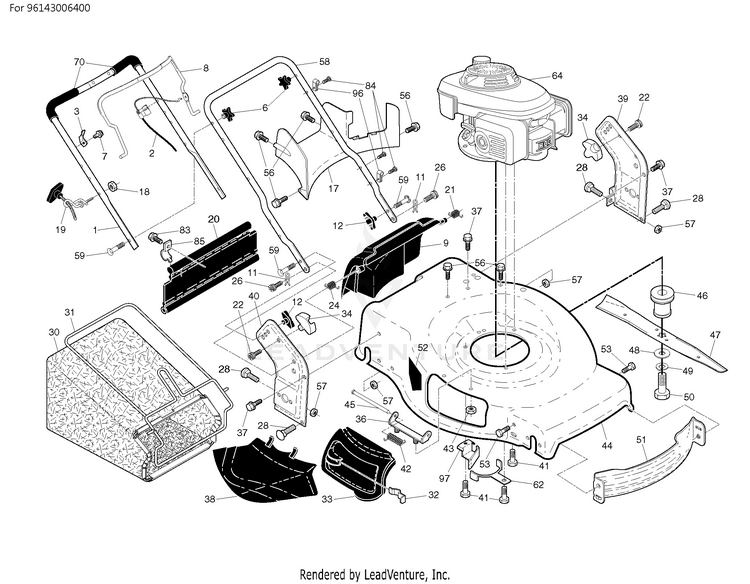

FRAME

...
...
40
BRACKET.ASM.HANDLE.RT.22+.FG HUS-581353603
...
30
Grassbag HUS-532429017
...
43
NUT.HEX.FLANGE.1/4 HUS-532191730
...
38
DEFLECTOR.CLIPPING.22.BLACK HUS-532426129
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
42
SPRING.TORSION HUS-532193000
...
46
ADAPTOR BLADE 25MM STAR HUS-581473301
...
32
Latch, Mulcher Door HUS-532419944
...
57
GSPW Hardware HUS-596039201
...
62
BRACKET.KEEPER.BELT HUS-532425711
...
33
DOOR.MULCH.22+.BLK HUS-594942002
...
28
Bolts HUS-596136401
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
39
BRACKET.ASM.HANDLE.LT.22+.FG HUS-581353703
...
83
SCREW HUS-817021008
...
24
SPRING.RH.GRAY HUS-532419948
...
8
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
58
KIT.HANDLE LOW.22+ BT.2PC.BLK HUS-501263201
...
9
DOOR ASSY REAR;22+.HUSQVARNA N HUS-593304501
...
85
BRACKET.SKIRT.22+.BZP HUS-532434530
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
48
WASHER,HARDEN HUS-532851074
...
70
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
96
CLIP.CABLE.BLK HUS-532197991
...
51
BAFFLE.FRONT.22.PLUS HUS-532430599
...
21
SPRING.LH.BLACK HUS-532419949
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
31
FRAME.GBAG.22+.BLK HUS-585054702
...
44
KIT.HSG.22+RGD.MC.WO.ORG.CESYM HUS-532432263
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
45
ROD.HINGE.21 HUS-532175650
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
1
HANDLE.ASM.UPPER.W/GRIP Includes Foam Grip HUS-532186296
...
7
SCREW HUS-532750634
...
47
BLADE.22PLUS HUS-532420463
...
11
COTTER.HAIRPIN.DOOR/HANDLE.PIV HUS-532425575
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
64
HONDA GCV160-LAS3A HUS-000000000
...
49
Washers HUS-596238701
...
97
BRACKET.BELT.GUIDE.22+.004 BZP HUS-580606902
...
20
SKIRT.REAR.22PLUS.RGD/FGD.NEW HUS-532429157
...
34
BRACKET.GRASSBAG.ATTAC HUS-532426064
...
22
SCREW.PAN.HEAD.#10 HUS-532141841
...
56
SCREW.HX.13X.750 HUS-817411312
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
17
BAFFLE.REAR.22+RGD.AWD.PLASTIC HUS-581782101
...
53
BOLT.5/16HEX.WHS.HD HUS-817000510
...
2
CABLE.MZR.RGD.22.B&S/HON.ERGO HUS-532440386
...
3
BRACKET.UPSTOP.RT HUS-532430034
