Husqvarna 7021 RS (96143003001) (2008-01) Walk Mower

Model: 7021 RS (96143003001) (2008-01)

Save Part Not Listed?
product name

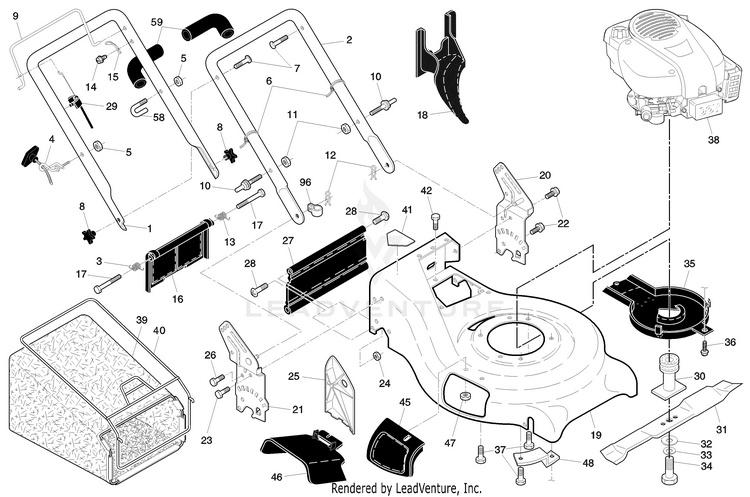

Walk Mower 7021 RS Repair Parts "A"

...
...
1
HANDLE.ASM.UP.OF/EZ.CR.GY.W/GR (Includes Foam Grip) HUS-583444201
...
2
HANDLE.LOWER.21.GREY HUS-532197202
...
3
SPRING.RH.REAR.DOOR.21.RWGD HUS-532405416
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
WIRE TIE HUS-532007192
...
7
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
8
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
9
BAIL.DSTRT.FL.AW.CREAS.ORANGE HUS-532197019
...
10
BOLT HUS-532188821
...
11
NUT.LOCK.5/16-18 HUS-532751153
...
12
HAIRPIN COTTER HUS-532051793
...
13
SPRING.LH.REAR.DOOR.21.RWGD HUS-532405415
...
14
SCREW HUS-532750634
...
15
BRACKET.UPSTOP HUS-532850733
...
16
DOOR.REAR.21.RWGD HUS-532401815
...
17
BOLT HUS-532184193
...
18
PLUG.MULCHER.RGD.21. HUS-532198170
...
19
HOUSING.21.RWD.MC.ORANGE.WALK HUS-532410453
...
20
BRACKET.HNDL.ASM.21.RWGD.LT.OR HUS-532418239
...
21
BRACKET.HNDL.ASM.21.RWGD.RT.OR HUS-532418251
...
22
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
23
Screws HUS-596031601
...
24
Hardware HUS-596040501
...
25
CLIPPING DEFLECTOR HUS-532161333
...
26
SCREW HUS-532163409
...
27
SKIRT.REAR.21.RWGD.BLACK(2 2M) HUS-532408442
...
28
HINGE SCREW HUS-532088652
...
29
CABLE.MZR.55.21.RW/FG.B&S/KOHL HUS-532436337
...
30
ADAPTER.BLADE/PULLEY.25M HUS-532421176
...
31
BLADE.21.PUSH/RWGD/FWG HUS-532189028
...
32
WASHER,HARDEN HUS-532851074
...
33
Washers HUS-596238701
...
34
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
35
KIT.SHIELD.DEBRIS.22FD/21RD HUS-585472601
...
36
SCREW.HEX.WSH HUS-532192325
...
37
BOLT 3/8-16X1-1/8 HUS-532150406
...
39
GBAG.92510010.BLK.GEN.SERVICE HUS-532410668
...
40
FRAME.GBAG.21.RWGD.SC HUS-532411951
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
42
SCREW HUS-532054583
...
45
DOOR.ASM.MULCH.21.RWD HUS-532183058
...
46
DEFLECTOR.21.MCUT.RWGD.GRAY HUS-532169699
...
47
NUT HUS-532088349
...
48
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
58
CLIP HUS-532182003
...
59
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
96
CLIP.CABLE.BLK HUS-532197991
...
xx
DECAL.CUTFINGER.CE.02 (not shown) HUS-581579101
...
xx
Owner’s Manual, English / French HUS-532418631

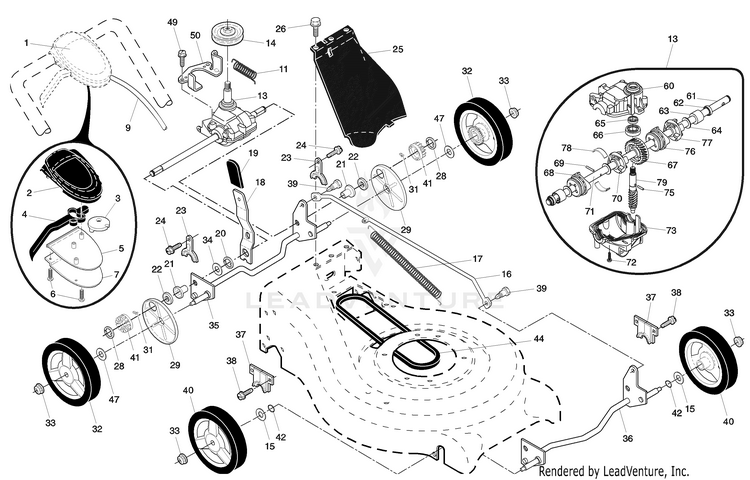

Walk Mower 7021 RS Repair parts "B"

...
...
1
CONTROL.DR.AW.21RGD.GRY/BLACK HUS-532425581
...
2
COVER TOP AUTO WALK CONTROL HUS-532406260
...
3
PULLEY.CAM.DRIVE.CONTROL.EZ HUS-532406262
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
5
COVER BOTTOM AUTO WLK CONTROL HUS-532406261
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
9
CABLE.ASSY.RGD.EZ.AUTO HUS-532406258
...
11
SPRING HUS-532406558
...
13
TRANSMISSION.21.RWGD.AUTO.SP (See Breakdown) HUS-532404839
...
14
PULLEY.1.PIECE HUS-532193443
...
15
WASHER.FLAT.1/2 HUS-532088348
...
16
ROD.CONNECTING.SPT.BLACK HUS-532407147
...
17
SPRING EXTENSION HUS-532409616
...
18
SPRING.SELECTOR.SPT.21.BZP HUS-532418835
...
19
KNOB.S/P.RWGD.EXT.ERGO.GREY HUS-532189808
...
20
E-RING HUS-812000022
...
21
BEARING.ASM.RGD.AUTO.SP HUS-532404838
...
22
BEARING.SUPPORT.ASM HUS-587070202
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
...
24
SCREW HUS-532057808
...
25
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
26
SCREW HUS-532750634
...
28
E-RING 7/16 RE HUS-812000058
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
31
PAWL, DRIVE HUS-532404845
...
32
WHEEL.8X1.75.3SPK.RAD3.GREY HUS-581685101
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
34
WASHER HUS-532851226
...
35
SHAFT.ASM.REAR.TORQUE.BZP.8 HUS-532403102
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
38
SCREW HUS-532163409
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
40
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
41
PINIION.14.TOOTH.RGD HUS-532404835
...
42
O-RING..070X.487.NEOPRENE HUS-532197480
...
44
BELT.RGD.VS HUS-532406580
...
47
WASHER FLUT HUS-532067725
...
49
SCREW HUS-532163409
...
50
BRACKET.BELT.GUIDE.VS.RGD.BZP HUS-532404832
...
60
CASE UPPER HUS-532412736
...
61
SHAFT OUTPUT LONG HUS-532412757
...
62
SEAL.OUTPUT.SHAFT HUS-532183508
...
63
BUSHING HUS-532183511
...
64
WASHER HUS-532183509
...
65
SEAL INPUT SHAFT HUS-532183514
...
66
BEARING HUS-532183506
...
67
GEAR 28 TEETH HUS-532412742
...
68
DOG.FIXED.LH.32003 HUS-532412739
...
69
PIN 7 33732 HUS-532412741
...
70
DOG.MOVEABLE.LH.32005 HUS-532412740
...
71
SHAFT OUTPUT SHORT (12294) HUS-532412756
...
72
SCREW HUS-532183513
...
73
CASE, LOWER HUS-532412747
...
75
PIN 3.50.337 - 33733 HUS-532412746
...
76
DOG.FIXED.RH.32004 HUS-532412744
...
77
DOG.MOVEABLE.RH.32006 HUS-532412743
...
78
SPRING LEAF HUS-532410731
...
79
SHAFT WORM HUS-532412737
