Husqvarna 7021 RS - 96143001700 (2006-01) Walk Behind Mower

Model: 7021 RS - 96143001700 (2006-01)

Save Part Not Listed?
product name

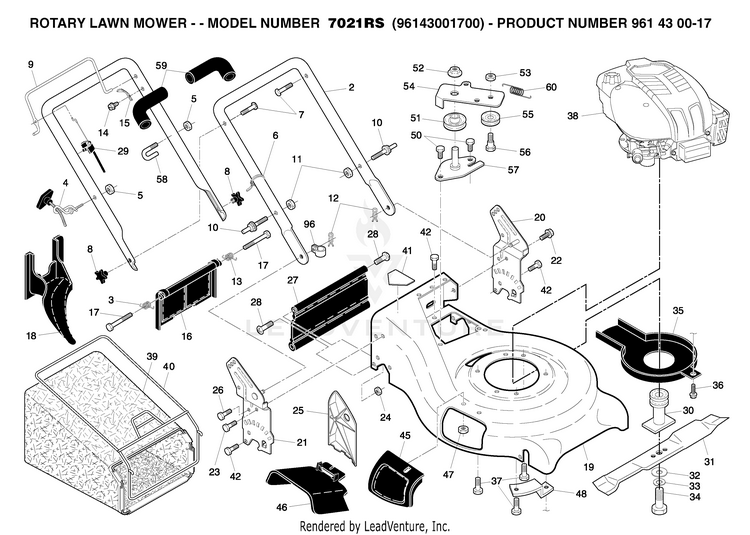

REPAIR PARTS

...
...
25
CLIPPING DEFLECTOR HUS-532161333
...
46
DEFLECTOR.21.MCUT.RWGD.GRAY HUS-532169699
...
42
SCREW HUS-532054583
...
14
SCREW HUS-532750634
...
36
SCREW.HEX.WSH HUS-532192325
...
20
LH HANDLE BRACKET ASSEMBLY HUS-532403296
...
56
SHOULDER BOLT HUS-532160829
...
54
IDLER ARM HUS-532185898
...
31
BLADE.21.PUSH/RWGD/FWG HUS-532189028
...
13
SPRING.RH.REAR.DOOR.21.RWGD HUS-532186052
...
26
SCREW HUS-532163409
...
32
WASHER,HARDEN HUS-532851074
...
47
NUT HUS-532088349
...
48
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
50
SCREW HUS-532057808
...
37
BOLT 3/8-16X1-1/8 HUS-532150406
...
15
BRACKET.UPSTOP HUS-532850733
...
8
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
21
BRKT.HANDLE.ASM.RWGD.21.RT.BLA HUS-532403297
...
59
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
51
PULLEY.IDLER.V-BELT HUS-532193791
...
2
HANDLE.LOWER.21.GREY HUS-532197202
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
33
Washers HUS-596238701
...
22
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
24
Hardware HUS-596040501
...
6
WIRE TIE HUS-532007192
...
3
SPRING.LH.REAR.DOOR.21.RWGD HUS-532186053
...
16
DOOR.REAR.PLASTIC.21.RWGD.BLAC HUS-532190574
...
10
BOLT HUS-532188821
...
29
SNAP-ON.ZONE.CABLE.ASS HUS-532191221
...
12
HAIRPIN COTTER HUS-532051793
...
28
HINGE SCREW HUS-532088652
...
11
NUT.CENTERLOCK.5/16- HUS-873930500
...
17
BOLT HUS-532184193
...
18
PLUG.MULCHER.RGD.21. HUS-532198170
...
57
BRACKET.IDLER.ASM.EZ HUS-532193315
...
45
DOOR.ASM.MULCH.21.RWD HUS-532183058
...
55
IDLER PULLEY HUS-532166043
...
23
Screws HUS-596031601
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
30
ADAPTER.BLADE/PULLEY.25M HUS-532421176
...
- -
WARNING DECAL HUS-530402152
...
35
DEBRIS SHEILD HUS-532188786
...
40
FRAME.CATCHER.21.RGD.AG HUS-532194644
...
34
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
96
CLIP.CABLE.BLK HUS-532197991
...
52
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
60
SPRING HUS-532406558
...
7
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
58
CLIP HUS-532182003
...
53
NUT.CENTERLOCK.5/16- HUS-873930500
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
9
BAIL.DSTRT.FL.AW.CREAS.ORANGE HUS-532197019

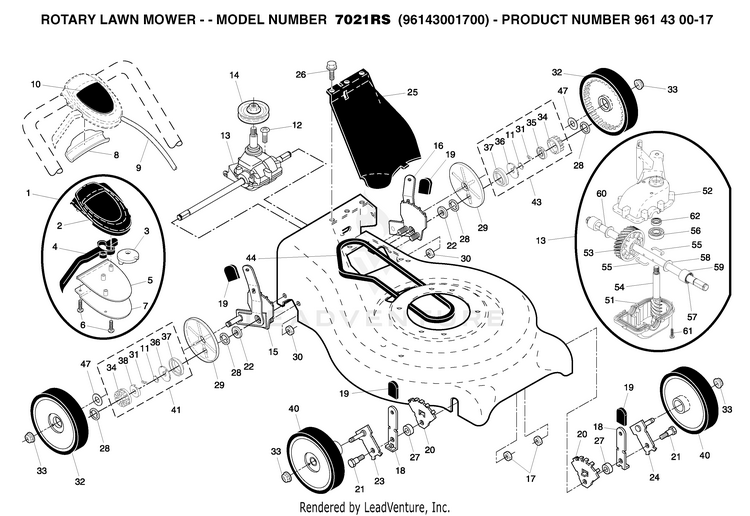

REPAIR PARTS 2

...
...
24
ARM.ASM.AXLE.RR/LF.5/9POS.BZP HUS-532186577
...
57
SEAL.OUTPUT.SHAFT HUS-532183508
...
26
SCREW HUS-532750634
...
59
BUSHING HUS-532183511
...
61
SCREW HUS-532183513
...
5
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
38
RETAINER, DRIVE, RH HUS-532175102
...
41
KIT.PINION.ASM HUS-532414860
...
43
KIT.PINION.ASM HUS-532414860
...
36
DISC.DRIVE.21.EZ-WALK HUS-532175104
...
56
BEARING HUS-532183506
...
25
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
37
SEAL.PINION HUS-532184172
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
17
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
47
WASHER FLUT HUS-532067725
...
23
ARM.ASM.AXLE.LR/RF.5/9POS.BZP HUS-532186578
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
27
SPACER.34X1.38X.22 HUS-532183901
...
53
GEAR.24.TOOTH.WALK.MOWER HUS-532187532
...
52
CASE, UPPER HUS-532187531
...
31
PAWL.DRIVE.21.EZ-WALK HUS-532175098
...
9
CABLE.ASM.EZ.WALK HUS-532196002
...
40
WHEEL.8X1.75.GREY.RAD3.5SPOKE HUS-532400542
...
2
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
19
KNOB.DELUXE.GRAY HUS-532196401
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
34
GEAR, PINION HUS-532175103
...
11
SPRING, TORSION HUS-532188291
...
55
WIRE, FORMED (15966) HUS-532183505
...
18
SPRING.SELECTOR.5/9POS HUS-532168360
...
62
SEAL INPUT SHAFT HUS-532183514
...
30
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
14
PULLEY.1.PIECE HUS-532193443
...
22
BEARING.SUPPORT.ASM HUS-587070202
...
35
RETAINER.DRIVE.21.EZ-WALK.LT HUS-532175105
...
28
E-RING 7/16 RE HUS-812000058
...
15
KIT.ADJUSTER.ASM.EZ(193677).RT HUS-532197235
...
51
CASE, LOWER HUS-532187530
...
54
SHAFT INPUT HUS-532187533
...
12
SCREW HUS-532750634
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
32
WHEEL.8X1.75.5SPK.RAD.3.GREY HUS-581009202
...
21
SHOULDER BOLT HUS-532160828
...
8
CAP.DRIVE.CONTROL.BLACK.HI-VAC HUS-532184987
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
13
TRANSMISSION.21.FWGD HUS-532193354
...
44
BELT.DRIVE.EZ.WALK.HI-VAC HUS-532183688
...
16
KIT.ADJUSER.ASM.EZ HUS-532197234
...
20
BRACKET.ADJ.5POS.ADS HUS-532407494
...
58
WASHER HUS-532183509
