Husqvarna 7021 RH - 96143005600 (2009-12) Walk Behind Mower

Model: 7021 RH - 96143005600 (2009-12)

Save Part Not Listed?
product name

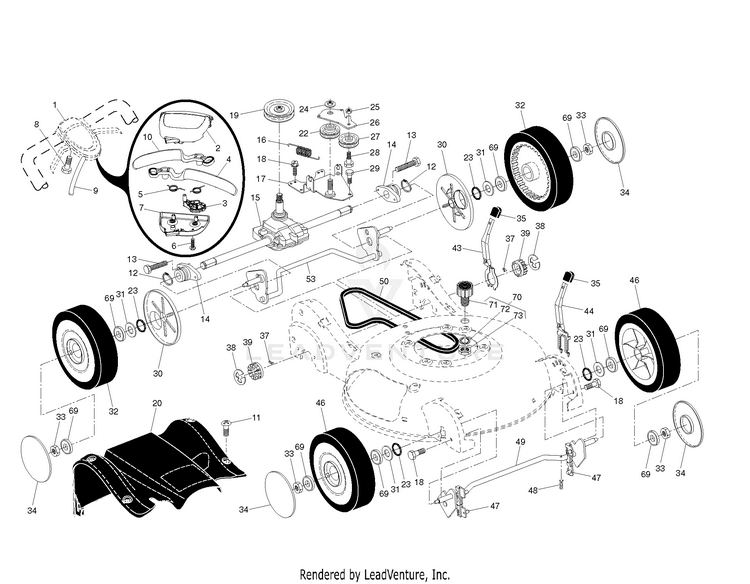

DRIVE

...
...
38
E-RING 7/16 RE HUS-812000058
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
11
SCREW HUS-532194188
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
50
BELT, DRIVE HUS-532408031
...
8
SCREW RH HUS-532178848
...
35
KNOB.SELECTOR.SPRING.BLACK(3 2 HUS-532425242
...
20
COVER.DR.ASM.408006X418.CE INCLUDES SCREW & PALNUT HUS-532432677
...
32
WHEEL.9X2.25.LP.TIGER.BLACK HUS-532192622
...
18
SCREW HUS-532163409
...
28
SHOULDER BOLT HUS-532160829
...
15
TRANSMISSION.21.HV.RWGD.AW/EZ HUS-532419211
...
13
HINGE SCREW HUS-532088652
...
31
WASHER.FLAT.1/2 HUS-532088348
...
43
LEVER, SELECTOR, HEIGHT, REAR REAR HUS-532188508
...
1
KIT.HV.CURVED.DTRIG.BLK/BLK HUS-581553501
...
16
SPRING HUS-532406558
...
29
SCREW 14-20 X 5/8 HUS-817060410
...
9
KIT.HV.CURVED.DTRIG.BLK/BLK HUS-581553501
...
49
SHAFT.ASM.FRONT.TORQUE FRONT HUS-532192431
...
23
O-RING..070X.487.NEOPRENE HUS-532197480
...
14
BEARING / AXLE SUPPORT HUS-532408027
...
26
ARM.IDLER.BZP HUS-532416736
...
7
COVER.DRIVE.LOWER.VSC.BLACK HUS-532426134
...
12
RING.RETAINING. HUS-583607301
...
17
BRACKET, GEAR CASE / DRIVE HUS-532408005
...
27
IDLER PULLEY HUS-532166043
...
72
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
69
BEARING.8".WHEEL HUS-532751068
...
71
KIT.WASH-OUT.PORT HUS-532421114
...
70
KIT.WASH-OUT.PORT HUS-532421114
...
22
PULLEY.IDLER.V-BELT HUS-532193791
...
53
SHAFT.ASM.REAR.TORQUE.HV.BZP REAR HUS-532416740
...
46
WHEEL.9X2.25.LP.TIGER.BLK HUS-532192232
...
4
HIVAC.DRIVE.LEVER.LH.BLACK LH HUS-532433791
...
5
SPRING, DRIVE CONTROL HUS-532420381
...
37
PAWL, DRIVE HUS-532404845
...
34
HUBCAP.WHEEL.5.SPOKE.SILVER HUS-532183442
...
39
PINION.14.TEETH.FGD HUS-532403849
...
47
BUSHING.FRONT.TORQUE.SHAFT HUS-532183438
...
19
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
30
DUST COVER, WHEEL HUS-532183457
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
10
LEVER.CONTROL.RH.22+.CURV.BLAC HUS-532432977
...
48
SPRING RETAINER HUS-532169675
...
25
NUT.CENTERLOCK.5/16- HUS-873930500
...
44
SPRING.SELECTOR.FRONT FRONT HUS-532188509
...
3
CAM.VSC.DRIVE.CABLE HUS-532420378
...
73
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
2
CONTROL.COVER.UPPER.GRAY HUS-532424629

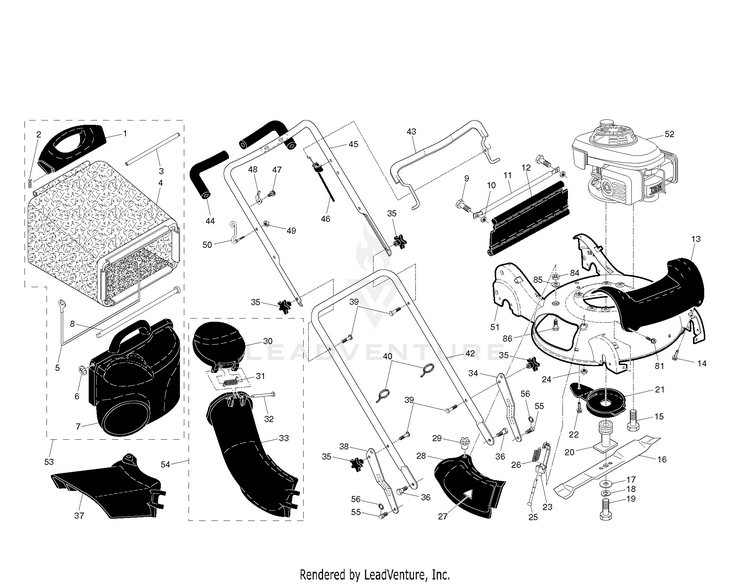

FRAME

...
...
46
CABLE.MZR.50.SNAP-IN HUS-532427497
...
14
SCREW, HEX WASHER HEAD HUS-532199422
...
9
BOLT T HUS-872140405
...
11
TUBE.SKIRT.HV.RWGD.BLACK HUS-532188359
...
34
BRKT.ADJ.LOWER.HDL.LH HUS-532187063
...
38
BRACKET.ADJ.LOWER.HDL.RH.BLACK HUS-532187064
...
51
HOUSING.21.HV.RWD.WO.AW.ORANGE HUS-532430883
...
4
GBAG.5323247.SILVER.HUSQ HUS-532194736
...
24
NUT.HEX.FLANGE.1/4 HUS-532191730
...
1
HANDLE.GRASSBAG.REAR.H-GRAY HUS-532190582
...
53
GBAG.ASM.HB.GRY.GENERIC.SERVIC HUS-532431754
...
81
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
26
SPRING.MULCH.DOOR HUS-532183446
...
33
DISCHARGE CHUTE, PLASTIC HUS-532188504
...
21
SHIELD.DEBRIS.21.HV.RWGD.BLACK HUS-532188510
...
25
ROD.HINGE.1/4"3.82" HUS-532183445
...
5
FRAME, GRASSBAG HUS-532188506
...
85
Washers HUS-596238701
...
16
21" MULCH BLADE PREMIUM HUS-532159267
...
32
ROD.HINGE.1/4"3.82" HUS-532183445
...
28
DOOR.MULCH HUS-532188507
...
42
HANDLE.LOWER.GREY HUS-532187096
...
48
BRACKET.UPSTOP.RT HUS-532430034
...
12
SKIRT.REAR.21".HI-VAC.BLACK HUS-532190815
...
50
GUIDE.ROPE.WALK.MOWER HUS-532188501
...
6
E-RING HUS-812000014
...
17
WASHER,HARDEN HUS-532851074
...
36
SCREW.5/16X.680.TRIM.H HUS-532194187
...
84
Hardware HUS-596041001
...
15
BOLT 3/8-16X1-1/8 HUS-532150406
...
30
CHUTE.DOOR.21.HV.H-GRAY HUS-532190580
...
54
CHUTE.LOWER.ASM.WALK.MOWER HUS-532189014
...
31
SPRING HUS-532183478
...
8
ROD, PIVOT HUS-532183479
...
27
DECAL.CUTFINGER.CE.02 HUS-581579101
...
37
GUARD.CLIP.ON.21.HV.GRAY HUS-532185996
...
56
E-RING 7/16 RE HUS-812000058
...
23
BRACKET.ASM.HINGE HUS-532183609
...
2
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
29
KNOB.MULCH.DOOR HUS-532183447
...
22
SCREW 1/4X20 HUS-817600406
...
7
DOOR.GRASSBAG.H-GRAY HUS-532188498
...
45
HANDLE.ASM.UPPER.W/GRIP HUS-532186296
...
55
STUD.SHOULDER.T45.BZP HUS-532194192
...
10
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
19
BOLT.HD.HEAD.3/8-24X2.50 (2 2) HUS-532191760
...
3
ROD.REAR.HANDLE.YELLOW HUS-532183483
...
47
SCREW HUS-532750634
...
35
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
39
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
52
HONDA GCV160-LAS3A HUS-000000000
...
86
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407
...
43
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
49
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
13
COVER.FRONT.21.HV.H-GRAY HUS-532414958
...
44
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
18
Washers HUS-596238701
...
40
WIRE TIE HUS-532007192
...
20
ADAPTER.BLADE HUS-532186766
