Husqvarna 7021 R - 96143006301 (2011-01) Walk Behind Mower

Model: 7021 R - 96143006301 (2011-01)

Save Part Not Listed?
product name

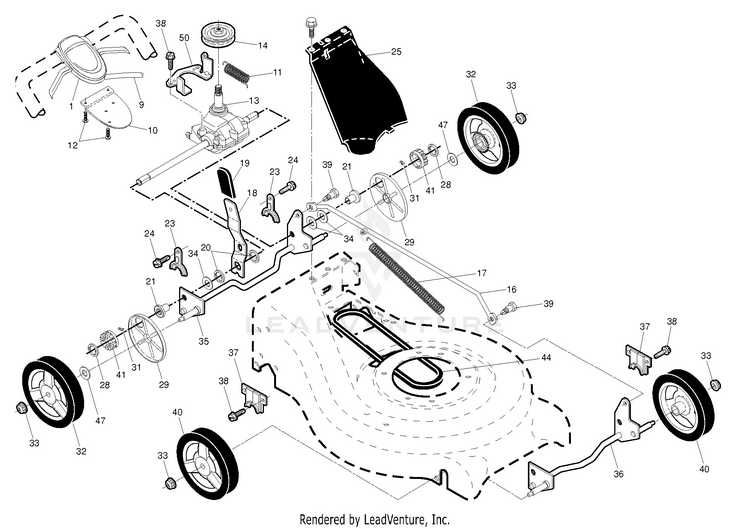

DRIVE

...
...
24
SCREW 14-20 X 5/8 HUS-817060410
...
21
BEARING.ASM.RGD.AUTO.SP HUS-532404838
...
19
KNOB.EXT.ERGO.BLACK HUS-532190069
...
34
WASHER HUS-532851226
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
47
WASHER FLUT HUS-532067725
...
41
PINIION.14.TOOTH.RGD HUS-532404835
...
31
PAWL, DRIVE HUS-532404845
...
9
CABLE.CONTROL.21RGD HUS-532431655
...
35
SHAFT.ASM.REAR.TORQUE.BZP.8 HUS-532403102
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
44
BELT.RGD.VS HUS-532406580
...
1
RP.CONTROL.AW2.21RGD.BS.GY/BLK HUS-581075005
...
12
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
28
E-RING 7/16 RE HUS-812000058
...
17
SPRING EXTENSION HUS-532409616
...
18
SPRING.SELECTOR.SPT.21.BZP HUS-532418835
...
38
SCREW HUS-532163409
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
...
25
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
16
ROD.CONNECTING.SPT.BLACK HUS-532407147
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
32
WHEEL.8X1.75.3SPK.RAD3.GREY HUS-581685101
...
20
E-RING HUS-812000022
...
13
TRANSMISSION.21.RWGD HUS-532419213
...
40
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
10
BRACKET.DRIVE.CONTR.GEN2.BLACK HUS-532432790
...
50
BRACKET.BELT.GUIDE.VS.RGD.BZP HUS-532404832
...
11
SPRING HUS-532406558
...
14
PULLEY.1.PIECE HUS-532193443

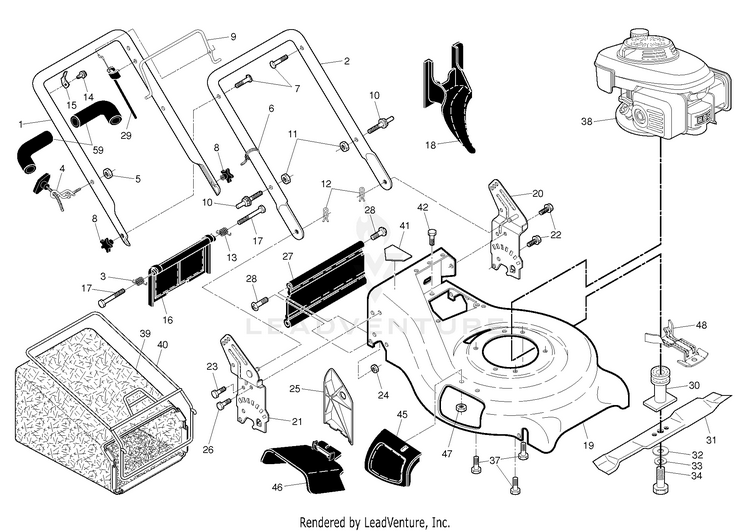

FRAME & ENGINE

...
...
46
DEFLECTOR.21.MCUT.RWGD.GRAY HUS-532169699
...
33
Washers HUS-596238701
...
24
Hardware HUS-596040501
...
17
BOLT HUS-532184193
...
45
DOOR.ASM.MULCH.21.RWD HUS-532183058
...
11
NUT.LOCK.5/16-18 HUS-532751153
...
23
Screws HUS-596031601
...
20
BRACKET.HNDL.ASM.21.RWGD.LT.OR LH HUS-532418239
...
27
SKIRT.REAR.21.RWGD.BLACK(2 2M) HUS-532408442
...
10
BOLT HUS-532188821
...
40
FRAME.GBAG.21.RWGD.SC HUS-532411951
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
7
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
25
CLIPPING DEFLECTOR HUS-532161333
...
3
SPRING.RH.REAR.DOOR.21.RWGD RH HUS-532405416
...
13
SPRING.LH.REAR.DOOR.21.RWGD LH HUS-532405415
...
14
SCREW HUS-532750634
...
2
HANDLE.LOWER.21.GREY HUS-532197202
...
39
GBAG.93230010.BLK.GEN HUS-581002901
...
59
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
21
BRACKET.HNDL.ASM.21.RWGD.RT.OR RH HUS-532418251
...
29
CABLE.MZR.47.75.SNAP-IN.PU.L HUS-532425923
...
26
SCREW HUS-532163409
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
1
HANDLE.ASM.UPPER.W/GRIP HUS-532186296
...
9
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
12
HAIRPIN COTTER HUS-532051793
...
8
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
37
BOLT 3/8-16X1-1/8 HUS-532150406
...
18
PLUG.MULCHER.RGD.21. HUS-532198170
...
16
DOOR.REAR.21.RWGD HUS-532401815
...
38
HONDA GCV160-LAS3A FOR SERVICE & PARTS 1-800-426-7701 HUS-000000000
...
47
NUT HUS-532088349
...
15
BRACKET.UPSTOP.RT HUS-532430034
...
19
HOUSING.21.RWD.ORANGE.WALK. HUS-532407535
...
31
21" WALK MOWER BLADE HUS-594893001
...
30
ADAPTER.BLADE/PULLEY.25M HUS-532421176
...
22
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
28
HINGE SCREW HUS-532088652
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
42
SCREW 14-20 X 5/8 HUS-817060410
...
6
WIRE TIE HUS-532007192
...
34
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
32
WASHER,HARDEN HUS-532851074
...
48
BRACKET.ENG/BELTKEEPER.BZP HUS-532429001
