Husqvarna 7021 R (96143004600) (2009-01) Walk Mower

Model: 7021 R (96143004600) (2009-01)

Back To Assemblies

Save Part Not Listed?

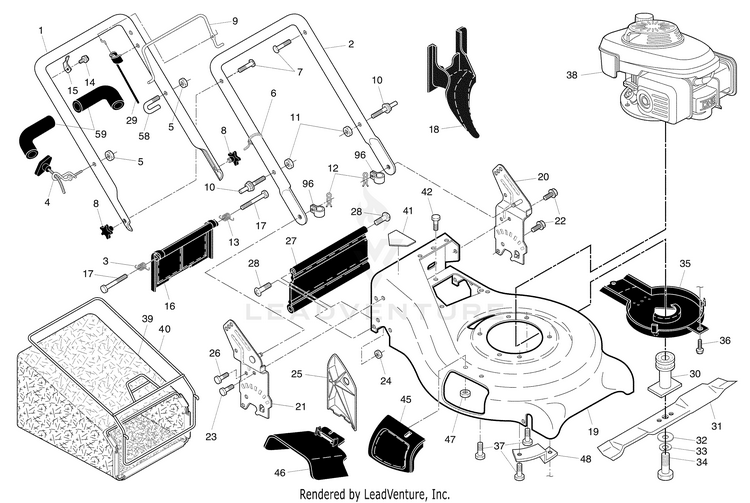

product name

Repair Parts

...
...
1
HANDLE.ASM.UPPER.W/GRIP (Includes Foam Grip) HUS-532186296
...
2
HANDLE.LOWER.21.GREY HUS-532197202
...
3
SPRING.RH.REAR.DOOR.21.RWGD HUS-532405416
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
WIRE TIE HUS-532007192
...
7
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
8
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
9
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
10
BOLT HUS-532188821
...
11
NUT.LOCK.5/16-18 HUS-532751153
...
12
HAIRPIN COTTER HUS-532051793
...
13
SPRING.LH.REAR.DOOR.21.RWGD HUS-532405415
...
14
SCREW HUS-532750634
...
15
BRACKET.UPSTOP.RT HUS-532430034
...
16
DOOR.REAR.21.RWGD HUS-532401815
...
17
BOLT HUS-532184193
...
18
PLUG.MULCHER.RGD.21. HUS-532198170
...
19
HOUSING.21.RWD.ORANGE.WALK. HUS-532407535
...
20
BRKT.ASM.HNDL.21.RWGD.LT.BLACK HUS-532193917
...
21
BRKT.ASM.HNDL HUS-532194031
...
22
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
23
Screws HUS-596031601
...
24
Hardware HUS-596040501
...
25
CLIPPING DEFLECTOR HUS-532161333
...
26
SCREW HUS-532163409
...
27
SKIRT.REAR.21.RWGD.BLACK(2 2M) HUS-532408442
...
28
HINGE SCREW HUS-532088652
...
29
CABLE.MZR.47.75.SNAP-IN.PU.L HUS-532425923
...
30
ADAPTER.BLADE/PULLEY.25M HUS-532421176
...
31
21" WALK MOWER BLADE HUS-594893001
...
32
WASHER,HARDEN HUS-532851074
...
33
Washers HUS-596238701
...
34
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
35
KIT.SHIELD.DEBRIS.22FD/21RD HUS-585472601
...
36
SCREW.HEX.WSH HUS-532192325
...
37
BOLT 3/8-16X1-1/8 HUS-532150406
...
39
GBAG.93230010.BLK.GEN HUS-581002901
...
40
FRAME.GBAG.21.RWGD.SC HUS-532411951
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
42
SCREW HUS-532054583
...
45
DOOR.ASM.MULCH.21.RWD HUS-532183058
...
46
DEFLECTOR.21.MCUT.RWGD.GRAY HUS-532169699
...
47
NUT HUS-532088349
...
48
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
58
CLIP HUS-532182003
...
59
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
96
CLIP.CABLE.BLK HUS-532197991
...
xx
DECAL.CUTFINGER.CE.02 (not shown) HUS-581579101
