product name

Husqvarna 7021 P - 96133001902 (2013-11) Walk Behind Mower

Model: 7021 P - 96133001902 (2013-11)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
187
Washers HUS-596135501
...
210
ROCKER.ASM.PEDAL.CONTR HUS-532400980
...
177
PIN COTTER;LOCKING;BOWTIE;1IN HUS-587225301
...
17
SPRING.BRAKE.K46.GREEN HUS-532413678
...
35
ROD ROD.PARKINGBRAKE.GT.HUSQ/P HUS-590605902
...
159
Pins HUS-596029501
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
183
SPACER AXLE HUS-532137057
...
56
Belts HUS-592855201
...
336
GSPW Nuts HUS-596135701
...
64
SHAFT.ASM.PEDAL.BRK.CNTR HUS-532197865
...
69
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
29
ROD.BRAKE.K46 HUS-532403806
...
33
E-RING LT HUS-812000001
...
42
PAD, FOOT PEDAL HUS-510089501
...
37
WASHER.HARDENED HUS-532188967
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
213
KNOB.CONTROL.CRUSIE.HU HUS-532403119
...
170
KEEPER.V-IDLER.CENTER. HUS-532194322
...
207
Latch HUS-587031402
...
92
Screws HUS-595305701
...
223
BOLTS HUS-598662601
...
1
TRANSAXLE, TUFFTORQ K46 BT (426120) HUS-000000000
...
161
SPRING, RETURN LT HUS-532105709
...
73
Bolts HUS-596136501
...
2
SQUARE KEY HUS-532123583
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
227
Bolts HUS-596135901
...
116
GSPW Nuts HUS-596135701
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
185
BOLT HUS-872110622
...
214
PEDAL.FORWARD.PAD.TEX HUS-532421263
...
166
NUT.PUSH.625 HUS-532429164
...
171
Bolts HUS-596136301
...
49
Bolts HUS-596136201
...
206
BRACKET.MOUNT.CRUISE.LATCH HUS-532448596
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
326
BRACKET TORQUE STRAP HUS-585670803
...
225
SERVICE KIT KEEPER BELT KEEPER HUS-531149001
...
99
ARM.PIVOTING.TCRD.GEN2.5.BAGGE HUS-582404501
...
186
SPACER.RETAINER HUS-532194321
...
143
Screws HUS-596030701
...
208
Gears HUS-596564101
...
325
BRACKET TORQUE STRAP HUS-585668505
...
205
WASHER HUS-532121748
...
163
Rods HUS-593861001
...
211
BEARING.NYLON HUS-532120183
...
26
SPRING.RETURN.CRUISE HUS-532199679
...
209
ROD ROD.CRUISECONTROL.GT.HUSQ/ HUS-590527802
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
222
WASHER 21/32 X 1-1/4 X 10 GA. HUS-879212010
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
153
RETAINER M HUS-532004497
...
215
PEDAL.COVER.REVERSE.CRD.X428BK HUS-586606502
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318

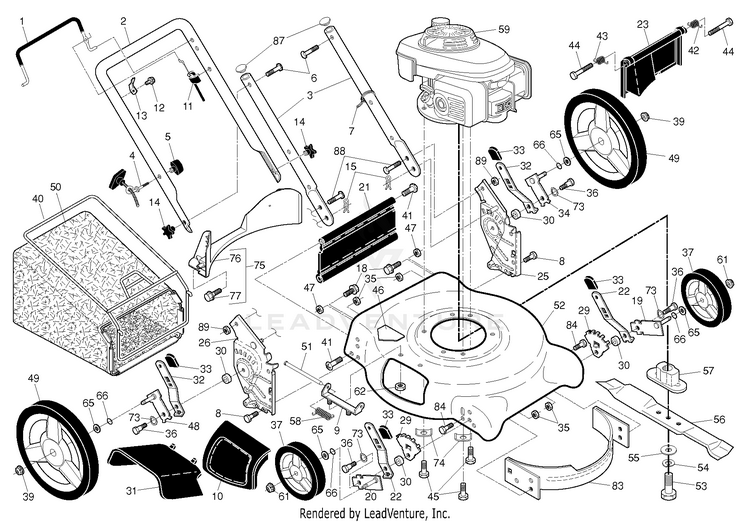

MOWER DECK / CUTTING DECK

...
...
57
ADAPTER.BLADE.W/KEY.25MM.CE HUS-532418373
...
83
BAFFLE.FRONT.21.DOME.US HUS-532428501
...
42
SPRING.LH.22.REAR.DOOR.EZ.EMPT LH HUS-532405421
...
2
HANDLE.UP.CURV.PUSH/SSDRV.GREY HUS-580638703
...
59
HONDA GCV160-LAOS3B FOR SERVICE & PARTS 1-800-426-7701 HUS-000000000
...
84
BOLT.5/16HEX.WHS.HD HUS-817000510
...
21
SKIRT.REAR.21.PUSH HUS-532416860
...
6
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
9
BRACKET.ASM.HOUSING.EZ.MUL HUS-532154132
...
89
Hardware HUS-596040501
...
8
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
12
SCREW HUS-532178848
...
75
KIT.BAFFLE.REAR.PLASTIC.21.RD INCL 3 SCREWS HUS-532413693
...
77
SCREW.HX.13X.750 HUS-817411312
...
58
TORSION SPRING HUS-532152124
...
11
CABLE.ASM.ZONE.CONTROL HUS-532415350
...
31
DEFLECTOR.CLIPPING.21.PUSH.BLK HUS-589482402
...
29
BRACKET.ADJ.5POS.ADS FRONT HUS-532407494
...
41
SCREW.1/4-20X21/4.HEX. HUS-532194186
...
20
ARM.ASM.AXLE.5/9.POS.BZP RH HUS-532401175
...
56
BLADE.21.4-N-1.2PIN.5STAR.BL HUS-580258102
...
66
O-RING..070X.487.NEOPRENE HUS-532197480
...
54
Washers HUS-596238701
...
15
HAIRPIN COTTER HUS-532051793
...
19
ARM.ASM.AXLE.5/9.POS. LH HUS-532401174
...
62
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
36
Hardware HUS-596203801
...
30
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
23
DOOR.REAR.21.DOMED.498 HUS-581425601
...
55
WASHER,HARDEN HUS-532851074
...
37
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
53
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
xx
DECAL.CUTFINGER.CE.02 NOT SHOWN HUS-581579101
...
13
BRACKET.UPSTOP.RT HUS-532430034
...
25
BRACKET.ASM.HAND.HW.21.LT.GREY LH HUS-580915603
...
10
DOOR.MULCH.21".REAR.PUSH.GRAY HUS-581825801
...
1
BAIL.OVER.MOLD.ERGO.MZR.ORANGE HUS-580849102
...
48
ARM.ASM.AXLE..RR.5/9.POS.BZP RH HUS-532401177
...
47
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
74
WASHER.ENGINE.BZP HUS-532125078
...
87
PLUG.PLASTIC.7/8".14-20.GAUGE HUS-532437516
...
5
T-KNOB.NEW ROPE GUIDE HUS-581912601
...
35
NUT.LOCK.5/16-18 HUS-532751153
...
32
SPRING.SEL.22.ECON.HI-WHL.RATO REAR HUS-532441559
...
51
ROD.HINGE.COMBI-C HUS-532147286
...
50
GBAG.24710010.BLK.GEN HUS-581002101
...
14
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
46
DECAL.CUTFINGER.CE.02 HUS-581579101
...
88
Bolts HUS-596136401
...
73
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
3
HANDLE.LOWER.DOME.BT.GREY HUS-580638603
...
43
SPRING.RH.22.REAR.DOOR.EZ. RH HUS-532405423
...
65
WASHER.FLAT.1/2 HUS-532088348
...
76
BAFFLE.REAR.PLASTIC.21.RD.ECON HUS-532410589
...
39
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
4
GUIDE.ROPE.BLK.ZINC.CHROM HUS-581902101
...
7
WIRE TIE HUS-532007192
...
22
SPRING.SELECTOR.5POS.BZP FRONT HUS-532401621
...
49
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
33
SELECTOR KNOB HUS-532701037
...
34
ARM.ASM.AXLE..LR.5/9.POS.BZP LH HUS-532401176
...
52
HOUSING.21MC.DOME.ORANGE.CE HUS-581708322
...
40
FRAME.BAG.21.REAR.DOMED.PUSH HUS-532411949
...
45
BOLT 3/8-16X1-1/8 HUS-532150406
...
61
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
44
BOLT HUS-532184193
...
18
SCREW 1/4X20 HUS-817600406
...
26
BRACKET.ASM.HAND.HW.21.RT.498 RH HUS-580915703

WHEELS & TIRES

...
...
6
FITTING LT. (Front Wheel Only) HUS-532000278
...
5
TIRE.15X6-6.TURF.SAVER.FRONT Front 15" x 6.0"-6" HUS-532122073
...
11
RIM.ASM.8X7.REAR.SILVER Rear 8" HUS-532106108
...
3
RIM.ASM.6X4.5.FRONT.SILVER Front 6" HUS-532106732
...
1
VALVE CAP HUS-532059192
...
2
VALVE STEM LT HUS-532065139
...
8
CAP.HUB.FRONT.LT.BLACK HUS-532104757
...
9
TIRE.20X8-8.TURF.SAVER Rear 20" x 8.0"-8" HUS-532138468
...
xx
6, 24OZ PNUEMASEAL BOTTLES HUS-576707201
...
7
BEARING.FLANGE (Front Wheel Only) HUS-532009040
...
10
TUBE - UNIVERSAL FOR 8" RIM (Service Item Only) HUS-532007152
...
4
TUBE.5.3/4.5/6 (Service Item Only) HUS-532059904
