Husqvarna 7021 P - 96133000701 (2009-11) Walk Behind Mower

Model: 7021 P - 96133000701 (2009-11)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
12
SCREW HUS-532750634
...
18
SCREW 1/4X20 HUS-817600406
...
51
ROD.HINGE.COMBI-C HUS-532147286
...
20
ARM.ASM.AXLE.5/9.POS.BZP HUS-532401175
...
76
BAFFLE.REAR.PLASTIC.21.RD.ECON HUS-532410589
...
49
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
53
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
66
O-RING..070X.487.NEOPRENE HUS-532197480
...
47
NUT.LOCK.5/16-18 HUS-532751153
...
3
HANDLE.LOWER.BLACK HUS-532174291
...
41
HINGE SCREW HUS-532088652
...
15
HAIRPIN COTTER HUS-532051793
...
39
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
59
HONDA GCV160-LAS3A HUS-000000000
...
40
FRAME.BAG.21.REAR.DOMED.PUSH HUS-532411949
...
21
SKIRT.REAR.21.PUSH HUS-532416860
...
62
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
57
ADAPTER.BLADE.W/KEY.25MM.CE HUS-532418373
...
58
TORSION SPRING HUS-532152124
...
8
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
30
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
7
WIRE TIE HUS-532007192
...
45
BOLT 3/8-16X1-1/8 HUS-532150406
...
32
SPRING.SEL.EXT.21.DOMED.12/14 HUS-532401624
...
26
RP BRACKET.ASM.HAND.HW.21.RT.O HUS-532446562
...
73
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
46
DECAL.CUTFINGER.CE.02 HUS-581579101
...
6
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
52
HOUSING.21MC.DOME.ORANGE.E/F HUS-532442454
...
9
BRACKET.ASM.HOUSING.EZ.MUL HUS-532154132
...
33
KNOB HUS-532087877
...
19
ARM.ASM.AXLE.5/9.POS. HUS-532401174
...
65
WASHER.FLAT.1/2 HUS-532088348
...
61
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
50
GBAG.24710010.BLK.GEN HUS-581002101
...
54
Washers HUS-596238701
...
37
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
74
WASHER.ENGINE.BZP HUS-532125078
...
75
KIT.BAFFLE.REAR.PLASTIC.21.RD INCLUDES 3 SCREWS HUS-532413693
...
44
BOLT HUS-532184193
...
1
BAIL.MZR.STD.ORANGE HUS-532402949
...
31
DEFLECTOR.CLIPPING.21.PUSH.BLK HUS-589482402
...
68
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
36
Hardware HUS-596203801
...
14
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
22
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
11
CABLE.MZR.22.2012 HUS-532440934
...
2
UPPERHANDLE(INCLUDES FOAMGRIP) INCLUDES FOAM GRIP HUS-532197808
...
34
ARM.ASM.AXLE..LR.5/9.POS.BZP HUS-532401176
...
42
SPRING.LH.22.REAR.DOOR.EZ.EMPT HUS-532405421
...
43
SPRING.RH.22.REAR.DOOR.EZ. HUS-532405423
...
10
DOOR.MULCH.21".REAR.PUSH.GRAY HUS-581825801
...
35
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
77
SCREW.HX.13X.750 HUS-817411312
...
56
21" WALK MOWER BLADE HUS-594893001
...
25
BRACKET.ASM.HAND.HW.21.LT.ORNG HUS-580915605
...
67
CLIP.CABLE.BLK HUS-532197991
...
55
WASHER,HARDEN HUS-532851074
...
48
ARM.ASM.AXLE..RR.5/9.POS.BZP HUS-532401177
...
23
DOOR.REAR.21.DOMED.498 HUS-581425601
...
29
BRACKET.ADJ.5POS.ADS HUS-532407494
...
13
BRACKET.UPSTOP.RT HUS-532430034

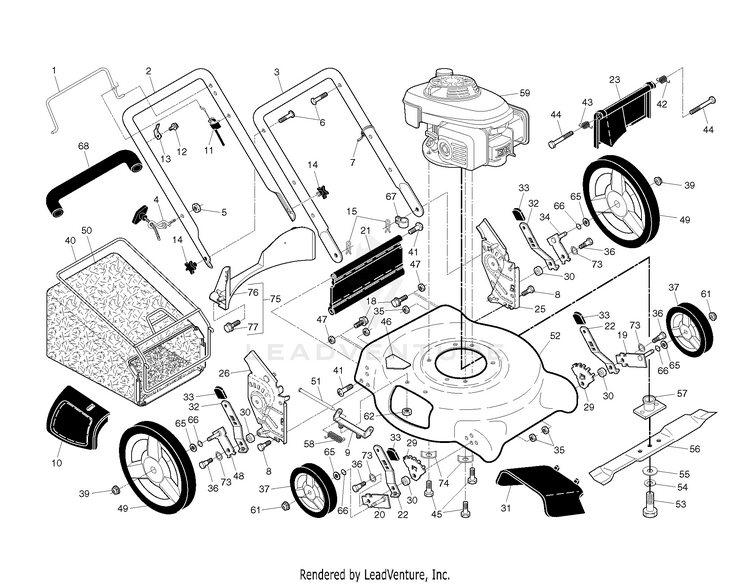

Schematic Image Zoomed
