Husqvarna 7021 CP - 96133000200 (2005-01) Walk Behind Mower

Model: 7021 CP - 96133000200 (2005-01)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
54
Washers HUS-596238701
...
66
O-RING..070X.487.NEOPRENE HUS-532197480
...
3
HANDLE.LOWER.21.GREY HUS-532197202
...
8
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
19
ARM.ASM.AXLE.RR/LF.5/9POS.BZP HUS-532186577
...
56
BLADE.21.PUSH/RWGD/FWG HUS-532189028
...
16
NUT.HEX.FLANGE.1/4 HUS-532191730
...
61
3" HUBCAP SILVER HUS-532150635
...
35
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
65
WASHER.FLAT.1/2 HUS-532088348
...
41
HINGE SCREW HUS-532088652
...
28
TORSION SPRING HUS-532152124
...
13
BRACKET.UPSTOP.RT HUS-532430034
...
17
BRACKET.SUPPORT.21.DOMED.BLACK HUS-532165946
...
12
SCREW HUS-532750634
...
18
SCREW 1/4X20 HUS-817600406
...
50
GBAG.24710010.BLK.GEN HUS-581002101
...
52
HOUSING.21.MC.DOME.ORG.EF.WBFS HUS-532443257
...
20
ARM.ASM.AXLE.LR/RF.5/9POS.BZP HUS-532186578
...
25
HANDLE BRAKET ASSY LH HUS-532197204
...
11
ENGINE ZONE CONTROL CABLE HUS-532176556
...
39
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
49
WHEEL.14X2.PR.RADII.SILV.MAG.B HUS-532180552
...
57
ADAPTER.BLADE.W/KEY.25MM.CE HUS-532418373
...
22
SPRING.SELECTOR.5/9POS HUS-532168360
...
38
SHOULDER BOLT HUS-532164362
...
26
HANDLE BRACKET ASSY RH HUS-532197205
...
51
ROD.HINGE.COMBI-C HUS-532147286
...
40
FRAME.BAG.21.REAR.DOME HUS-532194642
...
31
DEFLECTOR.CLIPPING.21.PUSH.BLK HUS-589482402
...
21
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
9
BRACKET.ASM.HOUSING.EZ.MUL HUS-532154132
...
58
BOLT HUS-532188821
...
68
GRIP, FOAM HUS-532186362
...
42
SPRING (LH) HUS-532165766
...
7
WIRE TIE HUS-532007192
...
62
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
27
SCREW 1/4X20 HUS-817600406
...
45
BOLT 3/8-16X1-1/8 HUS-532150406
...
44
ROD.STIFFENER HUS-532185819
...
30
SPACER.34X1.38X.22 HUS-532183901
...
37
WHEEL.8X1.75.CF5SPK.RAD.BLACK HUS-532435276
...
60
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
- -
WARNING DECAL HUS-530402152
...
55
WASHER,HARDEN HUS-532851074
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
24
NUT.CENTERLOCK.5/16- HUS-873930500
...
1
BAIL.CONT.D.STRAIGHT.PUSH.ORAN HUS-532194176
...
64
Bushing, Nylon, Black HUS-532193696
...
14
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
47
Hardware HUS-596040501
...
36
SHOULDER BOLT HUS-532160828
...
46
DECAL.CUTFINGER.CE.02 HUS-581579101
...
67
CLIP.CABLE.BLK HUS-532197991
...
63
KIT.BUSHING.WHEEL.14" HUS-532193498
...
43
SPRING (RH) HUS-532165767
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
23
KIT.REAR.DOOR.21.DOMED. HUS-532186612
...
29
BRACKET.ADJ.5POS.ADS HUS-532407494
...
15
HAIRPIN COTTER HUS-532051793
...
53
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
6
BOLT, HANDLE 5/16-18X1.75 HUS-532191574

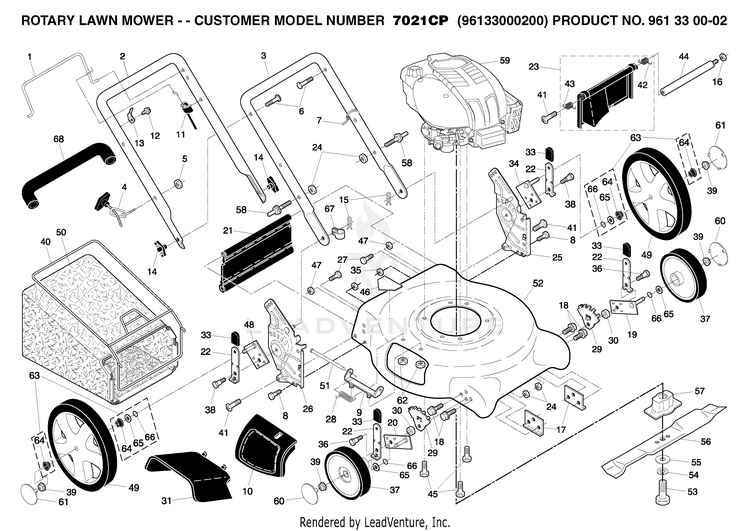

Schematic Image Zoomed
