Husqvarna 7021 CH1 - 96143000600 (2004-10) Walk Behind Mower

Model: 7021 CH1 - 96143000600 (2004-10)

Save Part Not Listed?
product name

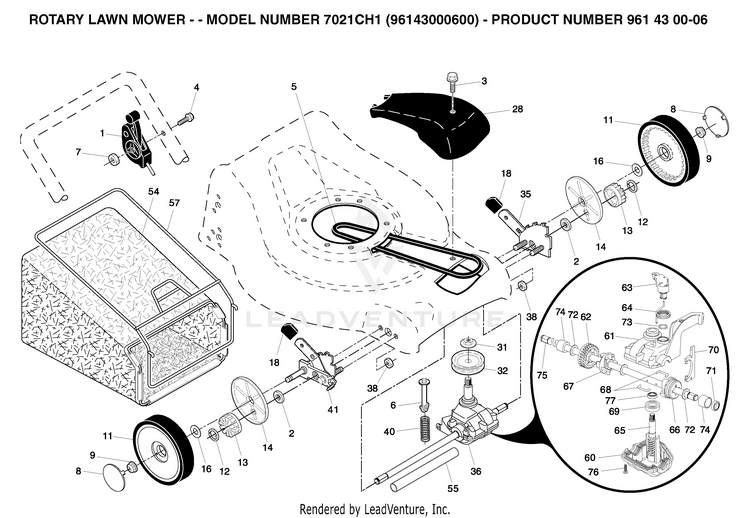

REPAIR PARTS

...
...
62
GEAR.27.TEETH.WALK.MOWER HUS-532183499
...
16
WASHER FLUT HUS-532067725
...
28
COVER.DRIVE.ASM.185579.CE.WALK HUS-532432664
...
72
WASHER HUS-532183509
...
7
NUT.HEX.FLANGE.1/4 HUS-532191730
...
36
TRANSMISSION.21.HT.GWGD HUS-532180184
...
66
DOG, MOVABLE (11032) HUS-532183503
...
6
SPRING RETAINER HUS-532150495
...
2
BEARING ASM. HUS-588636301
...
35
WHEEL ADJ ASM (L) HUS-532151521
...
69
BEARING HUS-532183506
...
70
FORK, SHIFT HUS-532183507
...
60
LOWER CASE HUS-532183497
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
3
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
71
SEAL.OUTPUT.SHAFT HUS-532183508
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
40
SPRING.EXTENSION HUS-532137090
...
31
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
73
SEAL, CASE O-RING HUS-532183510
...
75
SHAFT OUTPUT (12159) HUS-532183512
...
1
DRIVE CONTROL 59.8 FWGD HUS-532184588
...
54
GBAG.34710090.H-GREY MS498 HUS-580953406
...
41
KIT.ADJUSTER.ASM.(151514).RT HUS-532151520
...
13
PINION GEAR HUS-532137054
...
74
BUSHING HUS-532183511
...
9
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
68
WIRE, FORMED (15966) HUS-532183505
...
57
FRAME.GBAG.21.FWGD. HUS-532194643
...
55
DRIVESHAFT COVER HUS-532175739
...
76
SCREW HUS-532183513
...
61
UPPER CASE HUS-532183498
...
8
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
32
DRIVEN PULLEY HUS-532194126
...
64
SPRING, RETURN HUS-532183501
...
67
DOG, FIXED GT11031 HUS-532183504
...
4
SCREW.PAN.HEAD HUS-532158755
...
12
E-RING 7/16 RE HUS-812000058
...
63
LEVER, CLUTCH HUS-532183500
...
5
BELT.DRIVE.21FGD.1SPEED HUS-532175436
...
65
SHAFT INPUT (13041) HUS-532183502
...
77
SEAL INPUT SHAFT HUS-532183514
...
11
WHEEL.8X2.PR.LP.RADII.BLACK.BU HUS-532180775

REPAIR PARTS 2

...
...
16
SPRING LH HUS-532180071
...
64
DOOR.MULCH.21.REAR.FWGD HUS-532185576
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
66
WASHER.FLAT.1/2 HUS-532088348
...
14
BRACKET.ASM.HNDL.LT.21.FGD.HW HUS-532434513
...
4
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
62
ROD.HINGE.21 HUS-532175650
...
2
HANDLE.LOWER.21.FWGD.BLACK HUS-532175245
...
47
BLADE.21.PUSH/RWGD/FWG HUS-532189028
...
11
SUPPORT BRACKET LH HUS-532182538
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
35
3" HUBCAP SILVER HUS-532150635
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
9
KIT.DOOR.RR.ASM.21.FWGD HUS-532180479
...
8
WIRE TIE HUS-532007192
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
61
SPRING.TORSION HUS-532193000
...
10
RIVET BLIND HUS-532128415
...
30
ARM.ASM.AXLE.HW.RR. HUS-532175574
...
41
SCREW.HEX.WSH HUS-532192325
...
12
KIT.BRACKET.SUPPORT.RH.21.FWGD HUS-532421560
...
28
SHOULDER BOLT HUS-532160828
...
21
HINGE SCREW HUS-532088652
...
36
BOLT HUS-532184193
...
15
BRACKET.ASM.HNDL.RT.21.FGD.HW HUS-532434512
...
32
SPRING.SELECTOR.21.FWG HUS-532175053
...
7
HAIRPIN COTTER HUS-532051793
...
49
Washers HUS-596238701
...
34
ARM ASM.AXLE.H/W.LR.BZP HUS-532175575
...
5
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
60
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
38
WASHER.FLAT.34X1.38X22 HUS-819112206
...
26
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
63
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
46
ADAPTER.BLADE/PULLEY.25M HUS-532421176
...
17
SPRING.REAR.DOOR.EZ.21 HUS-532180072
...
59
DISCHARGE DEFLECTOR HUS-532175071
...
25
BOLT 3/8-16X1-1/8 HUS-532150406
...
43
DEBRIS.SHIELD.21:.FGD HUS-532188784
...
45
DECAL.CUTFINGER.CE.02 HUS-581579101
...
20
SKIRT.REAR.21 FWGD.BLACK HUS-532413159
...
33
Hardware HUS-596040501
...
- -
WARNING DECAL HUS-530402152
...
48
WASHER,HARDEN HUS-532851074
...
27
WHEEL.14X2.PR.RADII.SILV.MAG.B HUS-532180552
