Husqvarna 67522 ES (96143001200) (2006-03) Walk Mower

Model: 67522 ES (96143001200) (2006-03)

Save Part Not Listed?
product name

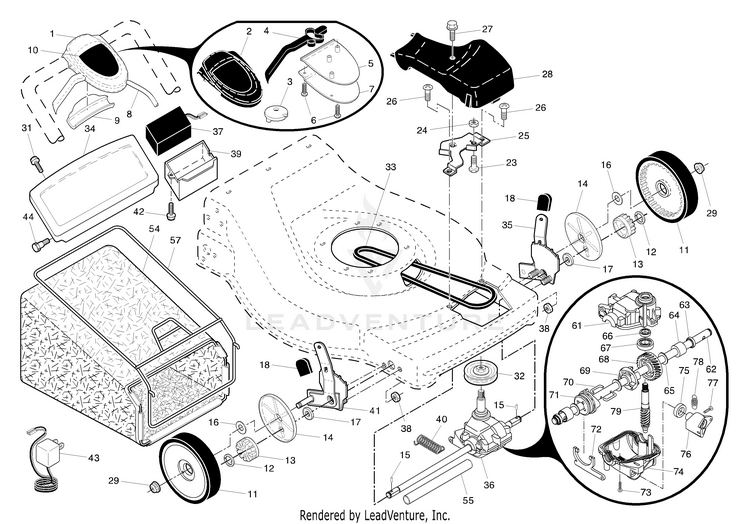

Drive Assembly

...
...
1
CONTROL.DR.EZ.FWG.SHORT.BK/BK (Includes Cable) HUS-532404142
...
2
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
5
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
8
CABLE ASM HUS-532197195
...
9
EZ WALK SNAP COVER PLATE HUS-532186297
...
10
DECAL.DRIVE.CONTROL.HV HUS-532189074
...
11
WHEEL.8X1.75.5SPK.RAD.3.GREY HUS-581009202
...
12
E-RING 7/16 RE HUS-812000058
...
13
PINION.14.TEETH.FGD HUS-532403849
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
15
PAWL, DRIVE HUS-532404845
...
16
WASHER FLUT HUS-532067725
...
17
BEARING.SUPPORT.ASM HUS-587070202
...
18
KNOB.DELUXE.GRAY HUS-532196401
...
23
HINGE SCREW HUS-532088652
...
24
NUT.HEX.FLANGE.1/4 HUS-532191730
...
25
BRKT.CABLE/BELT.GUARD. HUS-532197386
...
26
SCREW.HEX.WSH HUS-532192325
...
27
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
28
COVER.DR.ASM.194407X498.CE HUS-532432666
...
29
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
31
SCREW.PAN.HEAD.#10 HUS-532141841
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
33
BELT.DRIVE.FG HUS-532196857
...
34
PANEL.TRIM.21.FWGD.ES HUS-532411190
...
35
ADJUSTER.ASM.22+FGD.RF /AWD RT (Includes Knob and Bearing) HUS-581497908
...
36
TRANSMISSION.22.FWGD HUS-532191636
...
37
BATTERY.12V.22+RWGD.AGM HUS-584353901
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
39
BOX.BATTERY.TRIM HUS-532186237
...
40
SPRING RETURN HUS-532192849
...
41
ADJUSTER.ASM.22+FGD.LF /AWD LT (Includes Knob and Bearing) HUS-581497907
...
42
SCREW.HWH.13-16X.50 HUS-817411308
...
43
Chargers HUS-597186301
...
44
SCREW.SHOULDER.HH.10X.281X.6 HUS-532175551
...
54
GRASS.BAG.BLACK.GENERIC HUS-532401963
...
55
DRV SHAFT TUBE PM HUS-532086012
...
57
FRAME.GBAG.EZ.EMPTY HUS-532189680
...
61
GEARCASE.HOUSING HUS-532196886
...
62
TRANSMISSION.22.FWGD HUS-532191636
...
63
SEAL.OUTPUT.SHAFT HUS-532183508
...
64
BUSHING HUS-532183511
...
65
WASHER HUS-532183509
...
66
SEAL INPUT SHAFT HUS-532183514
...
67
BEARING HUS-532183506
...
68
GEAR.27.TEETH.WALK.MOWER HUS-532183499
...
69
CLUTCH HUS-532196884
...
70
WIRE, FORMED (15966) HUS-532183505
...
71
CLUTCH HUS-532196883
...
72
FORK HUS-532196882
...
73
SCREW HUS-532183513
...
74
GEARCASE.HOUSING.LOWER HUS-532196881
...
75
SEAL HUS-532196880
...
76
LEVER HUS-532196879
...
77
SCREW.LEVER. HUS-532196878
...
78
SPRING. HUS-532196877
...
79
SHAFT INPUT (13041) HUS-532183502

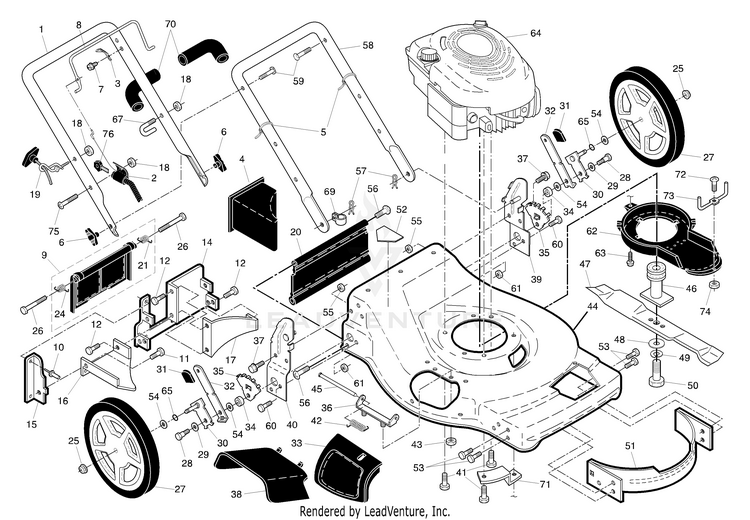

Handle & Deck Assembly

...
...
1
HANDLE.ASM.GRY.W/GRIP (Includes Foam Grip) HUS-532427658
...
2
KIT.CONTROL.COMBI.KEYW/HARNESS HUS-532189686
...
3
BRACKET.UPSTOP HUS-532850733
...
4
PLUG.MULCH.22RD HUS-532166649
...
5
WIRE TIE HUS-532007192
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
7
SCREW HUS-532750634
...
8
BAIL.DSTRT.FL.AW.CREAS.ORANGE HUS-532197019
...
9
KIT.DOOR.ASM.REAR.PLAZ.22 (Includes Springs) HUS-532193679
...
10
RIVET BLIND HUS-532128415
...
11
SCREW.HXTAP.10-24 HUS-532150050
...
12
SCREW HUS-532054583
...
14
PLATE.BACK.22.RD/VE/STD HUS-532195622
...
15
SIDE BAFFLE HUS-532138860
...
16
BAFFLE.DISCHRG.22RD.VE.N/SLOTS HUS-532176655
...
17
BAFFLE.REAR.HSG.ASM.QT.22.BLAC HUS-532140661
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
20
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
21
DOOR SPRING LH HUS-532170938
...
24
DOOR SPRING RH HUS-532170939
...
25
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
26
BOLT HUS-532184193
...
27
WHEEL.12X1.75.5SPK.GRAY HUS-581010309
...
28
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
29
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
30
ARM.ASM.AXLE.12/14 REC.WHL HUS-532196021
...
31
KNOB.S/P.RWGD.EXT.ERGO.GREY HUS-532189808
...
32
SPRING.SELECTOR.EXTENSION HUS-532198456
...
33
DOOR.MULCH.22.REAR.FWGD.GREY HUS-532197029
...
34
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
35
WHEEL ADJUSTING BRACKET HUS-532700325
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
38
DEFLECTOR.CLIPPING.22.FGD.BLAC HUS-532402574
...
39
BRACKET.ASM.HDL.LT.EZEM.22.BLA HUS-532195915
...
40
BRKT.ASM.HND/HW.RT.BLACK HUS-532195914
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
42
SPRING.TORSION HUS-532193000
...
43
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
44
HOUSING.22.EZ.FWD.ORANGE.WALK (Includes Key Numbers 14, 15 and 51) HUS-532196398
...
45
ROD.HINGE.21 HUS-532175650
...
46
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
47
BLADE 22" HUS-532141114
...
48
WASHER,HARDEN HUS-532851074
...
49
Washers HUS-596238701
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
51
FRONT BAFFLE KIT HUS-532170031
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
53
SCREW 1/4X20 HUS-817600406
...
54
WASHER.FLAT.1/2 HUS-532088348
...
55
Nuts HUS-596322601
...
56
HINGE SCREW HUS-532088652
...
57
HAIRPIN COTTER HUS-532051793
...
58
HANDLE.LOWER.21.FGD.ES.NB.GRAY HUS-583757501
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
60
BOLT HUS-874760612
...
61
Nuts HUS-596322601
...
62
KIT.SHIELD.DEBRIS.TORUS. HUS-532413032
...
63
SCREW.HEX.WSH HUS-532192325
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
67
CLIP.WIREFORM.PACK.TOR HUS-532401607
...
69
CLIP.CABLE.BLK HUS-532197991
...
70
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
71
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
72
SCREW.#8.MACH HUS-532182227
...
73
KEEPER.BELT.FGD HUS-532197162
...
74
NUT.HEX.#8 HUS-532182228
...
75
SCREW.(COMBINATION CONTROL) HUS-532186159
...
76
KEY.MOLDED HUS-532180331
...
xx
WARNING DECAL (not shown) HUS-530402152
...
xx
MANUAL.O.96143001200.E HUS-532400510
