Husqvarna 6522 SL - 96143000801 (2005-09) Walk Behind Mower

Model: 6522 SL - 96143000801 (2005-09)

Save Part Not Listed?
product name

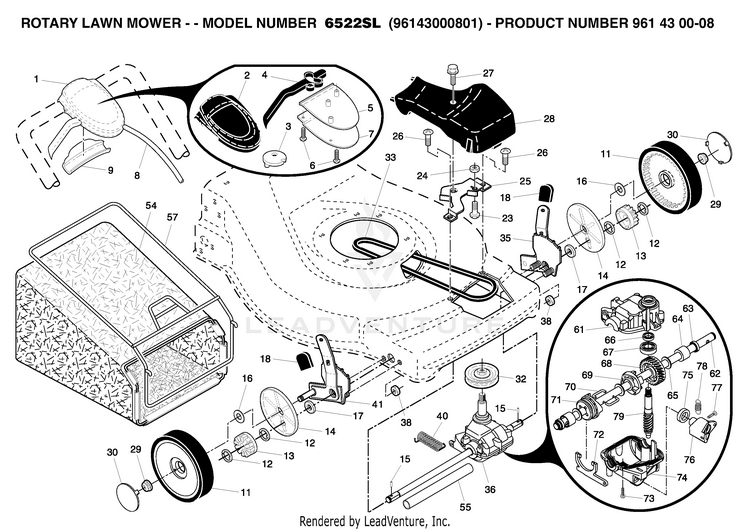

DRIVE

...
...
2
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
54
GRASS.BAG.BLACK.GENERIC HUS-532401963
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
33
BELT.DRIVE.FG HUS-532196857
...
25
Belt Guide Bracket HUS-532196054
...
41
ADJUSTER.ASM.22+FGD.LF /AWD LT HUS-581497907
...
11
WHEEL.8X2.PR.LP.RADII.BLACK.BU HUS-532180775
...
1
CONTROL.DR.EZ.FWG.SHORT.BK/BK HUS-532404142
...
78
SPRING. HUS-532196877
...
74
GEARCASE.HOUSING.LOWER HUS-532196881
...
62
TRANSMISSION.22.FWGD HUS-532191636
...
61
GEARCASE.HOUSING HUS-532196886
...
18
SELECTOR KNOB HUS-532701037
...
63
SEAL.OUTPUT.SHAFT HUS-532183508
...
30
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
66
SEAL INPUT SHAFT HUS-532183514
...
36
TRANSMISSION.22.FWGD HUS-532191636
...
77
SCREW.LEVER. HUS-532196878
...
72
FORK HUS-532196882
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
71
CLUTCH HUS-532196883
...
69
CLUTCH HUS-532196884
...
26
SCREW HUS-532188040
...
70
WIRE, FORMED (15966) HUS-532183505
...
29
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
40
SPRING RETURN HUS-532192849
...
32
Drive Pulley HUS-532194082
...
28
FENDER.PNT.CRD.MS428 K HUS-532197364
...
68
GEAR.27.TEETH.WALK.MOWER HUS-532183499
...
5
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
27
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
12
E-RING 7/16 RE HUS-812000058
...
9
EZ WALK SNAP COVER PLATE HUS-532186297
...
73
SCREW HUS-532183513
...
23
HINGE SCREW HUS-532088652
...
24
NUT.HEX.FLANGE.1/4 HUS-532191730
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
75
SEAL HUS-532196880
...
6
DECAL HUS-532186198
...
57
FRAME.GBAG.EZ.EMPTY HUS-532189680
...
13
PINION.14.TEETH.FGD HUS-532403849
...
8
CABLE ASM HUS-532197195
...
64
BUSHING HUS-532183511
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
35
ADJUSTER.ASM.22+FGD.RF /AWD RT HUS-581497908
...
17
BEARING.SUPPORT.ASM HUS-587070202
...
65
WASHER HUS-532183509
...
16
WASHER FLUT HUS-532067725
...
76
LEVER HUS-532196879
...
67
BEARING HUS-532183506
...
79
SHAFT INPUT (13041) HUS-532183502
...
15
PAWL, DRIVE HUS-532404845
...
55
DRV SHAFT TUBE PM HUS-532086012

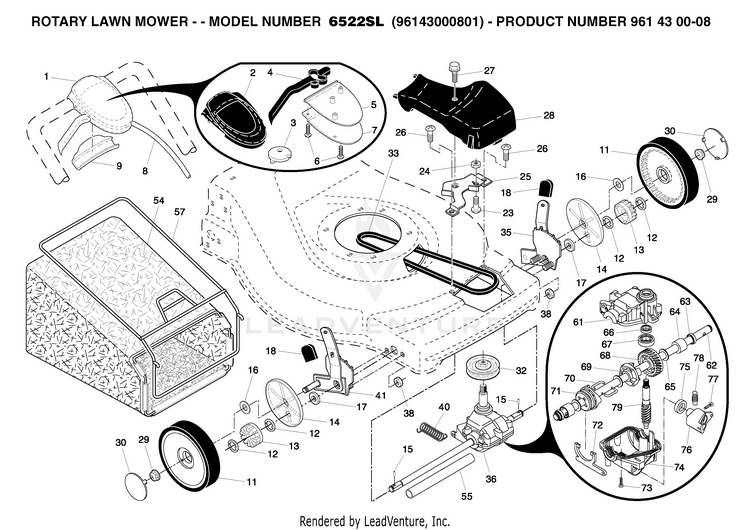

DRIVE 2

...
...
11
WHEEL.8X2.PR.LP.RADII.BLACK.BU HUS-532180775
...
17
BEARING.SUPPORT.ASM HUS-587070202
...
16
WASHER FLUT HUS-532067725
...
33
BELT.DRIVE.FG HUS-532196857
...
67
BEARING HUS-532183506
...
25
Belt Guide Bracket HUS-532196054
...
69
CLUTCH HUS-532196884
...
72
FORK HUS-532196882
...
40
SPRING RETURN HUS-532192849
...
77
SCREW.LEVER. HUS-532196878
...
18
SELECTOR KNOB HUS-532701037
...
1
CONTROL.DR.EZ.FWG.SHORT.BK/BK HUS-532404142
...
61
GEARCASE.HOUSING HUS-532196886
...
54
GRASS.BAG.BLACK.GENERIC HUS-532401963
...
76
LEVER HUS-532196879
...
62
TRANSMISSION.22.FWGD HUS-532191636
...
2
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
32
Drive Pulley HUS-532194082
...
73
SCREW HUS-532183513
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
75
SEAL HUS-532196880
...
71
CLUTCH HUS-532196883
...
12
E-RING 7/16 RE HUS-812000058
...
8
CABLE ASM HUS-532197195
...
79
SHAFT INPUT (13041) HUS-532183502
...
3
PULLEY.CAM.DRIVE.CONTROL.HV HUS-532187353
...
66
SEAL INPUT SHAFT HUS-532183514
...
28
FENDER.PNT.CRD.MS428 K HUS-532197364
...
78
SPRING. HUS-532196877
...
36
TRANSMISSION.22.FWGD HUS-532191636
...
68
GEAR.27.TEETH.WALK.MOWER HUS-532183499
...
24
NUT.HEX.FLANGE.1/4 HUS-532191730
...
23
HINGE SCREW HUS-532088652
...
64
BUSHING HUS-532183511
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
35
ADJUSTER.ASM.22+FGD.RF /AWD RT HUS-581497908
...
30
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
6
DECAL HUS-532186198
...
26
SCREW HUS-532188040
...
70
WIRE, FORMED (15966) HUS-532183505
...
29
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
57
FRAME.GBAG.EZ.EMPTY HUS-532189680
...
41
ADJUSTER.ASM.22+FGD.LF /AWD LT HUS-581497907
...
13
PINION.14.TEETH.FGD HUS-532403849
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
55
DRV SHAFT TUBE PM HUS-532086012
...
9
EZ WALK SNAP COVER PLATE HUS-532186297
...
65
WASHER HUS-532183509
...
74
GEARCASE.HOUSING.LOWER HUS-532196881
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
5
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
27
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
15
PAWL, DRIVE HUS-532404845
...
63
SEAL.OUTPUT.SHAFT HUS-532183508

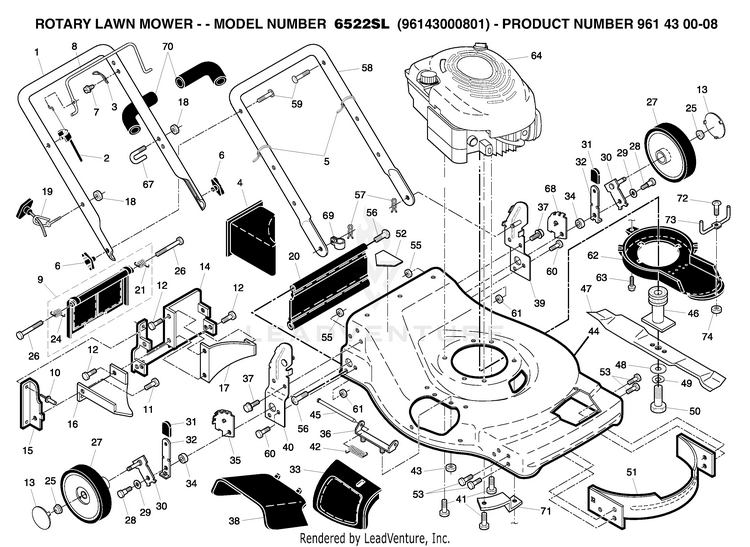

FRAME

...
...
62
KIT.SHIELD.DEBRIS.TORUS. HUS-532413032
...
39
BRKT.ASM.HANDLE.LT HUS-532195916
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
5
WIRE TIE HUS-532007192
...
49
Washers HUS-596238701
...
31
KNOB HUS-532087877
...
57
HAIRPIN COTTER HUS-532051793
...
15
SIDE BAFFLE HUS-532138860
...
70
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
42
SPRING.TORSION HUS-532193000
...
58
HANDLE.LOWR.DLX.20RD.CLIP.BLAC HUS-532151590
...
26
BOLT HUS-532184193
...
44
HOUSING.22.EZ.FWD.ORANGE.WALK HUS-532196398
...
14
PLATE.BACK.22.RD/VE/STD HUS-532195622
...
10
RIVET BLIND HUS-532128415
...
34
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
21
DOOR SPRING LH HUS-532170938
...
17
BAFFLE.REAR.HSG.ASM.QT.22.BLAC HUS-532140661
...
12
SCREW HUS-532054583
...
24
DOOR SPRING RH HUS-532170939
...
56
HINGE SCREW HUS-532088652
...
67
CLIP.WIREFORM.PACKAGIN HUS-532195504
...
- -
WARNING DECAL HUS-530402152
...
38
DEFLECTOR.CLIPPING.22.FGD.BLAC HUS-532402574
...
60
BOLT HUS-874760612
...
68
WHEEL ADJUSTING BRACKET LH HUS-532407493
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
8
BAIL.DSTRT.FL.AW.ORANGE HUS-532187940
...
3
BRACKET.UPSTOP HUS-532850733
...
71
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
72
SCREW.#8.MACH HUS-532182227
...
30
ARM.AXLE.ASM.BZP HUS-532145935
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
61
Nuts HUS-596322601
...
7
SCREW HUS-532750634
...
53
SCREW 1/4X20 HUS-817600406
...
73
KEEPER.BELT.FGD HUS-532197162
...
2
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
25
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
1
HANDLE.UP.ASM.DSTRT/FLT HUS-532189740
...
11
SCREW.HXTAP.10-24 HUS-532150050
...
69
CLIP.CABLE.BLK HUS-532197991
...
74
NUT.HEX.#8 HUS-532182228
...
48
WASHER,HARDEN HUS-532851074
...
51
FRONT BAFFLE KIT HUS-532170031
...
16
BAFFLE.DISCHRG.22RD.VE.N/SLOTS HUS-532176655
...
4
PLUG.MULCH.22RD HUS-532166649
...
9
KIT.DOOR.ASM.REAR.PLAZ.22 HUS-532193679
...
13
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
33
DOOR.MULCH.22.REAR.FWGD.GREY HUS-532197029
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
43
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
29
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
27
WHEEL.8X2.PR.LP.RADII.BLK HUS-532150339
...
47
BLADE 22" HUS-532141114
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
63
SCREW.HEX.WSH HUS-532192325
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
55
Nuts HUS-596322601
...
28
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
32
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
35
BRACKET.ADJ.5.IDL.RTAB.ADS HUS-532407492
...
20
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
46
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
40
BRKT.ASM.HANDLE.RT.BLACK HUS-532195917
...
45
ROD.HINGE.21 HUS-532175650

FRAME 2

...
...
20
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
58
HANDLE.LOWR.DLX.20RD.CLIP.BLAC HUS-532151590
...
42
SPRING.TORSION HUS-532193000
...
7
SCREW HUS-532750634
...
24
DOOR SPRING RH HUS-532170939
...
15
SIDE BAFFLE HUS-532138860
...
4
PLUG.MULCH.22RD HUS-532166649
...
56
HINGE SCREW HUS-532088652
...
61
Nuts HUS-596322601
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
14
PLATE.BACK.22.RD/VE/STD HUS-532195622
...
13
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
69
CLIP.CABLE.BLK HUS-532197991
...
32
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
48
WASHER,HARDEN HUS-532851074
...
47
BLADE 22" HUS-532141114
...
68
WHEEL ADJUSTING BRACKET LH HUS-532407493
...
21
DOOR SPRING LH HUS-532170938
...
60
BOLT HUS-874760612
...
45
ROD.HINGE.21 HUS-532175650
...
30
ARM.AXLE.ASM.BZP HUS-532145935
...
28
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
57
HAIRPIN COTTER HUS-532051793
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
9
KIT.DOOR.ASM.REAR.PLAZ.22 HUS-532193679
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
35
BRACKET.ADJ.5.IDL.RTAB.ADS HUS-532407492
...
29
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
40
DOOR.MULCH.22.REAR.FWGD.GREY HUS-532197029
...
71
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
12
SCREW HUS-532054583
...
73
KEEPER.BELT.FGD HUS-532197162
...
49
Washers HUS-596238701
...
34
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
11
SCREW.HXTAP.10-24 HUS-532150050
...
16
BAFFLE.DISCHRG.22RD.VE.N/SLOTS HUS-532176655
...
72
SCREW.#8.MACH HUS-532182227
...
- -
WARNING DECAL HUS-530402152
...
51
FRONT BAFFLE KIT HUS-532170031
...
31
KNOB HUS-532087877
...
8
BAIL.DSTRT.FL.AW.ORANGE HUS-532187940
...
63
SCREW.HEX.WSH HUS-532192325
...
43
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
38
DEFLECTOR.CLIPPING.22.FGD.BLAC HUS-532402574
...
53
SCREW 1/4X20 HUS-817600406
...
2
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
70
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
25
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
55
Nuts HUS-596322601
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
5
WIRE TIE HUS-532007192
...
39
BRKT.ASM.HANDLE.LT HUS-532195916
...
62
KIT.SHIELD.DEBRIS.TORUS. HUS-532413032
...
33
DOOR.MULCH.22.REAR.FWGD.GREY HUS-532197029
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
46
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
26
BOLT HUS-532184193
...
17
BAFFLE.REAR.HSG.ASM.QT.22.BLAC HUS-532140661
...
10
RIVET BLIND HUS-532128415
...
3
BRACKET.UPSTOP HUS-532850733
...
74
NUT.HEX.#8 HUS-532182228
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
27
WHEEL.8X2.PR.LP.RADII.BLK HUS-532150339
