Husqvarna 6522 SHB (954222718) (2001-10) Walk Mower

Model: 6522 SHB (954222718) (2001-10)

Save Part Not Listed?
product name

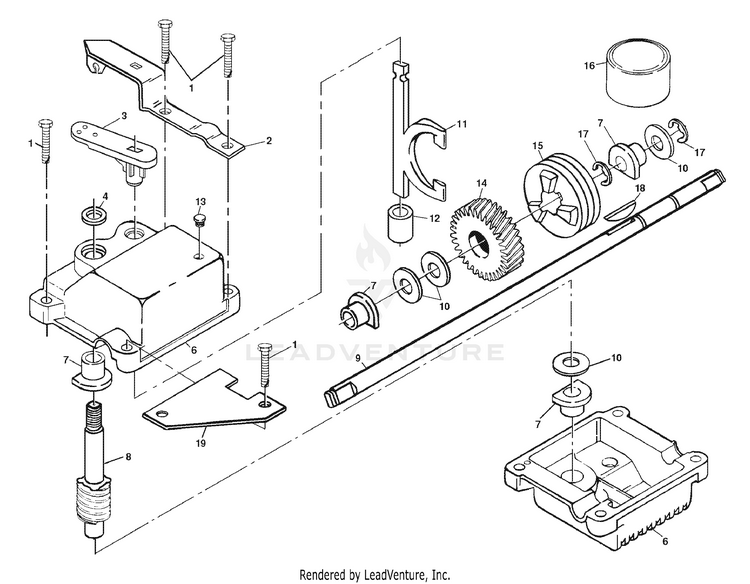

Gear Case Assembly P/N 532702511

...
...
1
HUS-817640416
...
2
ENGAGEMENT BRACKET HUS-532137055
...
3
SHIFTER HUS-532137053
...
4
SEAL HUS-532057072
...
6
GEAR CASE (Includes Key Numbers 4 and 7) HUS-532048373
...
7
BEARING HUS-532077881
...
8
SHAFT GEAR WORM HUS-532183863
...
9
DRIVE SHAFT, 20-5/8" HUS-532137074
...
10
THRUST WASHER HUS-532057079
...
11
YOKE.VIBRATORY FINISH. HUS-532131484
...
12
BUSHING HUS-532700343
...
13
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
14
GEAR.HELICAL HUS-532137050
...
15
CLUTCH JAW HUS-532750436
...
16
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
17
E-RING HUS-812000003
...
18
HI PRO KEY HUS-532850848
...
19
BRACKET SPRING HUS-532125441
...
xx
TRANSMISSION 22RD HUS-532187211

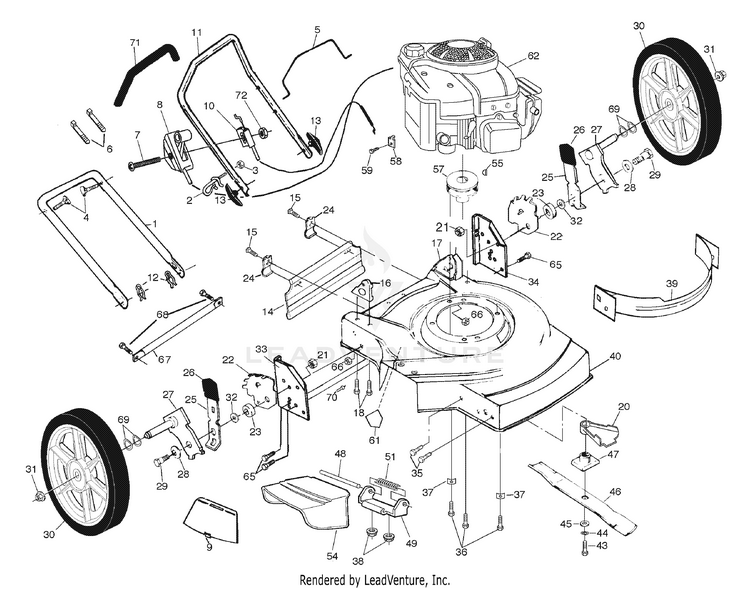

Repair Parts (A)

...
...
1
HANDLE.LOWER.21.FWGD.BLACK HUS-532175245
...
2
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
3
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
4
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
5
BAIL.CONT.WIRE.DLX.COM.BLK HUS-583678201
...
6
WIRE TIE HUS-532007192
...
7
SCREW.PAN.HEAD HUS-532158755
...
8
CONTROL.THROTL.48.5.INTK.RT.HS HUS-532182157
...
9
PLATE.MULCH.BLACK HUS-532751772
...
10
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
11
HANDLE.UP.DF.21/22.BLK( 3 2) HUS-532166862
...
12
HAIRPIN COTTER HUS-532051793
...
13
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
14
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
15
SCREW HUS-817021008
...
16
BRACKET.ASM.HDL.RT.W/HOLE.BLAC HUS-532170345
...
17
BRACKET.ASM.HDL.LT.W/HOLE.BLAC HUS-532170346
...
18
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
20
KIT.SHIELD.DEBRIS.21.RWGD.EZ HUS-532048283
...
21
Nuts HUS-596322601
...
22
WHEEL ADJUSTING BRACKET HUS-532700325
...
23
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
24
BRACKET.SKIRT.BZP HUS-532192301
...
25
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
26
KNOB HUS-532087877
...
27
ARM.ASM.AXLE.REAR.BZP. HUS-532750913
...
28
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
29
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
30
WHEEL.14X2.PR.SP.RAD.GY HUS-532752063
...
31
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
32
WASHER.FLAT.1/2 HUS-532088348
...
33
WHEEL SUPPORT BRKT(R) HUS-532178065
...
34
BRACKET.SUPPORT.LT.BLACK HUS-532178066
...
35
SCREW 1/4X20 HUS-817600406
...
36
BOLT 3/8-16X1-1/8 HUS-532150406
...
37
WASHER.ENGINE.BZP HUS-532125078
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
39
FRONT BAFFLE KIT HUS-532170031
...
40
MOWER HOUSING KIT (Includes Key No. 61) HUS-532176605
...
43
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
44
Washers HUS-596238701
...
45
WASHER,HARDEN HUS-532851074
...
46
BLADE 22" HUS-532141114
...
47
BLADE ADAPTOR HUS-532851514
...
48
ROD.HINGE.COMBI-C HUS-532147286
...
49
BRACKET PM HUS-532087593
...
51
SPRING PM HUS-532087589
...
54
DISCHARGE GUARD HUS-532850778
...
55
HI PRO KEY PM WSL HUS-532087677
...
57
ENGINE.PULLEY.FWG HUS-532084596
...
58
WASHER.ENGINE.BZP Order parts from engine manufacturer HUS-532125078
...
59
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
61
DECAL.CUTFINGER.CE.02 HUS-581579101
...
65
BOLT HUS-874760612
...
66
Nuts HUS-596322601
...
67
ROD, SUPPORT HUS-532165175
...
68
SCREW HUS-532054583
...
69
KIT.O-RING/WASHER HUS-532428450
...
70
RIVET BLIND HUS-532128415
...
71
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
72
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
xx
WARNING DECAL (not shown) HUS-530402152
...
xx
AIR CONDUCTOR (not shown) HUS-532125381
...
xx
Owner's Manual (English/French) HUS-532180301

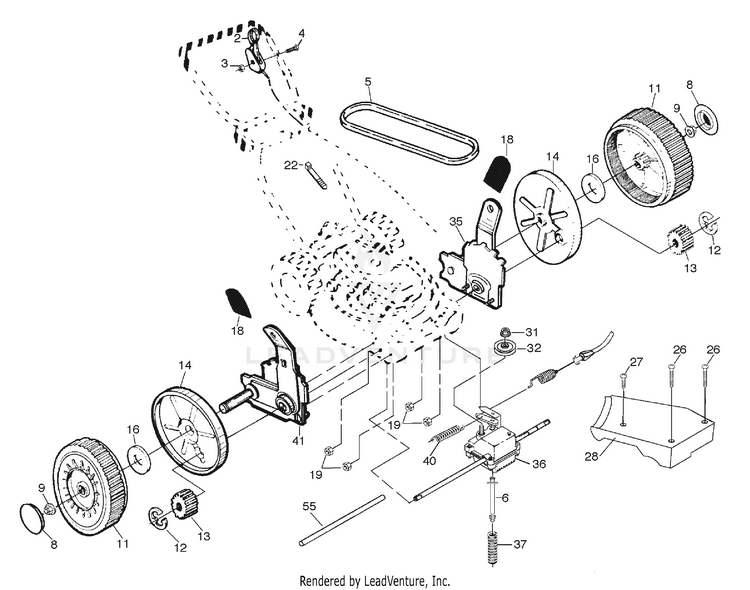

Repair Parts (B)

...
...
2
DRIVE CONTROL 59.8 FWGD HUS-532184588
...
3
NUT.HEX.FLANGE.1/4 HUS-532191730
...
4
SCREW.PAN.HEAD HUS-532158755
...
5
KIT.SERVICE.BELT/SPRING. HUS-532157769
...
6
SPRING RETAINER HUS-532150495
...
8
CAP.HUB.BLACK.WALK HUS-532077400
...
9
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
11
KIT.WHEEL.8X2.RADIAL.BLACK HUS-532193144
...
12
E-RING 7/16 RE HUS-812000058
...
13
PINION GEAR HUS-532137054
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
16
WASHER FLUT HUS-532067725
...
18
KNOB HUS-532087877
...
19
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
22
WIRE TIE HUS-532007192
...
26
SCREW HUS-532146072
...
27
SCREW HUS-817021008
...
28
COVER DRIVE HUS-532700422
...
31
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
32
DRIVEN PULLEY HUS-532194126
...
35
WHEEL ADJ ASM (L) HUS-532151521
...
36
TRANSMISSION 22RD HUS-532187211
...
37
SPRING.EXTENSION HUS-532137090
...
40
SPRING HUS-532075192
...
41
KIT.ADJUSTER.ASM.(151514).RT HUS-532151520
...
55
DRV SHAFT TUBE PM HUS-532086012
