Husqvarna 6522 SH (96143000900) (2005-01) Walk Mower

Model: 6522 SH (96143000900) (2005-01)

Save Part Not Listed?
product name

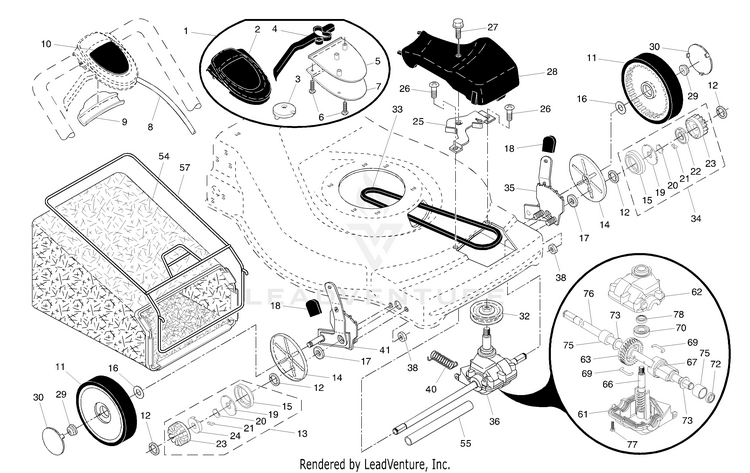

Drive Assembly

...
...
1
CONTROL.DR.EZ.FWG.SHORT.BK/BK (Includes Cable) HUS-532404142
...
2
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
3
Pulley HUS-532187003
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
5
KIT.CONTROL.DR.CASE.HALVES.GRY HUS-532414555
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
8
CONTROL.DR.EZ.FWG.SHORT.BK/BK HUS-532404142
...
9
EZ WALK SNAP COVER PLATE HUS-532186297
...
10
DECAL.DRIVE.CONTROL.HV HUS-532189074
...
11
WHEEL.8X2.PR.LP.RADII.BLACK.BU HUS-532180775
...
12
E-RING 7/16 RE HUS-812000058
...
13
KIT.PINION.ASM HUS-532414860
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
15
SEAL.PINION HUS-532184172
...
16
WASHER FLUT HUS-532067725
...
17
BEARING, BALL HUS-532169911
...
18
KNOB.DELUXE.GRAY HUS-532196401
...
19
DISC.DRIVE.21.EZ-WALK HUS-532175104
...
20
SPRING, TORSION HUS-532188291
...
21
PAWL.DRIVE.21.EZ-WALK HUS-532175098
...
22
RETAINER.DRIVE.21.EZ-WALK.LT HUS-532175105
...
23
GEAR, PINION HUS-532175103
...
24
RETAINER, DRIVE, RH HUS-532175102
...
25
Belt Guide Bracket HUS-532196054
...
26
SCREW HUS-532188040
...
27
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
28
COVER.,DRIVE.TORUS HUS-583721101
...
29
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
30
CAP.HUB.ARC.SPOKE.8".LP HUS-532150182
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
33
BELT DRIVE HUS-532189922
...
34
KIT.PINION.ASM HUS-532414860
...
35
KIT.ADJUSTER.ASM.EZ.LH (Includes Knob and Bearing) HUS-532180915
...
36
TRANSMISSION.22.FWGD. HUS-532189380
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
40
SPRING HUS-532406558
...
41
KIT.ADJUSTER.ASM.EZ(169770).RT (Includes Knob and Bearing) HUS-532180914
...
54
GRASS.BAG.BLACK.GENERIC HUS-532401963
...
55
DRV SHAFT TUBE PM HUS-532086012
...
57
FRAME.GBAG.EZ.EMPTY HUS-532189680
...
61
LOWER CASE HUS-532187525
...
62
UPPER CASE HUS-532187526
...
63
GEAR.27.TEETH.WALK.MOWER HUS-532183499
...
66
SHAFT INPUT (13056) HUS-532187527
...
67
SPACER HUS-532187528
...
69
WIRE, FORMED (15966) HUS-532183505
...
70
BEARING HUS-532183506
...
72
SEAL.OUTPUT.SHAFT HUS-532183508
...
73
WASHER HUS-532183509
...
75
BUSHING HUS-532183511
...
76
Shaft, Output HUS-532192877
...
77
SCREW HUS-532183513
...
78
SEAL INPUT SHAFT HUS-532183514

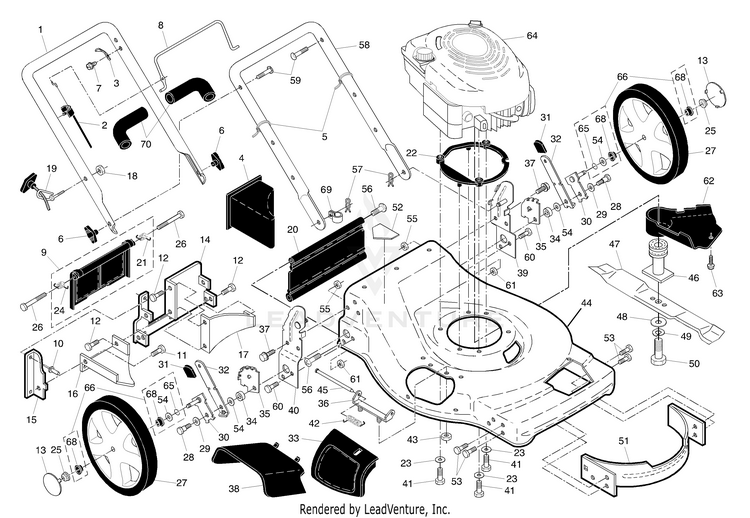

Handle & Deck Assembly

...
...
1
HANDLE.UP.ASM.DSTRT/FLT (Includes Foam Grip) HUS-532189740
...
2
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
3
BRACKET.UPSTOP HUS-532850733
...
4
PLUG.MULCH.22RD HUS-532166649
...
5
WIRE TIE HUS-532007192
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
7
SCREW HUS-532750634
...
8
BAIL.DSTRT.FL.AW.ORANGE HUS-532187940
...
9
KIT.DOOR.ASM.REAR.PLAZ.22 (Includes Springs) HUS-532193679
...
10
RIVET BLIND HUS-532128415
...
11
SCREW.HXTAP.10-24 HUS-532150050
...
12
SCREW HUS-532054583
...
13
3" HUBCAP SILVER HUS-532150635
...
14
PLATE.BACK.22.RD/VE/STD HUS-532195622
...
15
SIDE BAFFLE HUS-532138860
...
16
BAFFLE.DISCHRG.22RD.VE.N/SLOTS HUS-532176655
...
17
BAFFLE.REAR.HSG.ASM.QT.22.BLAC HUS-532140661
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
20
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
21
DOOR SPRING LH HUS-532170938
...
22
SPACER HUS-532701313
...
23
WASHER HUS-532053998
...
24
DOOR SPRING RH HUS-532170939
...
25
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
26
BOLT HUS-532184193
...
27
WHEEL.14X2.PR.RADII.SILV.MAG.B HUS-532180552
...
28
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
29
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
30
ARM.ASM.AXLE.REAR.BZP. HUS-532750913
...
31
KNOB.S/P.RWGD.EXT.ERGO.GREY HUS-532189808
...
32
SPRING.SELECTOR.EXTENSION HUS-532198456
...
33
DOOR.MULCH.22.REAR.FWGD.GREY HUS-532197029
...
34
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
35
WHEEL ADJUSTING BRACKET HUS-532700325
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
38
DEFLECTOR.CLIPPING.22.FGD.BLAC HUS-532402574
...
39
BRKT.ASM.HND/HW.RT.BLACK HUS-532195914
...
40
BRACKET.ASM.HDL.LT.EZEM.22.BLA HUS-532195915
...
41
SCREW HUS-532850999
...
42
SPRING.TORSION HUS-532193000
...
43
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
44
HOUSING.22.EZ.FWD.ORANGE.WALK (Includes Key Numbers 14, 15 and 51) HUS-532196398
...
45
ROD.HINGE.21 HUS-532175650
...
46
ADAPTER.BLADE/PULLEY 25MM FGD HUS-532187037
...
47
BLADE 22" HUS-532141114
...
48
WASHER,HARDEN HUS-532851074
...
49
Washers HUS-596238701
...
50
BOLT.BLADE HUS-532179617
...
51
FRONT BAFFLE KIT HUS-532170031
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
53
SCREW 1/4X20 HUS-817600406
...
54
WASHER.FLAT.1/2 HUS-532088348
...
55
Nuts HUS-596322601
...
56
HINGE SCREW HUS-532088652
...
57
HAIRPIN COTTER HUS-532051793
...
58
HANDLE.LOWR.DLX.20RD.CLIP.BLAC HUS-532151590
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
60
BOLT HUS-874760612
...
61
Nuts HUS-596322601
...
62
Debris Shield HUS-532196048
...
63
SCREW.HEX.WSH HUS-532192325
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
66
KIT.BUSHING.WHEEL.14" HUS-532193498
...
68
Bushing, Nylon, Black HUS-532193696
...
69
CLIP.CABLE.BLK HUS-532197991
...
70
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
xx
WARNING DECAL (not shown) HUS-530402152
...
xx
Owner’s Manual, English / French HUS-532196402
