Husqvarna 6522 CHC (954222725) (2001-11) Walk Mower

Model: 6522 CHC (954222725) (2001-11)

Save Part Not Listed?
product name

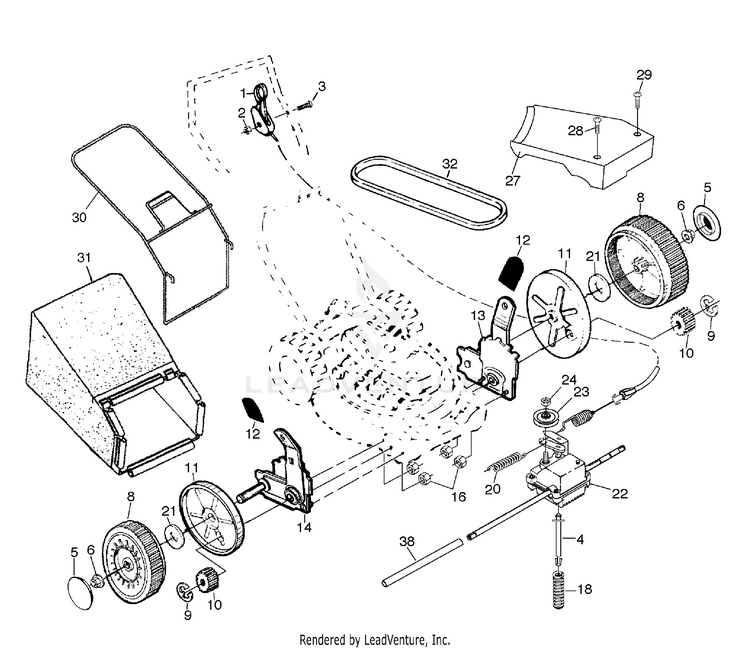

Drive Assembly

...
...
1
DRIVE CONTROL 59.8 FWGD HUS-532184588
...
2
NUT.HEX.FLANGE.1/4 HUS-532191730
...
3
SCREW.PAN.HEAD HUS-532158755
...
4
SPRING RETAINER HUS-532150495
...
5
CAP.HUB.BLACK.WALK HUS-532077400
...
6
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
8
WHEEL.8X2.PR.LP.RADII.GY HUS-532180769
...
9
E-RING 7/16 RE HUS-812000058
...
10
PINION GEAR HUS-532137054
...
11
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
12
KNOB HUS-532087877
...
13
WHEEL ADJ ASM (L) HUS-532151521
...
14
KIT.ADJUSTER.ASM.(151514).RT HUS-532151520
...
16
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
18
SPRING.EXTENSION HUS-532137090
...
20
SPRING HUS-532075192
...
21
WASHER FLUT HUS-532067725
...
22
TRANSMISSION 22RD HUS-532187211
...
23
DRIVEN PULLEY HUS-532194126
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
27
DRIVE COVER-GRAY HUS-532700479
...
28
SCREW HUS-532146072
...
29
SCREW.SLOT.TORX. HUS-532149746
...
30
CATCHER FRAME HUS-532169931
...
31
GBAG.29510010.BLK.GEN.250R2 HUS-532410685
...
32
KIT.SERVICE.BELT/SPRING. HUS-532157769
...
38
DRV SHAFT TUBE PM HUS-532086012

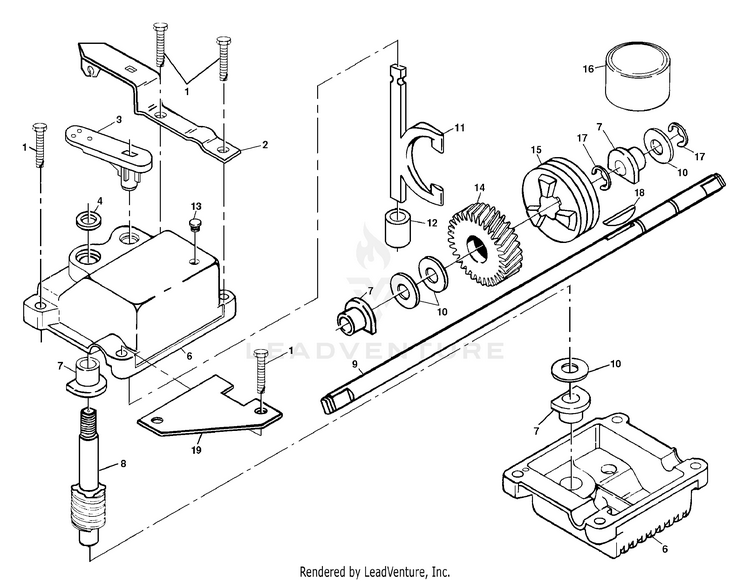

Gear Case Assembly P/N 532702511

...
...
1
HUS-817640416
...
2
ENGAGEMENT BRACKET HUS-532137055
...
3
SHIFTER HUS-532137053
...
4
SEAL HUS-532057072
...
6
GEAR CASE (Includes Key Numbers 4 and 7) HUS-532048373
...
7
BEARING HUS-532077881
...
8
SHAFT GEAR WORM HUS-532183863
...
9
DRIVE SHAFT, 20-5/8" HUS-532137074
...
10
THRUST WASHER HUS-532057079
...
11
YOKE.VIBRATORY FINISH. HUS-532131484
...
12
BUSHING HUS-532700343
...
13
PLUG.AUGER.GEAR.BOX.SNOW HUS-532086447
...
14
GEAR.HELICAL HUS-532137050
...
15
CLUTCH JAW HUS-532750436
...
16
GREASE, 14 OZ. CARTRIDGE HUS-585517301
...
17
E-RING HUS-812000003
...
18
HI PRO KEY HUS-532850848
...
19
BRACKET SPRING HUS-532125441
...
xx
TRANSMISSION 22RD HUS-532187211

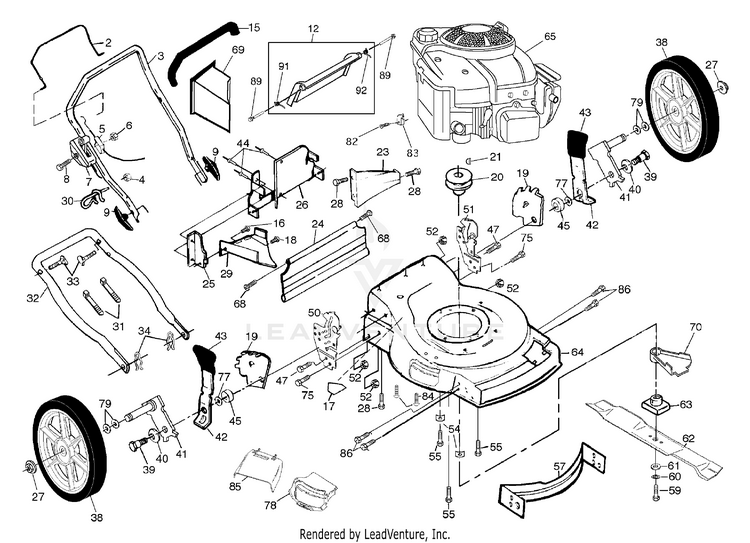

General Assembly

...
...
2
BAIL.CONT.WIRE.DLX.COM.BLK HUS-583678201
...
3
HANDLE, UPPER DLX COMF. (GRIP) HUS-532167163
...
4
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
5
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
6
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
7
THROTTLE CONTROL HUS-532700417
...
8
SCREW.PAN.HEAD HUS-532158755
...
9
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
12
KIT.DOOR.ASM.REAR.PLAZ.22 (Includes Springs) HUS-532193679
...
15
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
16
SCREW.HXTAP.10-24 HUS-532150050
...
17
DECAL.CUTFINGER.CE.02 HUS-581579101
...
18
SCREW.HXTAP.10-24 HUS-532150050
...
19
WHEEL ADJUSTING BRACKET HUS-532700325
...
20
ENGINE.PULLEY.FWG HUS-532084596
...
21
HI PRO KEY PM WSL HUS-532087677
...
23
REAR BAFFLE HUS-532133040
...
24
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
25
SIDE BAFFLE HUS-532138860
...
26
BACK PLATE HUS-532166800
...
27
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
28
SCREW HUS-532054583
...
29
BAFFLE, DISCHARGE HUS-532176041
...
30
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
31
WIRE TIE HUS-532007192
...
32
HANDLE.LOWER.21.FWGD.BLACK HUS-532175245
...
33
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
34
HAIRPIN COTTER HUS-532051793
...
38
WHEEL.14X2.PR.SP.RAD.GY HUS-532752063
...
39
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
40
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
41
ARM.ASM.AXLE.REAR.BZP. HUS-532750913
...
42
SPRING.SELECTOR.EXTENSION HUS-532198456
...
43
SELECTOR KNOB HUS-532175477
...
44
RIVET BLIND HUS-532128415
...
45
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
47
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
50
BRKT.ASM.HND/HW.RT.BLACK HUS-532195914
...
51
BRACKET.ASM.HDL.LT.EZEM.22.BLA HUS-532195915
...
52
Nuts HUS-596322601
...
54
WASHER.ENGINE.BZP HUS-532125078
...
55
BOLT 3/8-16X1-1/8 HUS-532150406
...
57
KIT.BAFFLE.FRT.22RD.FO.PU/FWGD HUS-532170557
...
59
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
60
Washers HUS-596238701
...
61
WASHER,HARDEN HUS-532851074
...
62
BLADE 22" HUS-532141114
...
63
BLADE ADAPTOR HUS-532851514
...
64
MWR HOUSING KIT HUS-532176583
...
68
HINGE SCREW HUS-532088652
...
69
PLUG.MULCH.22RD HUS-532166649
...
70
KIT.SHIELD.DEBRIS.21.RWGD.EZ HUS-532048283
...
75
BOLT HUS-874760612
...
77
WASHER.FLAT.1/2 HUS-532088348
...
78
DOOR.ASM.MULCHER.COMBI-CUT. HUS-532147738
...
79
KIT.O-RING/WASHER HUS-532428450
...
82
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
83
WASHER.ENGINE.BZP HUS-532125078
...
84
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
85
CLIP-ON DISCHARGE DEFLECTOR HUS-532145285
...
86
SCREW 1/4X20 HUS-817600406
...
89
BOLT HUS-532184193
...
91
DOOR SPRING RH HUS-532170939
...
92
DOOR SPRING LH HUS-532170938
...
xx
WARNING DECAL HUS-530402152
...
xx
Owner's Manual HUS-532181285
