Husqvarna 6521 RSA (6522RRA) (2000-01) Walk Mower

Model: 6521 RSA (6522RRA) (2000-01)

Save Part Not Listed?
product name

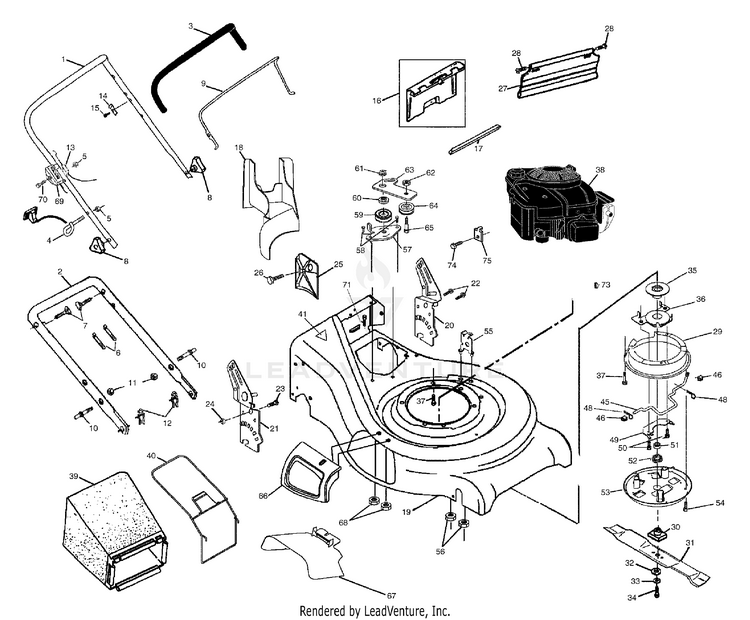

Repair Parts (A)

...
...
1
HANDLE.UP.DSTR.FGD/PU.16.BLACK (Including grip) HUS-532166860
...
2
HANDLE.LOWER.21.GREY HUS-532197202
...
3
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
WIRE TIE HUS-532007192
...
7
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
8
KNOB HUS-532087692
...
9
BAIL.CONT.COMF.PUSH.ORGANGE.RH HUS-532411083
...
10
BOLT HUS-532188821
...
11
Hardware HUS-596040501
...
12
HAIRPIN COTTER HUS-532051793
...
13
ENGINE ZONE CONTROL HUS-532133107
...
14
BRACKET.UPSTOP HUS-532850733
...
15
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
16
KIT.DOOR.REAR.21.WRAPPED.BLACK HUS-532162085
...
17
SEAL.DOOR.21" (2 2MC) HUS-532189059
...
18
PLUG.MULCHER.RGD.21. HUS-532198170
...
19
KIT, HOUSING HUS-532176599
...
20
HANDLE, BRACKET ASM. LEFT HUS-532161568
...
21
BRACKET.ASM.HNDL.21.RWGD.EZ.RT HUS-532181020
...
22
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
23
Screws HUS-596031601
...
24
Hardware HUS-596040501
...
25
CLIPPING DEFLECTOR HUS-532161333
...
26
SCREW HUS-532163409
...
27
SKIRT.REAR.21.RWGD.BLACK(2 2M) HUS-532408442
...
28
HINGE SCREW HUS-532088652
...
29
COVER.BELT.BBC.AW.TOP HUS-532190930
...
30
BLADE ADAPTOR HUS-532851514
...
31
21" MULCH BLADE PREMIUM HUS-532159267
...
32
WASHER,HARDEN HUS-532851074
...
33
Washers HUS-596238701
...
34
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
35
PULLEY, FIXED HUS-532169809
...
36
BEARING SUPT. HUS-532179222
...
37
BOLT 3/8-16X1-1/8 HUS-532150406
...
39
GBAG.29510010.BLK.GEN.250C2 HUS-532410686
...
40
FRAME.GRASS.CATCHER.WALK.21" HUS-532161358
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
45
ROD.PULLEY.ENGAGE HUS-532166034
...
46
BUSHING.PIVOT.ROD HUS-532166041
...
48
RETAINER CLIP HUS-532169605
...
49
CLAMP, PIVOT HUS-532175787
...
50
SCREW HUS-532054583
...
51
SPACER RING HUS-532169980
...
52
WASHER.WAVE.SPRING HUS-532170868
...
53
BELT COVER, BOTTOM (1 2) HUS-532173041
...
54
SCREW HUS-817021008
...
55
BRKT ASM, CABLE HUS-532166383
...
56
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
57
BRKT ASM, IDLER HUS-532166391
...
58
SCREW HUS-532057808
...
59
PULLEY.V-GROOVE.IDLER HUS-532166042
...
60
IDLER ARM SPACER HUS-532166050
...
61
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
62
NUT.CENTERLOCK.5/16- HUS-873930500
...
63
ARM.IDLER.YELLOW HUS-532166022
...
64
IDLER PULLEY HUS-532166043
...
65
SHOULDER BOLT HUS-532160829
...
66
DOOR.ASM.MULCH.21.RWD HUS-532183058
...
67
DEFLECTOR.21.MCUT.RWGD.GRAY HUS-532169699
...
68
NUT HUS-532088349
...
69
THROTTLE CONTROL HUS-532168246
...
70
SCREW.PAN.HEAD HUS-532158755
...
71
SCREW HUS-532054583
...
73
HI PRO KEY PM WSL HUS-532087677
...
74
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
75
CABLE CLAMP(ENGINE) HUS-532111190
...
xx
WARNING DECAL (Not Shown) HUS-530402152
...
xx
Owner's Manual (English/French) HUS-532177951

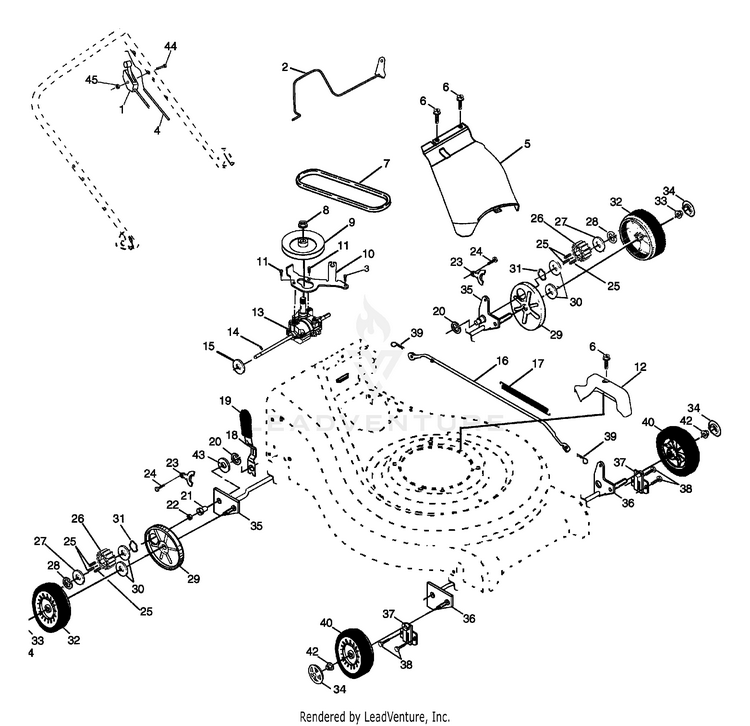

Repair Parts (B)

...
...
1
CONTROL.DRIVE.6.SPEED.B&S.BLK. HUS-532170960
...
2
BAIL CONTROL DRIVE HUS-532176593
...
3
SCREW HUS-817060408
...
4
CABLE.DRIVE.MULTI.SPEED.RWGD. HUS-532179049
...
5
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
6
SCREW HUS-532750634
...
7
V-BELT HUS-532166060
...
8
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
9
PULLEY DRIVEN HUS-532166049
...
10
BELT KEEPER BRACKET HUS-532166021
...
11
Screw Hex Wash Head 10-24 X .668 HUS-817541011
...
12
PIVOT ROD COVER HUS-532166189
...
13
TRANSMISSION ASM. HUS-532166388
...
14
PIN.SPRING.THRUST HUS-532145354
...
15
THRUST WASHER HUS-532057079
...
16
KIT.ROD.CONNECTING.REPL.161584 HUS-532414284
...
17
SPRING EXTENSION HUS-532409616
...
18
SPRING, SELECTOR HUS-532160477
...
19
KNOB.S/P.RWGD.EXT.ERGO.GREY HUS-532189808
...
20
E-RING HUS-812000022
...
21
BEARING SUPPORT.ASM HUS-532169920
...
22
BEARING, BALL HUS-532169911
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
...
24
Screw Hex Head Tapping 1/4-20 x .75 HUS-53257808
...
25
PAWL.DRIVE.ETCHED HUS-532170011
...
26
PINION.DRIVE.WALK HUS-532166450
...
27
Washers HUS-596040101
...
28
E-RING 7/16 RE HUS-812000058
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
30
WASHER FLUT HUS-532067725
...
31
KIT.O-RING/WASHER HUS-532428450
...
32
KIT.WHL.9X2.RAD.BLK(SERV ONLY) HUS-532193139
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
34
CAP.HUB.BLACK.WALK HUS-532077400
...
35
SHAFT.ASM.REAR.TORQUE. HUS-532160785
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
38
SCREW HUS-532163409
...
39
RETAINER CLIP HUS-532700279
...
40
WHEEL.8X2.PR.LP.JEEP.GREY HUS-532148435
...
42
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
43
WASHER.ZINC.PLATED HUS-819572216
...
44
SCREW.PAN.HEAD HUS-532158755
...
45
NUT.HEX.FLANGE.1/4 HUS-532191730
