Husqvarna 6521 RS (961450005-00) (2007-09) Walk Mower

Model: 6521 RS (961450005-00) (2007-09)

Save Part Not Listed?
product name

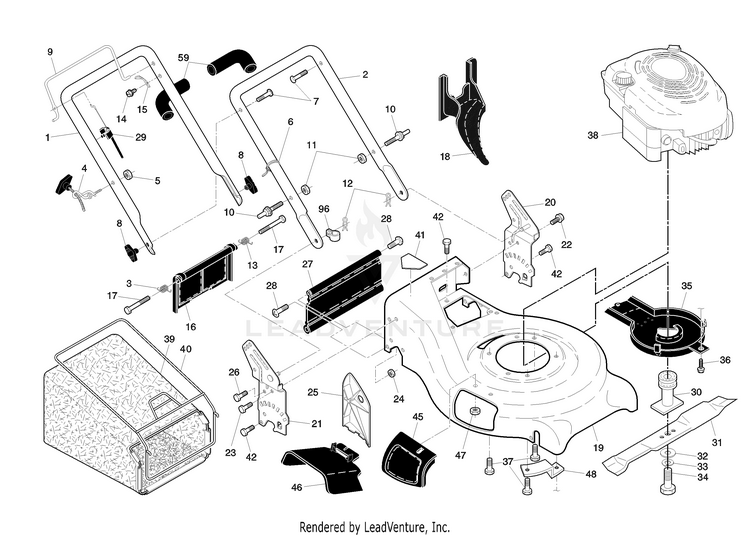

Rotary Lawn Mower (Part 1)

...
...
1
HANDLE.ASM.UP.OF/EZ.CR.GY.W/GR Includes Foam Grip HUS-583444201
...
2
HANDLE.LOWER.21.GREY HUS-532197202
...
3
SPRING.RH.REAR.DOOR.21.RWGD HUS-532405416
...
4
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
5
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
6
WIRE TIE HUS-532007192
...
7
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
8
KNOB.HANDLE.STAR.HUSQ.GRAY HUS-532185588
...
9
BAIL.DSTRT.FL.AW.CREAS.ORANGE HUS-532197019
...
10
BOLT HUS-532188821
...
11
NUT.LOCK.5/16-18 HUS-532751153
...
12
HAIRPIN COTTER HUS-532051793
...
13
SPRING.LH.REAR.DOOR.21.RWGD HUS-532405415
...
14
SCREW HUS-532750634
...
15
BRACKET.UPSTOP HUS-532850733
...
16
DOOR.REAR.21.RWGD HUS-532401815
...
17
BOLT HUS-532184193
...
18
PLUG.MULCHER.RGD.21. HUS-532198170
...
19
HOUSING.21.RWD/4PT.ORANGE.WALK HUS-532413774
...
20
LH HANDLE BRACKET ASSEMBLY HUS-532403296
...
21
BRKT.HANDLE.ASM.RWGD.21.RT.BLA HUS-532403297
...
22
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
23
Screws HUS-596031601
...
24
Hardware HUS-596040501
...
25
CLIPPING DEFLECTOR HUS-532161333
...
26
SCREW HUS-532163409
...
27
SKIRT.21.RWGD.BLACK HUS-532192876
...
28
HINGE SCREW HUS-532088652
...
29
SNAP-ON.ZONE.CABLE.ASS HUS-532191221
...
30
BLADE ADAPTER PULLEY HUS-532195963
...
31
21" WALK MOWER BLADE HUS-594893001
...
32
WASHER,HARDEN HUS-532851074
...
33
Washers HUS-596238701
...
34
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
35
KIT.SHIELD.DEBRIS.22FD/21RD HUS-585472601
...
36
SCREW.HEX.WSH HUS-532192325
...
37
BOLT 3/8-16X1-1/8 HUS-532150406
...
39
GBAG.92510010.BLK.GEN.SERVICE HUS-532410668
...
40
FRAME.GBAG.21.RWGD.SC HUS-532411951
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
42
SCREW HUS-532054583
...
45
DOOR.ASM.MULCH.21.RWD HUS-532183058
...
46
DEFLECTOR.21.MCUT.RWGD.GRAY HUS-532169699
...
47
NUT HUS-532088349
...
48
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
59
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
96
CLIP.CABLE.BLK HUS-532197991
...
xx
DECAL.CUTFINGER.CE.02 not shown HUS-581579101
...
xx
Owner’s Manual, English / Spanish HUS-532413772

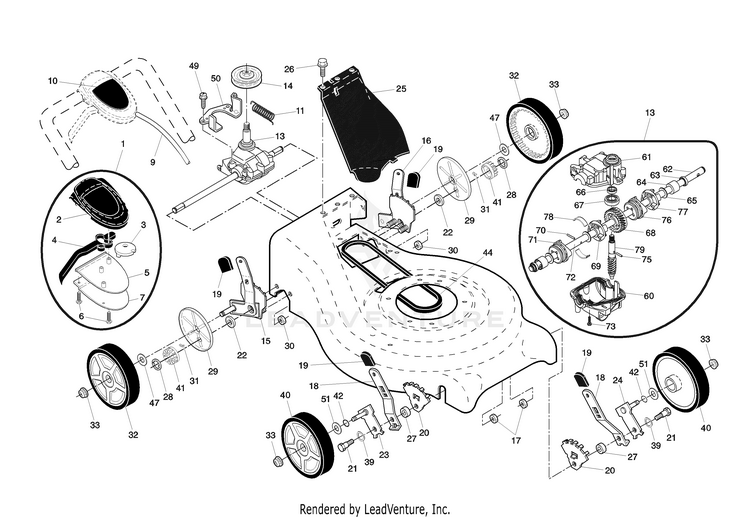

Rotary Lawn Mower (Part 2)

...
...
1
CONTROL.DR.AW.21RGD.GRY/BLACK Includes Cable HUS-532425581
...
2
COVER.TOP.DRIVE.CONTROL.BLACK HUS-532413542
...
3
PULLEY.CAM.DRIVE.CONTROL.EZ HUS-532406262
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
5
COVER.BOTTOM.DRIVE.CNTRL.BLACK HUS-532413541
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
9
CABLE.ASSY.RGD.EZ.AUTO HUS-532406258
...
10
DECAL, DRIVE HUS-532189378
...
11
SPRING HUS-532406558
...
13
TRANSMISSION.21.RWGD HUS-532404844
...
14
PULLEY.1.PIECE HUS-532193443
...
15
KIT ADJUSTER ASM.438152.RT.OR Includes Knob and Bearing HUS-583531701
...
16
KIT ADJUSTER ASM.438153.LT Includes Knob and Bearing HUS-532438467
...
17
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
18
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
19
KNOB.DELUXE.GRAY HUS-532196401
...
20
BRACKET.ADJ.5POS.ADS HUS-532407494
...
21
Hardware HUS-596203801
...
22
BEARING.SUPPORT.ASM HUS-587070202
...
23
ARM.ASM.AXLE.5/9.POS.BZP HUS-532401175
...
24
ARM.ASM.AXLE.5/9.POS. HUS-532401174
...
25
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
26
SCREW HUS-532750634
...
27
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
28
E-RING 7/16 RE HUS-812000058
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
30
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
31
PAWL, DRIVE HUS-532404845
...
32
WHEEL(R).8X1.75.5SPOKE.RAD3.BU HUS-532405744
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
34
PINIION.14.TOOTH.RGD HUS-532404835
...
39
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
40
WHEEL.8X1.75.5SPK.RAD3.GREY HUS-532197972
...
42
O-RING..070X.487.NEOPRENE HUS-532197480
...
44
BELT.RGD.VS HUS-532406580
...
47
WASHER FLUT HUS-532067725
...
49
SCREW HUS-532163409
...
50
BRACKET.BELT.GUIDE.VS.RGD.BZP HUS-532404832
...
51
WASHER.FLAT.1/2 HUS-532088348
...
60
CASE, LOWER HUS-532412747
...
61
CASE UPPER HUS-532412736
...
62
Shaft, Output, Long HUS-532412745
...
63
SEAL.OUTPUT.SHAFT HUS-532183508
...
64
BUSHING HUS-532183511
...
65
WASHER HUS-532183509
...
66
SEAL INPUT SHAFT HUS-532183514
...
67
BEARING HUS-532183506
...
68
GEAR 28 TEETH HUS-532412742
...
69
DOG.FIXED.LH.32003 HUS-532412739
...
70
PIN 7 33732 HUS-532412741
...
71
DOG.MOVEABLE.LH.32005 HUS-532412740
...
72
Shaft, Output, Short HUS-532412738
...
73
SCREW HUS-532183513
...
75
PIN 3.50.337 - 33733 HUS-532412746
...
76
DOG.FIXED.RH.32004 HUS-532412744
...
77
DOG.MOVEABLE.RH.32006 HUS-532412743
...
78
SPRING LEAF HUS-532410731
...
79
SHAFT WORM HUS-532412737
