Husqvarna 65021 CHV (96143001903) (2007-08) Walk Mower

Model: 65021 CHV (96143001903) (2007-08)

Save Part Not Listed?
product name

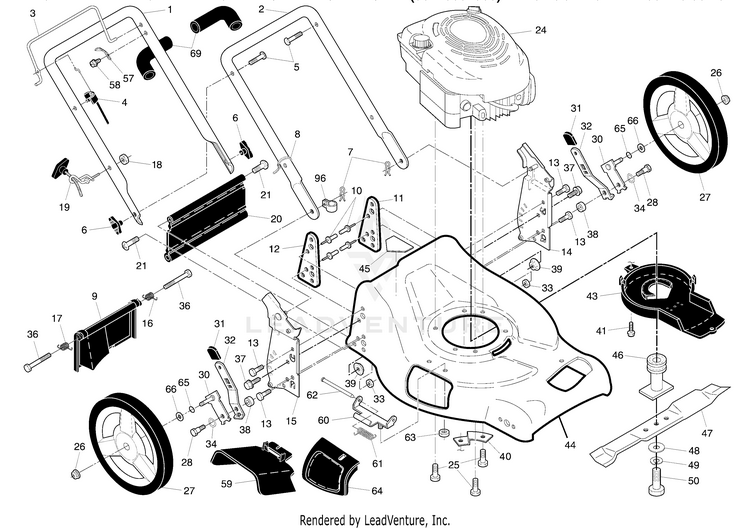

Repair Parts "A"

...
...
1
HANDLE.ASM.GRY.W/GRIP HUS-532427658
...
2
HANDLE.LOWER.21.FWGD.BLACK HUS-532175245
...
3
BAIL.DSTRT.FL.AW.CREAS.ORANGE HUS-532197019
...
4
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
5
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
7
HAIRPIN COTTER HUS-532051793
...
8
WIRE TIE HUS-532007192
...
9
DOOR.REAR.PLASTIC.21.FWGD HUS-532401812
...
10
RIVET BLIND HUS-532128415
...
11
BRACKET.SUPPORT.LH.21.FWGD HUS-532406573
...
12
BRACKET.SUPRT.RH.21.FWGD HUS-532410542
...
13
SCREW 14-20 X 5/8 HUS-817060410
...
14
BRACKET.ASM.HNDL.LT.21.FGD.HW HUS-532434513
...
15
BRACKET.ASM.HNDL.RT.21.FGD.HW HUS-532434512
...
16
SPRING.REAR.DOOR.EZ.21.LT HUS-532405417
...
17
SPRING.REAR.DOOR.EZ.21.RT HUS-532405418
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
20
SKIRT.REAR.21 FWGD.BLACK HUS-532413159
...
21
HINGE SCREW HUS-532088652
...
25
BOLT 3/8-16X1-1/8 HUS-532150406
...
26
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
27
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
28
Hardware HUS-596203801
...
30
ARM.ASM.AXLE.REAR.5/9.POS.BZP HUS-532413141
...
31
KNOB.DELUXE.GRAY HUS-532196401
...
32
SPRING.SELECTOR.EXTEN.5POS.BZP HUS-532401626
...
33
Hardware HUS-596040501
...
34
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
36
BOLT HUS-532184193
...
37
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
38
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
39
GSPW Hardware HUS-596039201
...
40
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
41
SCREW.HEX.WSH HUS-532192325
...
43
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
44
HOUSING.21.FWD.ORANGE.WALK Includes Key Numbers 10, 11, 12 and 45 HUS-532408989
...
45
DECAL.CUTFINGER.CE.02 HUS-581579101
...
46
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
47
21" WALK MOWER BLADE HUS-594893001
...
48
WASHER,HARDEN HUS-532851074
...
49
Washers HUS-596238701
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
57
BRACKET.UPSTOP HUS-532850733
...
58
SCREW HUS-532750634
...
59
DISCHARGE DEFLECTOR HUS-532175071
...
60
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
61
SPRING.TORSION HUS-532193000
...
62
ROD.HINGE.21 HUS-532175650
...
63
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
64
DOOR.MULCH.21.REAR.FWGD HUS-532185576
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
66
WASHER.FLAT.1/2 HUS-532088348
...
69
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
96
CLIP.CABLE.BLK HUS-532197991
...
xx
DECAL.CUTFINGER.CE.02 not shown HUS-581579101
...
xx
Owner's Manual, English / French HUS-532413698

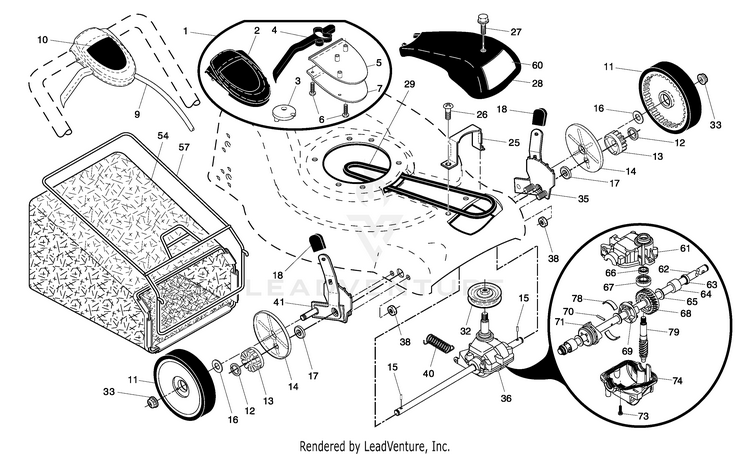

Repair Parts "B"

...
...
1
CONTROL.DR.AW.FWGD.GRY/BLACK HUS-532425580
...
2
COVER TOP AUTO WALK CONTROL HUS-532406260
...
3
PULLEY.CAM.DRIVE.CONTROL.EZ HUS-532406262
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
5
COVER BOTTOM AUTO WLK CONTROL HUS-532406261
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
9
CABLE ASSEMBLY, DRIVE HUS-532406259
...
10
DECAL, DRIVE HUS-532189378
...
11
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 HUS-532401274
...
12
E-RING 7/16 RE HUS-812000058
...
13
PINION.14.TEETH.FGD HUS-532403849
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
15
PAWL, DRIVE HUS-532404845
...
16
WASHER FLUT HUS-532067725
...
17
BEARING.SUPPORT.ASM HUS-587070202
...
18
KNOB.DELUXE.GRAY HUS-532196401
...
25
BRACKET.BELT.GUIDE.22+FGD.BZP HUS-532431711
...
26
SCREW HUS-532163409
...
27
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
28
COVER.DR.21.FWGD/B&S.GRAY HUS-532185715
...
29
BELT.DRIVE.FG HUS-532194149
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
35
KIT ADJUSTER ASM.438151. Includes Knob and Bearing HUS-532438485
...
36
TRANSMISSION.21.FGD.HT.VST HUS-532404833
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
40
SPRING HUS-532406558
...
41
KIT ADJUSTER ASM.438148 Includes Knob and Bearing HUS-532438486
...
54
GBAG.34710090.H-GREY MS498 HUS-580953406
...
57
FRAME.GBAG.21.FWGD HUS-532411950
...
60
DECAL DRIVE COVER HUS-532193557
...
61
CASE.UPPER.00254(SERVICE) HUS-532410726
...
62
SHAFT OUTPUT (12289) HUS-532410949
...
63
SEAL.OUTPUT.SHAFT HUS-532183508
...
64
BUSHING HUS-532183511
...
65
WASHER HUS-532183509
...
66
SEAL INPUT SHAFT HUS-532183514
...
67
BEARING HUS-532183506
...
68
GEAR 28 TEETH 36208 HUS-532410729
...
69
FIXED DOG CLUTCH HUS-532410732
...
70
PIN 3.50.337 - 33733 HUS-532412746
...
71
MOVEABLE DOG CLUTCH HUS-532410730
...
73
SCREW HUS-532183513
...
74
CASE.BOTTOM. HUS-532410734
...
78
SPRING LEAF HUS-532410731
...
79
SHAFT WORM HUS-532410727
