Husqvarna 62522 SH (96143000905) (2007-03) Walk Mower

Model: 62522 SH (96143000905) (2007-03)

Save Part Not Listed?
product name

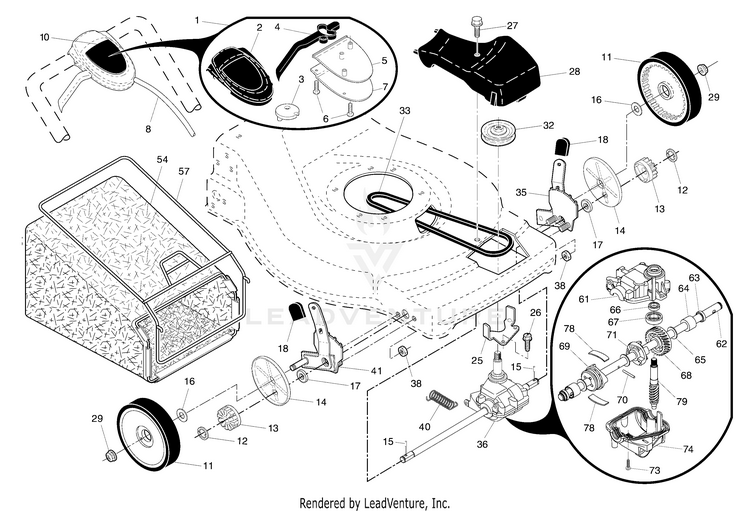

Drive Assembly

...
...
1
CONTROL.DR.AW.FWGD.GRY/BLACK Includes Cable HUS-532425580
...
2
COVER TOP AUTO WALK CONTROL HUS-532406260
...
3
PULLEY.CAM.DRIVE.CONTROL.EZ HUS-532406262
...
4
LEVER.SHORT.BLACK.EZ.WALK HUS-532425583
...
5
COVER BOTTOM AUTO WLK CONTROL HUS-532406261
...
6
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
7
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
8
CABLE ASSEMBLY, DRIVE HUS-532406259
...
10
DECAL, DRIVE HUS-532189378
...
11
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 HUS-532401274
...
12
E-RING 7/16 RE HUS-812000058
...
13
PINION.14.TEETH.FGD HUS-532403849
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
15
PAWL, DRIVE HUS-532404845
...
16
WASHER FLUT HUS-532067725
...
17
BEARING.SUPPORT.ASM HUS-587070202
...
18
KNOB.DELUXE.GRAY HUS-532196401
...
25
BRACKET.BELT.GUIDE.22+FGD.BZP HUS-532431711
...
26
SCREW HUS-532163409
...
27
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
28
COVER.DR.ASM.194407X498.CE HUS-532432666
...
29
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON HUS-532443262
...
33
BELT.DRIVE.FG HUS-532196857
...
35
KIT ADJUSTER ASM.438151. Includes Knob and Bearing HUS-532438485
...
36
TRANSMISSION.22.VS.FWGD HUS-532404834
...
38
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
40
SPRING HUS-532406558
...
41
KIT ADJUSTER ASM.438148 Includes Knob and Bearing HUS-532438486
...
54
GBAG.8471024T.SIL.HUSQ.BLU HUS-532410683
...
57
FRAME.GBAG.22.EZ.EMPTY.SC HUS-532411952
...
61
CASE.UPPER.00254(SERVICE) HUS-532410726
...
62
Shaft, Output HUS-532410728
...
63
SEAL.OUTPUT.SHAFT HUS-532183508
...
64
BUSHING HUS-532183511
...
65
WASHER HUS-532183509
...
66
SEAL INPUT SHAFT HUS-532183514
...
67
BEARING HUS-532183506
...
68
GEAR 28 TEETH 36208 HUS-532410729
...
69
FIXED DOG CLUTCH HUS-532410732
...
70
PIN 3.50.337 - 33733 HUS-532412746
...
71
MOVEABLE DOG CLUTCH HUS-532410730
...
73
SCREW HUS-532183513
...
74
CASE.BOTTOM. HUS-532410734
...
78
SPRING LEAF HUS-532410731
...
79
SHAFT WORM HUS-532410727

Handle & Deck Assembly

...
...
1
HANDLE.ASM.UP.OF/EZ.CR.GY.W/GR Includes Foam Grip HUS-583444201
...
2
CABLE.ENGINE BRAKE.MZR HUS-532183567
...
3
BRACKET.UPSTOP HUS-532850733
...
4
PLUG.MULCH.22RD HUS-532166649
...
5
WIRE TIE HUS-532007192
...
6
HANDLE.KNOB.BLACK HUS-532185577
...
7
SCREW HUS-532750634
...
8
BAIL.DSTRT.FL.AW.CREAS.ORANGE HUS-532197019
...
9
DOOR.REAR.22.PLASTIC.EZ.EMPT HUS-532401813
...
10
RIVET BLIND HUS-532128415
...
11
SCREW.HXTAP.10-24 HUS-532150050
...
12
SCREW HUS-532054583
...
14
PLATE.BACK.22.RD/VE/STD HUS-532195622
...
15
BAFFLE.SIDE.PNT.BLACK HUS-532410545
...
16
BAFFLE.DISCHRG.22RD.VE.N/SLOTS HUS-532176655
...
17
BAFFLE.REAR.HSG.ASM.QT.22.BLAC HUS-532140661
...
18
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
19
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
...
20
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
21
SPRING.LH.22.REAR.DOOR.EZ.EMPT HUS-532405421
...
24
SPRING.RH.22.REAR.DOOR.EZ. HUS-532405423
...
25
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
26
BOLT HUS-532184193
...
27
WHEEL.12X1.75.CF H3SPK.RAD3.TB HUS-585911002
...
28
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
29
WASHER.CURVED.CYLINDRICAL HUS-532401630
...
30
ARM.ASM.AXLE.5/9.POS.BZP HUS-532406582
...
31
KNOB.DELUXE.GRAY HUS-532196401
...
32
SPRING.SELECTOR.EXTEN.5POS.BZP HUS-532401626
...
33
DOOR.MULCH.22.REAR.FWGD.GREY HUS-532197029
...
34
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
35
WHEEL ADJUSTING BRACKET HUS-532700325
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
37
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
38
DEFLECTOR.CLIPPING.22.GREY HUS-532403819
...
39
BRACKET.ASM.HDL.LT.EZEM.22.BLA HUS-532195915
...
40
BRKT.ASM.HND/HW.RT.BLACK HUS-532195914
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
42
SPRING.TORSION HUS-532193000
...
43
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
44
HSG.22.TOR.LD.FGD.ORANGE Includes Key Numbers 14, 15 and 51 HUS-532402302
...
45
ROD.HINGE.21 HUS-532175650
...
46
KIT.BLADE.ADAPTOR.BELT.GUIDE. HUS-532443950
...
47
BLADE.22.MULCH.STANDARD HUS-532406713
...
48
WASHER,HARDEN HUS-532851074
...
49
Washers HUS-596238701
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
51
FRONT BAFFLE KIT HUS-532170031
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
53
SCREW 1/4X20 HUS-817600406
...
54
WASHER.FLAT.1/2 HUS-532088348
...
55
Nuts HUS-596322601
...
56
HINGE SCREW HUS-532088652
...
57
HAIRPIN COTTER HUS-532051793
...
58
HANDLE.LOWR.DLX.20RD.CLIP.BLAC HUS-532151590
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
60
BOLT HUS-874760612
...
61
Nuts HUS-596322601
...
62
KIT.SHIELD.DEBRIS.TORUS. HUS-532413032
...
63
SCREW.HEX.WSH HUS-532192325
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
69
CLIP.CABLE.BLK HUS-532197991
...
70
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) HUS-532182748
...
71
BRACKET.DEBRIS.SHIELD.BZP HUS-532188839
...
xx
DECAL.CUTFINGER.CE.02 not shown HUS-581579101
...
xx
Owner's Manual, English/French HUS-532410849
