Husqvarna 61 Chain Saw

Model: 61

Back To Assemblies

Save Part Not Listed?
product name

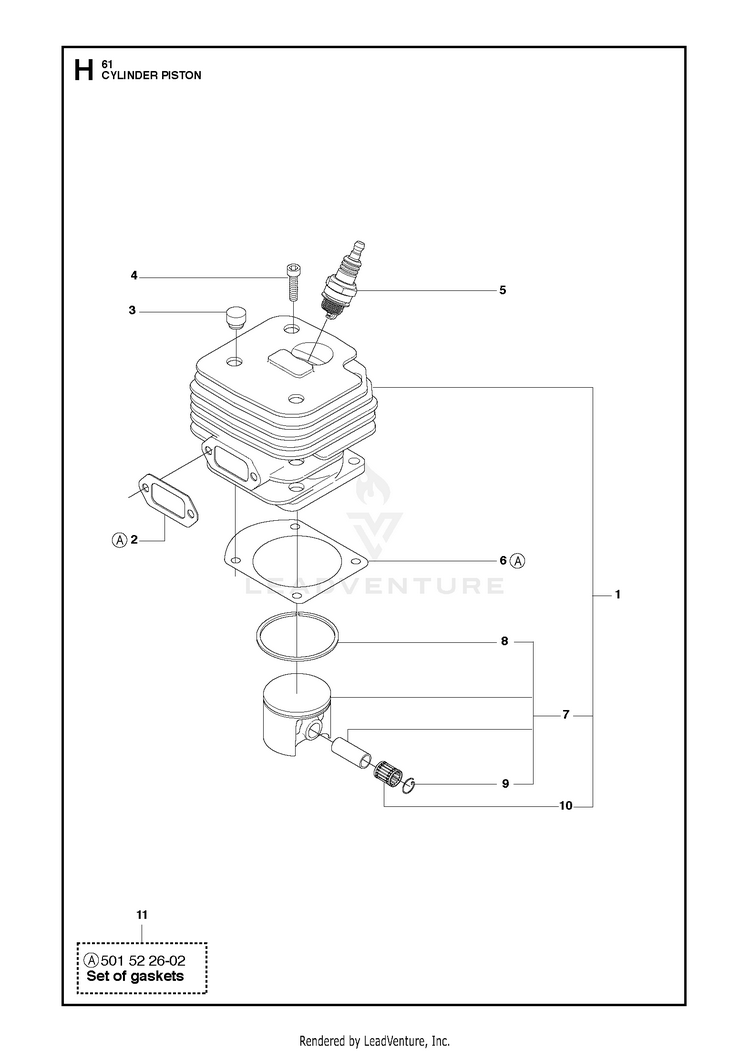

CYLINDER PISTON 2

...
...
1
CYLINDER ASSY HUS-544222802
...
9
WRIST PIN CLIP HUS-737431200
...
2
GASKET HUS-503405401
...
11
GASKET SET NLA A = Set of gaskets HUS-501522602
...
10
NEEDLE BEARING PISTON PIN 12X1 HUS-577572401
...
3
RUBBER BUMPER HUS-501515401
...
7
PISTON ASSY HUS-544223802
...
8
PISTON RING DIA 48 MM HUS-544224801
...
4
SCREW HUS-503216025
...
6
GASKET HUS-501512204
...
5
SPARK PLUG M14X1.25 NGK BPMR7A RCJ 7Y HUS-503235111
Schematic Image Zoomed
