Husqvarna 61 Chain Saw

Model: 61

Back To Assemblies

Save Part Not Listed?
product name

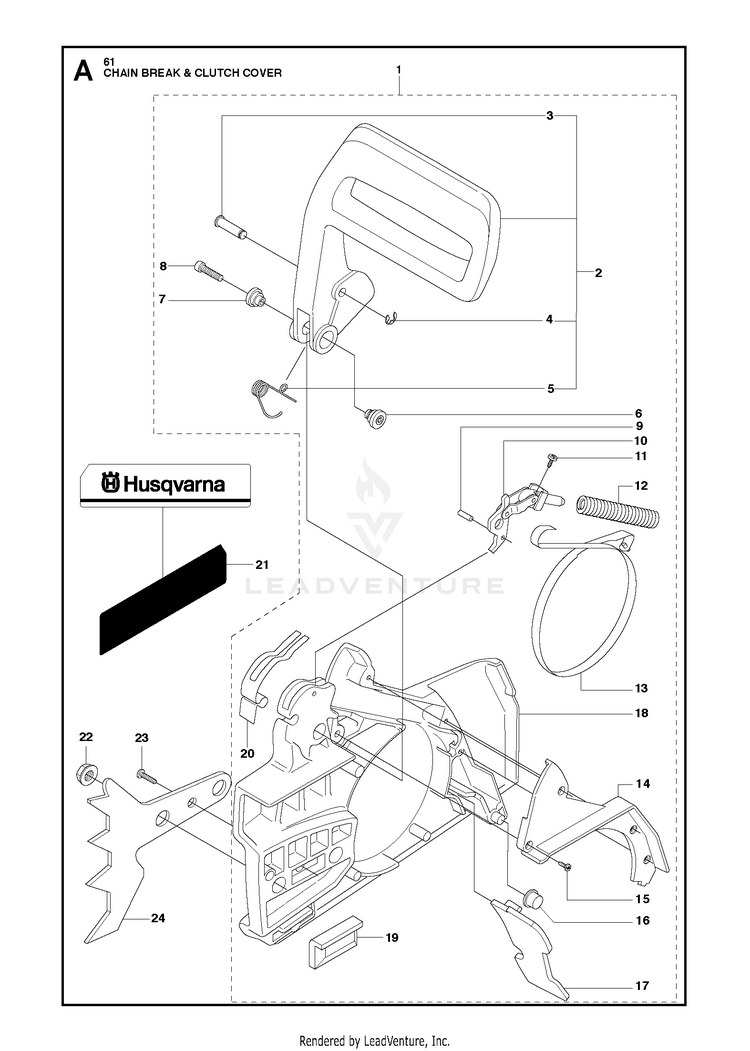

CHAIN BRAKE & CLUTCH COVER

...
...
17
PROTECTOR - up to s/n 1994502560. HUS-503573101
...
19
CHAIN GUIDE HUS-501517201
...
11
SCREW HUS-503212810
...
13
BRAKE BAND HUS-503704002
...
24
FELLING DOG HUS-503590701
...
13
BRAKE BAND - up to s/n 1994502560. HUS-503572201
...
10
KNEE LINK HUS-501875303
...
16
BUSHING HUS-503723101
...
6
PIVOT SLEEVE L HUS-503520801
...
23
SCREW MC6S 5X12 HUS-725532755
...
2
HANDGUARD HUS-503727401
...
18
CLUTCH COVER HUS-503704601
...
9
HARDENED PIN HUS-720123351
...
xx
SPIRAL PIN 4X12 - up to s/n 1994502560. HUS-721425250
...
10
KNEE-JOINT - up to s/n 1994502560 Blue. HUS-501875301
...
17
GUARD HUS-503730501
...
22
NUT M8 FLANGE HUS-503220001
...
8
SCREW HUS-503202616
...
4
E-RING 4 HUS-735310820
...
5
SPRING HUS-506164801
...
3
PIVOT PIN HUS-503802701
...
14
- up to s/n 1994502560. HUS-503573001
...
12
BRAKE SPRING HUS-503709902
...
1
CHAIN BRAKE HUS-503736601
...
20
SPRING HUS-501874701
...
21
DECAL HUS-503768101
...
7
PIVOT SLEEVE R HUS-501768001
...
14
COVER HUS-503704701
...
12
SPRING - up to s/n 1994502560. HUS-503465901
...
15
SCREW HUS-503212810
