Husqvarna 61 Chain Saw

Model: 61

Back To Assemblies

Save Part Not Listed?
product name

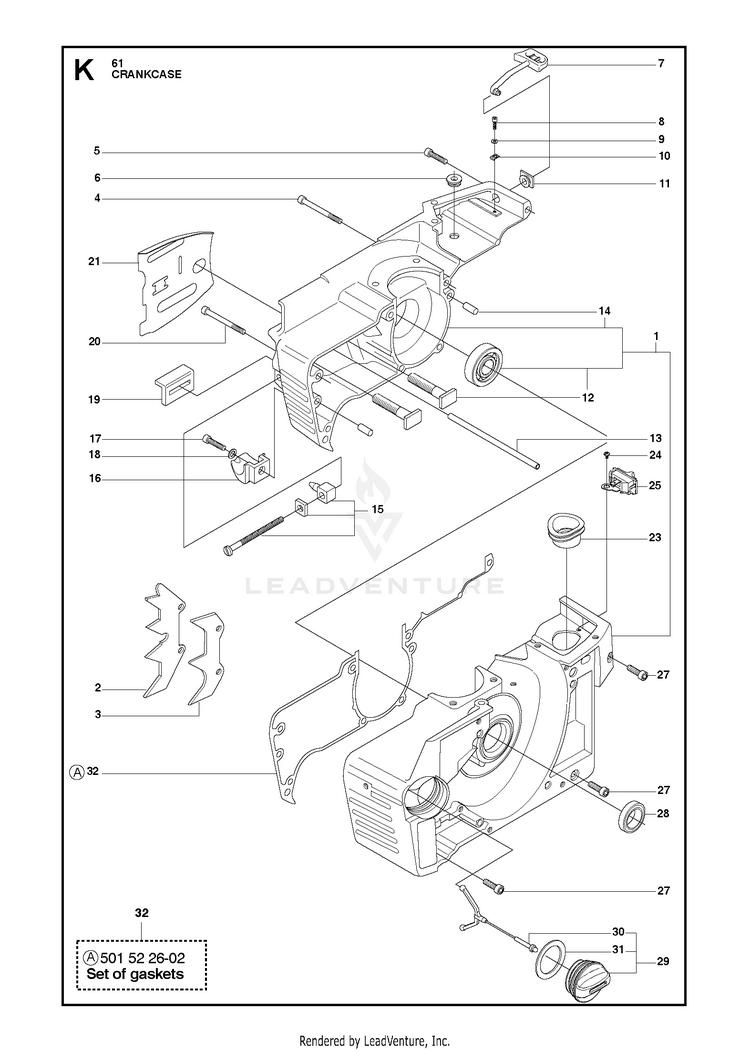

CRANKCASE

...
...
32
GASKET SET NLA A = Set of Gaskets HUS-501522602
...
13
HOSE - up to s/n 1993319999. HUS-501839301
...
19
CHAIN GUIDE HUS-501517201
...
14
Pins HUS-720130752
...
13
OIL TANK VENT From s/n 1993320001 - HUS-503668403
...
4
SCREW MC6S 5X35 HUS-725533755
...
25
SWITCH ON/OFF HUS-503717901
...
16
CHAIN CATCHER HUS-503535801
...
12
BOLT HUS-501815701
...
27
SCREW MC6S 5X12 HUS-725532755
...
13
SPIRAL PIN 3.5X18 - up to s/n 1993319999. HUS-721423250
...
1
CRANKCASE CPL HUS-501779901
...
30
TANK LOCK HUS-503578901
...
2
FELLING DOG HUS-503590801
...
17
SCREW MC6S 5X12 HUS-725532755
...
23
BELLOWS HUS-503445001
...
29
TANK CAP HUS-501626602
...
9
WASHER 4.2X9 HUS-503230001
...
3
FELLING DOG HUS-501528101
...
24
SCREW HUS-503212806
...
6
GROMMET HUS-503697601
...
15
CHAIN TENSIONER HUS-501537101
...
18
WASHER HUS-503230042
...
21
PROTECTION PLATE HUS-501814801
...
8
SCREW MC6S 4X16 HUS-725529356
...
7
CHOKE CONTROL HUS-501527902
...
28
SEALING RING HUS-503260204
...
31
OILCAP GASKET HUS-501626801
...
11
BUSHING HUS-501527801
...
20
SCREW MC6S 5X50 HUS-725534155
...
5
SCREW ITXSCM HUS-525824902
...
10
PLATE HUS-503446401
