Husqvarna 61 (1981-02) Chain Saw

Model: 61 (1981-02)

Back To Assemblies

Save Part Not Listed?
product name

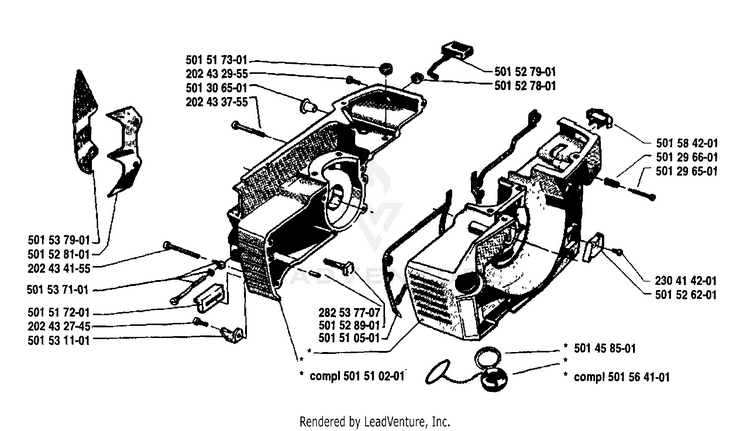

Crankcase Assembly

...
...
501517301
HUS-501517301
...
202432955
SCREW MC6S 5X16 HUS-725532955
...
501306501
Plug HUS-501306501
...
202433755
SCREW MC6S 5X35 HUS-725533755
...
501537901
HUS-501537901
...
501528101
FELLING DOG HUS-501528101
...
202434155
HUS-202434155
...
501537101
CHAIN TENSIONER HUS-501537101
...
501517201
CHAIN GUIDE HUS-501517201
...
501527901
CHOKE CONTROL HUS-501527902
...
501527801
BUSHING HUS-501527801
...
501584201
START/STOP SWITCH HUS-503718201
...
501296601
SPRING HUS-501296601
...
501296501
SCREW HUS-501296501
...
230414201
HUS-230414201
...
501526201
HUS-501526201
...
202432745
HUS-202432745
...
501531101
HUS-501531101
...
282537707
HUS-282537707
...
501528901
HUS-501528901
...
501510501
GASKET, CRANCASE HUS-501510502
...
501510201
HUS-501510201
...
501458501
GASKET HUS-501458501
...
501564101
TANK CAP HUS-501564101
