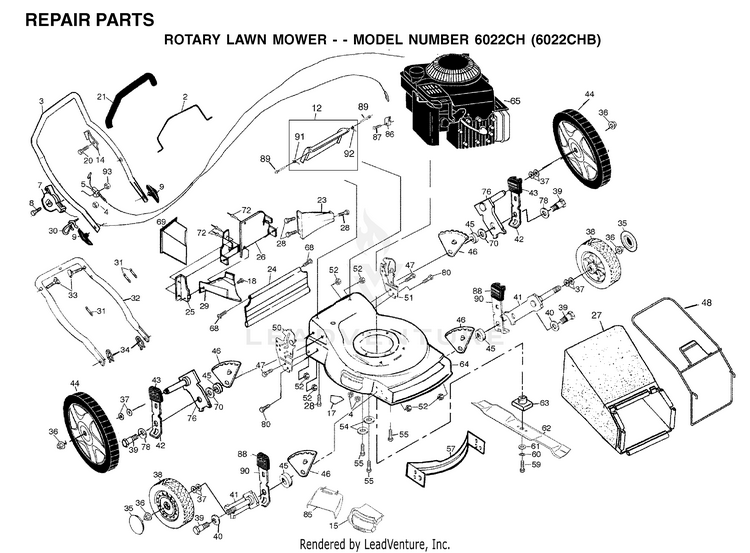

Husqvarna 6022 CH - 954222701 (2001-10) Walk Behind Mower

Model: 6022 CH - 954222701 (2001-10)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
52
Nuts HUS-596322601
...
26
BACK PLATE HUS-532166800
...
34
HAIRPIN COTTER HUS-532051793
...
91
DOOR SPRING RH HUS-532170939
...
89
BOLT HUS-532184193
...
9
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
7
THROTTLE CONTROL HUS-532700637
...
88
KNOB HUS-532087877
...
31
WIRE TIE HUS-532007192
...
60
Washers HUS-596238701
...
17
DECAL.CUTFINGER.CE.02 HUS-581579101
...
45
SPACER.HEIGHT.ADJUSTER HUS-532401629
...
87
SCREW.HEX.HEAD.WASHER.10-16 HUS-532083816
...
93
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
54
WASHER.ENGINE.BZP HUS-532125078
...
47
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
70
WASHER.FLAT.1/2 HUS-532088348
...
33
KIT.KNOB.HANDLE.SERVICE HUS-532183724
...
- -
WARNING DECAL HUS-530402152
...
63
BLADE ADAPTOR HUS-532851514
...
25
SIDE BAFFLE HUS-532138860
...
18
SCREW.HXTAP.10-24 HUS-532150050
...
55
BOLT 3/8-16X1-1/8 HUS-532150406
...
29
BAFFLE, DISCHARGE HUS-532176041
...
68
HINGE SCREW HUS-532088652
...
61
WASHER,HARDEN HUS-532851074
...
32
HANDLE.LOWER.21.FWGD.BLACK HUS-532175245
...
80
BOLT HUS-874760612
...
69
PLUG.MULCH.22RD HUS-532166649
...
40
WASHER.BELLEVILLE (3 2 LB) HUS-532062335
...
14
BRACKET.UPSTOP HUS-532850733
...
92
DOOR SPRING LH HUS-532170938
...
35
CAP.HUB.BLACK.WALK HUS-532077400
...
59
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
8
SCREW.PAN.HEAD HUS-532158755
...
28
SCREW HUS-532054583
...
5
CABLE.MZR.51.RT.SP./PU. HUS-532130861
...
12
KIT.DOOR.ASM.REAR.PLAZ.22 HUS-532193679
...
21
GRIP.HANDLE.FOAM.438MM HUS-585161003
...
38
WHEEL.8X2.PR.LP.RAD.GREY HUS-532750550
...
62
BLADE 22" HUS-532141114
...
20
SCREW HUS-817021008
...
3
HANDLE, UPPER DLX COMF. (GRIP) HUS-532167163
...
4
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
90
SPRING.SELECTOR.5POS.BZP HUS-532401621
...
36
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
72
RIVET BLIND HUS-532128415
...
2
CONTROL BAR HUS-532176573
...
46
WHEEL ADJUSTING BRACKET HUS-532700325
...
48
CATCHER FRAME HUS-532169931
...
37
KIT.O-RING/WASHER HUS-532428450
...
39
BOLT SHOULDER 3/8 -16X1 HUS-532174719
...
41
ARM.AXLE.ASM.BZP HUS-532145935
...
44
WHEEL.14X2.PR.SP.RAD.GY HUS-532752063
...
86
CABLE CLAMP(ENGINE) HUS-532111190
...
24
SKIRT.REAR.22RD/SD.FO/VE HUS-532413160
...
23
REAR BAFFLE HUS-532133040
...
30
KIT.ROPE.GUIDE.T-KNOB HUS-586122501
