Husqvarna 585 Chain Saw

Model: 585

Back To Assemblies

Save Part Not Listed?
product name

FUEL TANK

...
...
16
WEAR PROTECTION HUS-593257001
...
12
FUEL HOSE FUEL TANK VENTILATI HUS-593976501
...
17
ANTIVIBRATION ELEMENT REAR HUS-593255603
...
2
FUEL HOSE ASSY FUEL HOSE ASSY HUS-529578202
...
3
COVER HUS-537205501
...
1
FUEL HOSE PURGE OUT HUS-593976401
...
11
FUEL FILTER 18-40 µm (Blue) HUS-503443203
...
18
SCREW HUS-525798103
...
14
SCREW CITXPANT HUS-525887402
...
4
FUEL TANK ASSY 90 CC SPARE PAR HUS-597960301
...
5
THROTTLE CABLE ASSY HUS-593246301
...
8
THROTTLE LOCK HUS-537208401
...
9
THROTTLE TRIGGER HUS-537208301
...
22
SEALING HUS-589241101
...
7
SPRING HUS-537209801
...
6
LEVER HUS-537208501
...
11
NEEDS DESCRIPTION 18-40 µm (Blue) Mega pack (100 pcs) HUS-503443205
...
10
PIN HUS-720182520
...
23
TANK CAP ASSY HUS-522620003
...
13
TANK VENT HUS-501152903
...
15
DEFLECTION LIMITER HUS-523085501
...
24
LABEL HUS-582794105
...
20
LATERAL SUPPORT HUS-501007601
...
19
ANTIVIBRATION ELEMENT FRONT HUS-593255501
...
21
TANK LOCK HUS-503578901

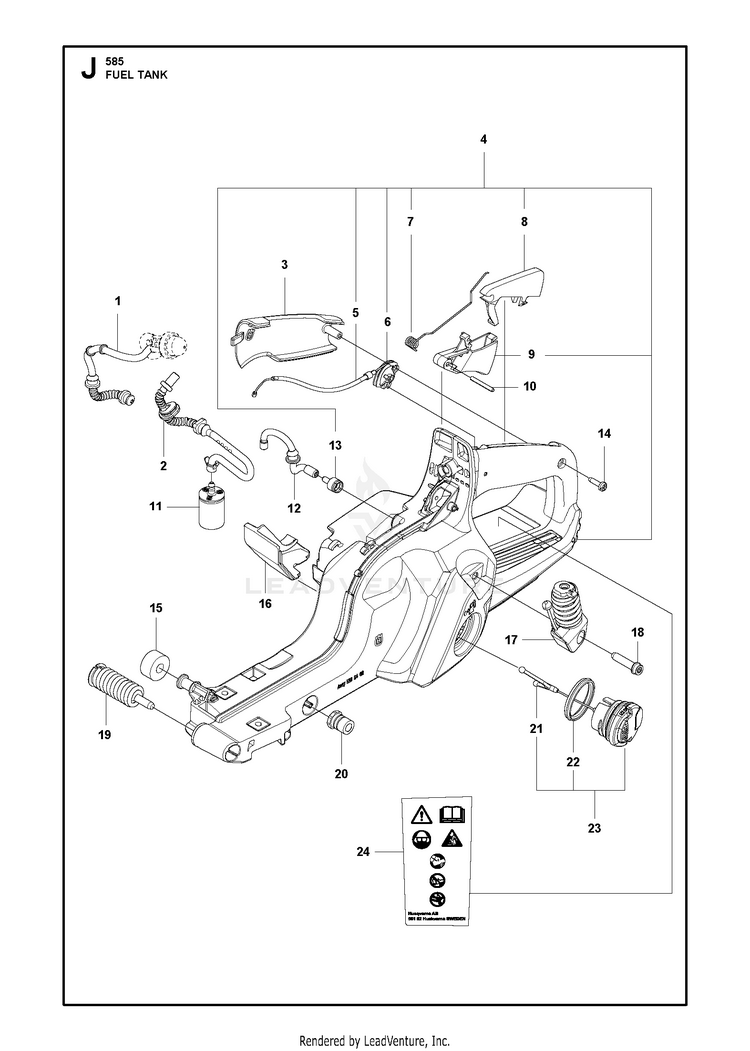

Schematic Image Zoomed
