Husqvarna 585 Chain Saw

Model: 585

Back To Assemblies

Save Part Not Listed?
product name

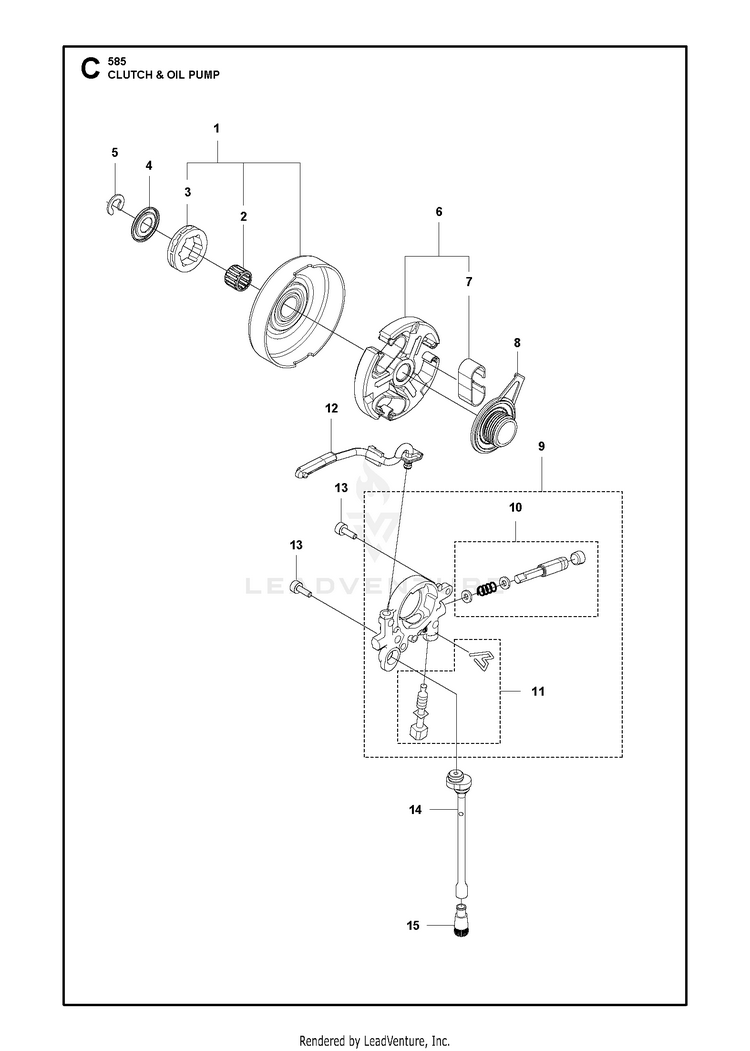

CLUTCH & OIL PUMP

...
...
14
HOSES HUS-588404702
...
1
CLUTCH DRUM ASSY KIT SPARE PAR HUS-598878501
...
12
OIL PRESSURE HOSE OIL PRESSURE HUS-576987402
...
8
PUMP PINION ASSY HUS-582270105
...
15
OIL SCREEN HUS-501544102
...
4
WASHER HUS-503752401
...
10
PUMP PISTON KIT H585/H592 HUS-590119702
...
6
CLUTCH ASSY HUS-599231002
...
7
CLUTCH SPRING HUS-503975102
...
5
RETAINING RING HUS-503272101
...
13
SCREW ITXSCM M4X15 T27 12.9 T HUS-526818102
...
11
OIL PUMP PIN SCREW KIT H565/H5 HUS-590120101
...
9
OIL PUMP ASSY GREY HUS-589028404
...
2
CLUTCH DRUM BEARING HUS-503432001
...
3
68210/RIM HUS-640200214
