product name

Husqvarna 585 Chain Saw

Model: 585

Back To Assemblies

Save Part Not Listed?
product name

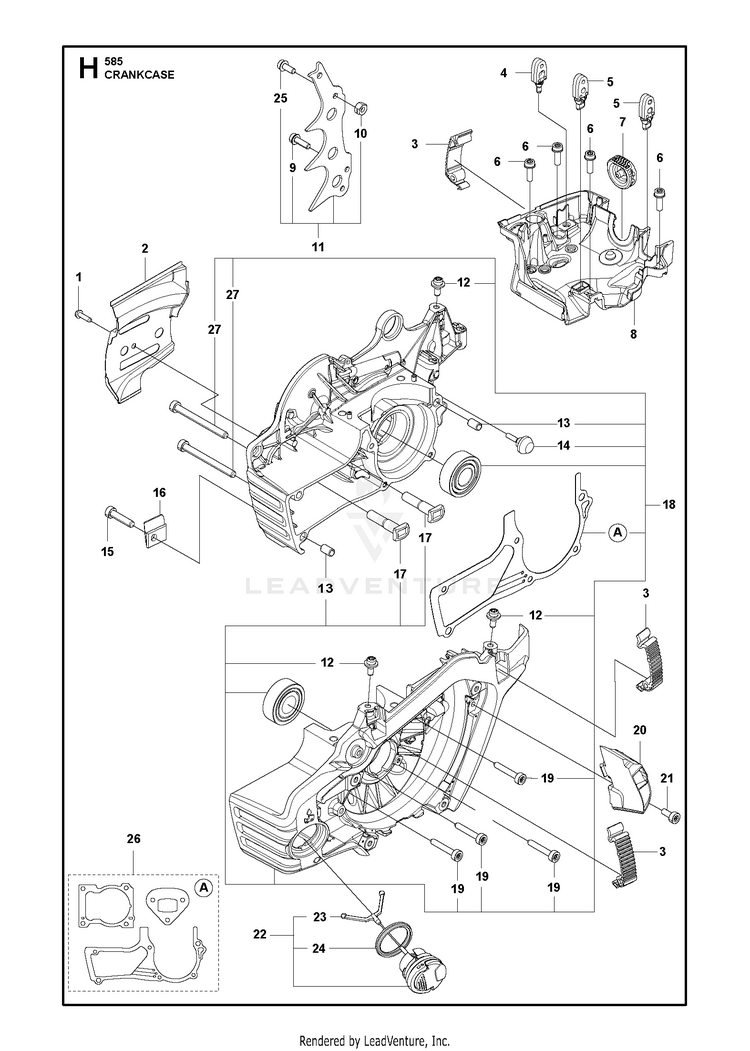

CRANKCASE

...
...
5
DAMPER INLET SYSTEM HUS-595013901
...
25
SCREW HUS-525755101
...
18
CRANKCASE KIT 90CC ANTIVIB HUS-597960806
...
2
CHAIN GUIDE PLATE BAR MOUNT HUS-575616301
...
22
TANK CAP ASSY HUS-522620003
...
12
SCREW ITXSCM WASHER M5X12 T27 HUS-525824401
...
13
GUIDE BUSHING HUS-593806001
...
8
CARBURETTOR AREA BASE ASSY HUS-599780901
...
26
GASKET KIT 90 CC SPARE PART HUS-597939001
...
9
SCREW KIT 4 PACK HUS-575532001
...
17
BOLT HUS-537051301
...
23
TANK LOCK HUS-503578901
...
21
SCREW ITXSCM HUS-574353505
...
7
GROMMET THROTTLE WIRE HUS-595845301
...
6
SCREW HUS-575885703
...
11
SPIKE KIT INNER NON - WRAP H58 HUS-529536901
...
4
DAMPNER HUS-597909701
...
15
SCREW HUS-544218401
...
27
SCREWS HUS-503215375
...
20
AIR NOZZLE HUS-593235101
...
14
BUFFER HUS-503846101
...
1
SCREW HUS-526221801
...
19
SCREW HUS-503215330
...
3
SNAP LOCKING GREY. ONLY USE F Only use for Magnesium or Aluminum Crankcase HUS-595303003
...
10
NUT HUS-503222401
...
16
CHAIN CATCHER HUS-537377902
...
24
SEALING HUS-589241101
